- Page 1 Simple Logger ® AmpFlex™ Current Probes AL24-2500 / AL36-2500 AL24-5000 / AL36-5000 USER MANUAL...
- Page 2 Limited Warranty The AmpFlex™ Current Probes are warranted to the owner for a period of one year from the date of original purchase against defects in ® manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to ®...
-
Page 3: Table Of Contents
Table of Contents Warning ....................3 International Electrical Symbols .............. 3 Receiving Your Shipment................ 4 Packaging....................4 Specifications ..................4 Features ....................6 Indicators and Buttons ..............6 Inputs and Outputs ................6 Range Selection ................6 Battery Installation ................7 Operation.................... -
Page 4: Warning
® Simple Logger AmpFlex™ Current Probes Warning These safety warnings are provided to ensure the safety of personnel and proper operation of the instrument. • Read the instruction manual completely and follow all the safety information before attempting to use or service this instrument. •... -
Page 5: Receiving Your Shipment
® Simple Logger AmpFlex™ Current Probes Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. - Page 6 ® Simple Logger AmpFlex™ Current Probes Sample Rate: 4096/hr max. Data Storage: 8192 readings Data Storage Technique: (TXR™) Time Extension Recording™ Power: 9V Alkaline NEDA 1604, 6JF22, 6LR61 Battery Life Recording: 6 months continuous recording @ 25°C Output: RS-232 via 5-pin circular connector; 1200 Bps INDICATORS Operation Mode Indicator: One Red LED •...
-
Page 7: Features

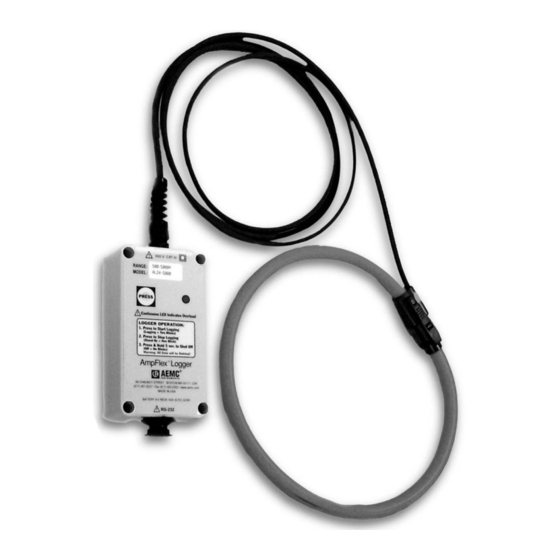

® Simple Logger AmpFlex™ Current Probes Features 00 V CAT III RANGE: MODEL: (1) Start/Stop Button PRESS Continuous LED Indicates Overload (2) Flexible Sensor Input OGGER OPERATION: . Press to Start Logging (Logging = Two Blinks) 2. Press to Stop Logging (3) Operation Mode Indicator (Stand-By = One Blink) 3. -
Page 8: Battery Installation
® Simple Logger AmpFlex™ Current Probes Battery Installation Under normal conditions, the battery will last up to 6 months of continuous recording unless the logger is restarted very frequently. In the OFF mode, the logger puts almost no load on the battery. Use the OFF mode when the logger is not in use. -
Page 9: Software
® Simple Logger AmpFlex™ Current Probes SOFTWARE This model requires software version 6.11 or higher. MINIMUM COMPUTER REQUIREMENTS Processor: 486 or higher RAM Storage: 8MB Hard Drive Space: 8MB for application, approx. 400K for each stored file ® Environment: Windows 98, 2000, ME, NT and XP Port Access: (1) 9-pin serial port and (1) parallel port for printer support INSTALLATION... -
Page 10: Using The Software
® Simple Logger AmpFlex™ Current Probes USING THE SOFTWARE Launch the software and connect the RS-232 cable from your computer to the logger. Note: The first time the program is launched you will need to select a language. Select “Port” from the menu bar and select the Com port you will be using (see your computer manual). -
Page 11: Repair And Calibration
® Simple Logger AmpFlex™ Current Probes Repair and Calibration To ensure that your instrument meets factory specifications, we recommend that it be submitted to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. For instrument repair and calibration: You must contact our Service Center for a Customer Service Authorization number (CSA#). - Page 12 ® ® Chauvin Arnoux , Inc. d.b.a AEMC Instruments 15 Faraday Drive • Dover, NH 03820 www.aemc.com 99-MAN 100208 v9 01/05...
