Summary of Contents for AEMC instruments 1510

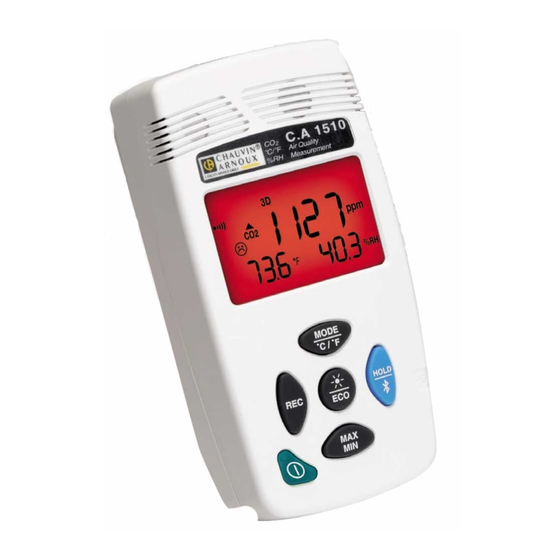

- Page 1 User Manual ENGLISH Air Quality Logger Model 1510 ENVIRONMENTAL TESTERS WITH AEMC INSTRUMENTS ®...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 Refer to our repair and calibration section at www.aemc.com/calibration. Serial #: Catalog #: 2138.08 / 2138.09 Model #: 1510 Please fill in the appropriate date as indicated: Date Received: Date Calibration Due: Chauvin Arnoux , Inc.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ..............6 1.1 PRECAUTIONS FOR USE ............7 1.2 RECEIVING YOUR SHIPMENT ..........7 1.3 ORDERING INFORMATION ............. 7 1.3.1 Accessories ................ 8 1.3.2 Replacement Parts ............. 8 2. PRODUCT FEATURES ............9 2.1 INSTRUMENT REAR PANEL & BATTERY INSTALLATION ... 9 2.2 INSTRUMENT FRONT PANEL .......... - Page 5 5. SPECIFICATIONS ............. 24 5.1. REFERENCE CONDITIONS ..........24 5.2. MEASUREMENT CHARACTERISTICS ....... 24 5.2.1. CO Measurements ............24 5.2.2. Influences on the Measurements of CO 2 ........24 5.2.3. Temperature Measurements ........... 24 5.2.4. Humidity Measurement ........... 25 5.2.5. Influence of the temperature on the relative humidity measurement ................
-
Page 6: Introduction
Example: hardwired equipment in fixed installation and circuit breakers. CAT II corresponds to measurements performed on circuits directly connected to the electrical distribution system. Example: measurements on household appliances and portable tools. Air Quality Logger Model 1510 - User Manual... -
Page 7: Precautions For Use
Air Quality Logger Model 1015 (white) ........Cat. #2138.09 Both models include soft carrying pouch, (2) AA batteries, 6 ft USB cable, quick start guide, USB drive with DataView software and user manual. ® Air Quality Logger Model 1510 - User Manual... -
Page 8: Accessories
Wall Mount for Models 1520 & L452 (gray or black) ....Cat. #2138.61 Desk Stand for Model 1510 (white) ........... Cat. #2126.62 Calibration Kit for Model 1510 (includes calibration software CD) .. Cat. #2138.63 Metal Carrying Case ..............Cat. #2138.65 Wall Mount for Model 1510 (white) .......... -
Page 9: Product Features
1. Press the tab of the battery compartment cover and lift it clear. 2. Remove the battery compartment cover. 3. Insert the new batteries, ensuring correct polarity. 4. Close the battery compartment cover; ensuring it is completely and correctly. closed. Air Quality Logger Model 1510 - User Manual... -
Page 10: Instrument Front Panel
Data Logger Control Panel software can be ® installed on a computer to allow you to configure the instrument, view measurements in real time, download data from the instrument, and create reports. Air Quality Logger Model 1510 - User Manual... -
Page 11: Turning The Instrument On/Off
Short press enters MIN MAX mode; measurement values ■ continue to be displayed. Second press displays the maximum value. Third press displays minimum value. Fourth press returns to normal measurement operation. Long press exits MIN MAX mode. ■ Air Quality Logger Model 1510 - User Manual... -
Page 12: Display
Blinking: Batteries low ■ Steady: Indicator of external power supply by connection of ■ the mains adapter or of the USB connection. High threshold passed Low threshold passed Air quality/comfort level indicator Air Quality Logger Model 1510 - User Manual... -
Page 13: Operation
In internal software versions 4.14 and above, these thresholds can be programmed. To change them, simply modify the CO2limit.csv file in the memory of the device. Connect the Model 1510 to a PC using a USB cable (see § 4.2). -
Page 14: And 3D Modes Activation
The symbol 1D appears on the display. 2. Press a second time to activate 3D mode. The symbol 3D appears on the display. 3. Press a third time to return to normal operation. Air Quality Logger Model 1510 - User Manual... -
Page 15: Visible And Audible Warnings
Buzzer sounds (if enabled). Backlight blinks red NOTE: Backlight OFF in ECO mode NOTE: For 1D and 3D modes, if the buzzer is active it will sound intermittently when is displayed. Air Quality Logger Model 1510 - User Manual... -
Page 16: Eco (Energy Saving) Mode
Dry-bulb temperature (° C) 3.4 ECO (ENERGY SAVING) MODE ECO mode saves energy when the Model 1510 measures air quality over a long period. The backlight and the buzzer are deactivated, and is measured only once every 10 minutes. This saves the batteries. -
Page 17: P_Rec (Programmed Recording) Mode
The symbol MIN MAX appears on the display. 2. Press a second time to display maximum and minimum measurements for CO 3. Press a third time to display maximum and minimum measurements for temperature. Air Quality Logger Model 1510 - User Manual... -
Page 18: Hold Function
1. Press to activate HOLD. The symbol HOLD appears and the current measurement remains on the screen. 2. Press a second time to return to normal measurement display. Air Quality Logger Model 1510 - User Manual... -
Page 19: M_Rec (Manual Recording) Function
2. Long-press REC a second time to stop recording. 3.9. BACKLIGHT Press to turn ON the backlight. The backlight automatically turns OFF after 10 seconds. NOTE: The backlight function is disabled in ECO mode. Air Quality Logger Model 1510 - User Manual... -
Page 20: Alarm Buzzer
3.11.2. Err (Error) Symbol If an Err error is displayed, turn the instrument OFF and back ON. If the error persists, the instrument must be sent in for repair (see § 6.3 Repair and Calibration). Air Quality Logger Model 1510 - User Manual... -
Page 21: Mem_Full (Memory Full) Symbol
1. Connect the instrument to a computer via the USB cable. 2. Open the computer’s file system. 3. Locate and open the folder named CA1510. 4. Delete any unnecessary files to free memory space. Air Quality Logger Model 1510 - User Manual... -
Page 22: Dataview
2. Turn ON the instrument. If this is the first time this instrument has been connected to this computer, drivers will be installed. Wait for this to finish before proceeding with step 3 below. Air Quality Logger Model 1510 - User Manual... - Page 23 Network folder in the left side of the Control Panel. A green check mark appears next to the name indicating it is currently connected. For instructions about using DataView with the instrument, consult the ® Data Logger Control Panel Help system. Air Quality Logger Model 1510 - User Manual...
-
Page 24: Specifications
Influence of relative ±0.5 °C ± R from (10 to 40) % RH humidity Outside this range: ±0.032 x (T – 25 °C) ± R Resolution (R): 0.1 °C or 0.1 °F Air Quality Logger Model 1510 - User Manual... -
Page 25: Humidity Measurement
5 days between (68 to 86) °F (20 and 30) °C and (40 and 75) % RH Rate of increase of < 0.5 % RH/year intrinsic uncertainty: 5.2.5. Influence of the temperature on the relative humidity measurement Air Quality Logger Model 1510 - User Manual... -
Page 26: Measurement Modes
Operating range: (14 to 140) °F (-10 to 60) °C and (5 to 95) % RH Range in storage (without battery): (-4 to 140) °F (-20 to 60) °C Altitude: < 2000 m Air Quality Logger Model 1510 - User Manual... -
Page 27: Mechanical Characteristics
5.8. COMPLIANCE WITH INTERNATIONAL STANDARDS Compliant with IEC61010-1 safety standard for voltages of 50 V in CAT II. 5.9. ELECTROMAGNETIC COMPATIBILITY Emissions and immunity in an industrial setting compliant with IEC 61326-1. Air Quality Logger Model 1510 - User Manual... -
Page 28: Maintenance
When the symbol is empty, all the batteries must be replaced (see § 2.1). NOTE: Spent batteries must not be treated as ordinary household waste. Take them to an appropriate recycling facility. Air Quality Logger Model 1510 - User Manual... -
Page 29: Repair And Calibration
(603) 742-2346 E-mail: repair@aemc.com (Or contact your authorized distributor.) Contact us for the costs for repair, standard calibration, and calibration traceable to N.I.S.T. NOTE: You must obtain a CSA# before returning any instrument. Air Quality Logger Model 1510 - User Manual... -
Page 30: Technical Assistance
AEMC Instruments will repair ® or replace the faulty material at our discretion. www.aemc.com/warranty.html REGISTER ONLINE AT: Air Quality Logger Model 1510 - User Manual... -
Page 31: Warranty Repairs
Phone: (800) 945-2362 (Ext. 360) / (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. Air Quality Logger Model 1510 - User Manual... - Page 32 06/23 99-MAN 100460 v07 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • (800) 343-1391 • Fax: (603) 742-2346 www.aemc.com © 2018 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ® ®...
