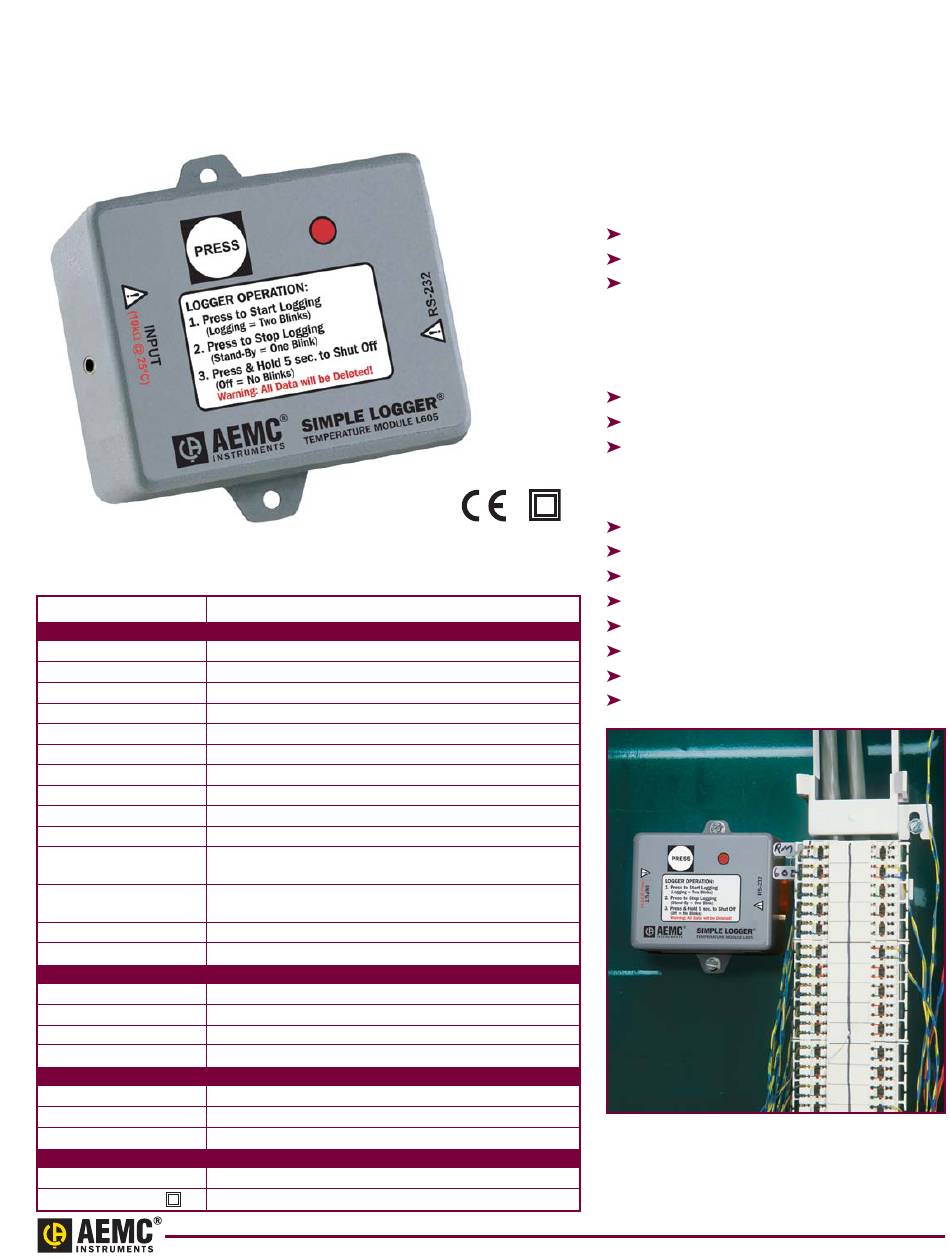

THERMISTOR
SIMPLE LOGGER
Model L605
SPECIFICATIONS
MODEL
ELECTRICAL
Number of Channels
Measurement Range
Input Impedance
Input Connection
Resolution
Accuracy
Sample Rate
4096/hr max, decreases by 50% each time memory is full
Storage Technique
Data Storage
Output
Indicators
Controls
Power Source
Battery Life
MECHANICAL
Dimensions
Weight
Case Material
Mounting
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
SAFETY
Safety Rating
Double Insulation
Technical Assistance (800) 343-1391
®
Model L605
L605
One
Temperature °F and °C
Thermistor type 10KΩ @ 77°F (25°C)
In-line 3.5mm connector
8 bit
1% of Reading ± 0.25°C
Time Extension Recording
8192 readings
RS-232 via DB9 connector
Red LED double flashes in LOGGING, single flashes in
STANDBY, and is off in OFF mode
One button used to start and stop recording sessions
and to turn the data logger on and off
9V Alkaline battery
Up to one year of recording @ 77°F (25°C)
2.88 x 2.32 x 1.62" (73 x 59 x 41mm)
5 oz (140g) including battery
Polystyrene UL VO
Base plate mounting holes or Velcro
-4° to 158°F (-20° to 70°C)
-4° to 174°F (-20° to 80°C)
5 to 95% non-condensing
EN 61010, 30V Cat. III
Yes
The Simple Logger
Model L605 is a single channel, low cost
data logger that requires no user setup. It
is directly compatible with industry standard
10kΩ thermistor probes. The Model L605
has both an internal and external thermistor
with a measurement range of -4° to 212°F
(-20° to 100°C).
FEATURES
(Internal)
-4° to 158°F (-20° to 70°C)
(External)
-4° to 212°F (-20° to 100°C)
APPLICATIONS
(TXR
)
®
pads
Model L605 monitoring the temperature in a
communications cabinet
®
Thermistor Logger
Internal or external thermistor
Thermistor type 10KΩ @ 77°F (25°C)
Measurement Range:
RS-232 output
One button operation
Accuracy: ±1% of Reading + 0.25°C
Ambient temperature monitoring
HVAC troubleshooting
Computer room monitoring
Food storage
Wave soldering temperature profiling
Process control monitoring
Refrigerated freight
And many more
