  • Page 1 User Manual ENGLISH AmpFlex ® Flexible AC Current Probe CURRENT MEASUREMENT PROBES WITH AEMC INSTRUMENTS ®...
  • Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
  • Page 3 Statement of Compliance Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® certifies that this instrument has been calibrated using standards and instruments traceable to international standards. We guarantee that at the time of shipping your instrument has met the instrument’s published specifications.
  • Page 4: Table Of Contents

    2.3 FEATURES ................. 9 2.4 ACCESSORIES ................9 2.5 STANDARD MODELS ............. 10 3. OPERATION ..............11 3.1 MAKING MEASUREMENTS WITH THE AMPFLEX ..11 ® 3.2 TIPS FOR MAKING PRECISE MEASUREMENTS ....12 3.3 TYPICAL RESPONSE CURVES ..........15 4.
  • Page 5: Introduction

    1. INTRODUCTION Instruments AmpFlex Flexible AC Thank you for purchasing an AEMC ® ® Current Probe. For the best results from your instrument and for your safety, you must read the enclosed operating instructions carefully and comply with the precautions for use.
  • Page 6: Precautions For Use

    ■ Read the safety specifications section prior to using the current probe. Never exceed the max voltage ratings given. Safety is the responsibility of the operator. The AmpFlex must be used only ■ ®...
  • Page 7: Product Features

    2. PRODUCT FEATURES 2.1 DESCRIPTION The AmpFlex is a flexible AC current transformer composed of a flexible ® sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes could not be used. In particular, it can be installed in tight spaces, around breaker panels, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes.
  • Page 8: Ampflex

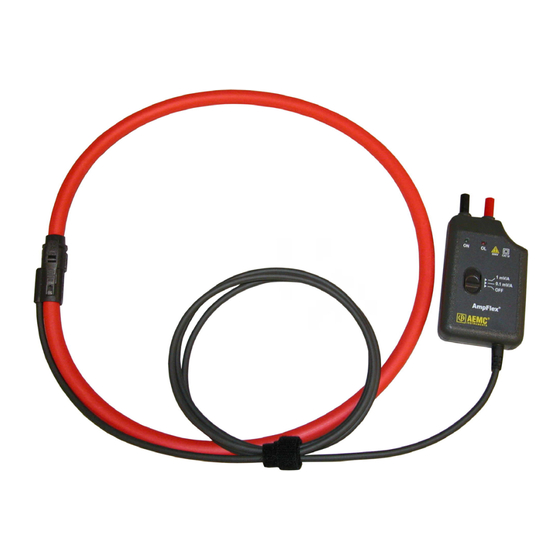

    2.2 AMPFLEX ® Figure 1 Positive: Red Banana Plug (+). Common: Black Banana Plug (-). Power ON Indicator (Green LED). Overload Indicator (Red LED). Range Selection Switch. AmpFlex Connector/Latch. ® Flexible Sensor (Diameter 0.5 in, 12.5 mm). Lead from Sensor to Module (6.5 ft, 2 m).
  • Page 9: Features

    Excellent linearity. ■ Lightweight. 2.4 ACCESSORIES Banana (Female) / BNC (Male) Adapter ........Cat. # 2118.46 For connection of the AmpFlex to SLII Models L101, L102, L562, ® BNC terminals on scopes and other displaying instruments. AmpFlex Flexible AC Current Probes - User Manual...
  • Page 10: Standard Models

    1/0.1 mV/A 2113.35 (910 mm) (290 mm) All AmpFlex models are designed to be used with recorders or power analyzers ® with a voltage AC input. A scale factor may need to be entered into the recorder to display the exact value.
  • Page 11: Operation

    Connect the electronic module to the AC Volt range of your Digital Multi-Meter ■ (DMM) or measuring instrument. Select the appropriate module output voltage range. If the current magnitude is unknown, and if AmpFlex has two ranges, ® select the lowest mV/A output setting.
  • Page 12: Tips For Making Precise Measurements

    ■ ® (see figure 2). ■ To increase sensitivity or measure on low currents, the AmpFlex may be ® wrapped several times around the conductor. Divide your reading by the number of turns for the actual measurement (see Figure 4).
  • Page 13 ■ The AmpFlex may be doubled around the conductor to be measured to ® double the output (see Figures 3 and 4 to show the different values on a DMM while measuring 250 Aac). One turn around a conductor carrying 250 A...
  • Page 14 Double the turns to double the output in low-current applications or for higher sensitivity Figure 4 AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 15: Typical Response Curves

    20 A ... 3000 A 10 kA ... 30 kA ± 7 ± 6 ± 5 ± 4 ± 3 ± 2 ± 1 ± 0 0.1 A 0.5 A 10 A 100 A Amps AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 16 100 kHz Frequency Current Derating Curve (I > 3000 A) 30 kA 25 kA 20 kA 15 kA 10 kA 5 kA 100 Hz 1000 Hz 10 kHz 100 kHz Frequency AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 17: Specifications

    9 V ± 0.5 V, conductor center, external DC magnetic field < 40 A/m, no external AC magnetic field, no external electrical field, (10 to 100) Hz, sine wave. See accuracy curves for low currents. AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 18: Common Specification

    (104 to 122) °F (40 to 50) °C; 45 ° ± 5 % RH (without condensation). Altitude: Operating: (0 to 2000) m, working voltage derating above. Non-operating: (0 to 12,000) m. AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 19: Mechanical Specifications

    Dimensions (sensor): 24 in, 36 in, and 48 in nominal (± 1 in), other lengths optional. Dimensions (Electronic Module): (4.9 x 2.5 x 1.1) in (124 x 64 x 28) mm. Weight: AmpFlex 24 in with battery: 0.74 lb. ® AmpFlex 36 in with battery: 0.89 lb.
  • Page 20: Material Specifications

    AC voltmeter, or other voltage ® measuring instrument with an input impedance greater than 1 MΩ. To achieve the best overall accuracy, use the AmpFlex with an AC voltmeter with an accuracy ® of 0.75 % or better.
  • Page 21: Maintenance

    ■ To avoid electrical shock, do not attempt to perform any repair or servie on the instrument unless you are qualified to do so. ■ Do not perform any service while the AmpFlex is on any circuit. ® ■ To avoid electrical shock and/or damage to the instrument, do not get water or other foreign agents into the electronic module.
  • Page 22: Repair And Calibration

    Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® Phone: (800) 343-1391 (Ext. 351) Fax: (603) 742-2346 E-mail: techsupport@aemc.com www.aemc.com AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 23: Limited Warranty

    (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend that you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AmpFlex Flexible AC Current Probes - User Manual ®...
  • Page 24 09/23 99-MAN 100122 v27 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: +1 (603) 749-6434 • +1 (800) 343-1391 • Fax: +1 (603) 742-2346 www.aemc.com © 2004 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ®...
