Summary of Contents for AEMC instruments AmpFlex 300-24-2-10

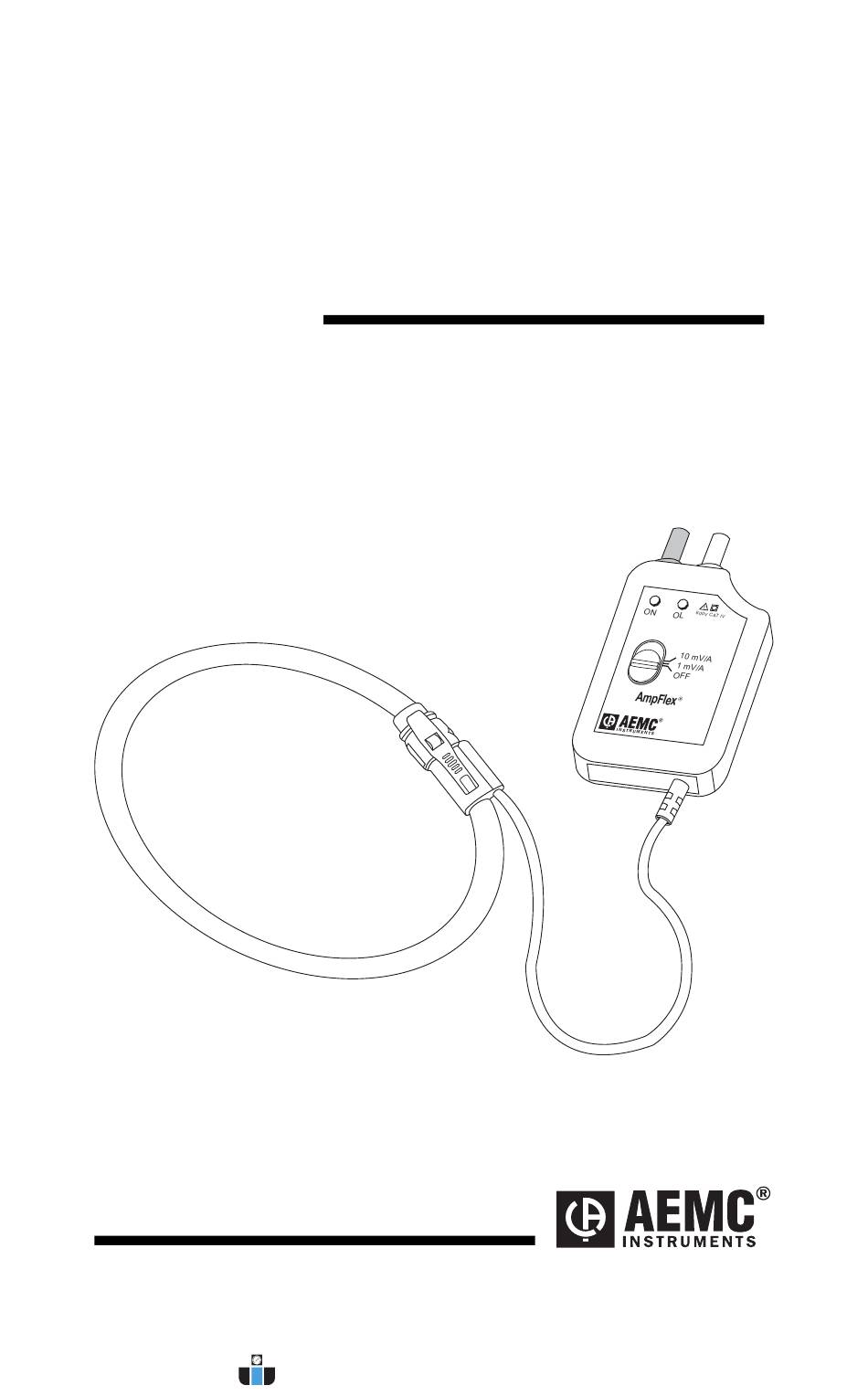

- Page 1 AmpFlex ® Flexible AC Current Probes USER MANUAL 610.7664 www.calcert.com sales@calcer...
- Page 2 Statement of Compliance ® ® Chauvin Arnoux , Inc. d.b.a. AEMC Instruments certifies that this instrument has been calibrated using standards and instruments traceable to international standards. We guarantee that at the time of shipping your instrument has met its published specifications. An NIST traceable certificate may be requested at the time of purchase, or obtained by returning the instrument to our repair and...
-
Page 3: Table Of Contents
Table of Contents Warning ..................... 2 International Electrical Symbols ..............2 Definition of Measurement Categories ............3 Receiving Your Shipment ................3 Packaging ....................3 Description ....................4 Features ....................5 Features ....................6 Accessories ....................6 Standard Models ..................7 Specifications .................... -
Page 4: Warning
® AmpFlex - Flexible AC Current Probes Warning These safety warnings are provided to ensure the safety of personnel and proper operation of the instrument. Read the instruction manual completely and follow all the safety information before attempting to use or service this instrument. -
Page 5: Definition Of Measurement Categories
® AmpFlex - Flexible AC Current Probes Definition of Measurement Categories CAT I: For measurements on circuits not directly connected to the AC supply wall outlet such as protected secondaries, signal level, and limited energy circuits. CAT II: For measurements performed on circuits directly connected to the electrical distribution system. -
Page 6: Description

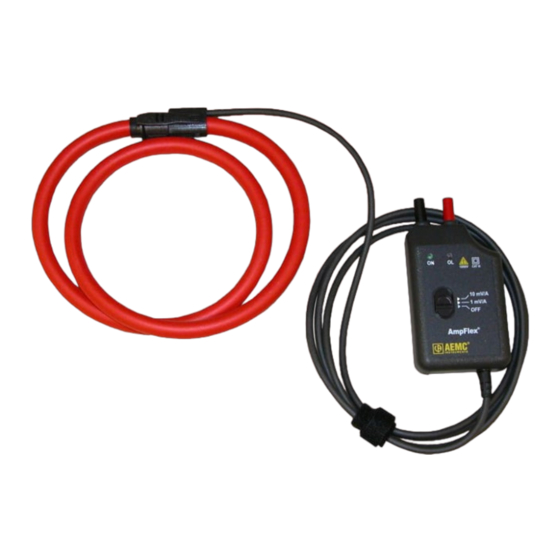

® AmpFlex - Flexible AC Current Probes Description ® The AmpFlex is a flexible AC current transformer composed of a flexible sensor and an electronic module. The flexible sensor permits measurements on conductors where standard clamp-on probes could not be used. In particular, it can be installed in tight spaces, around breaker panels, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes. - Page 7 ® AmpFlex - Flexible AC Current Probes ® AmpFlex Figure 1 1. Positive: Red Banana Plug (+) 7. Flexible Sensor (Diameter 0.5", 12.5mm) 2. Common: Black Banana Plug (-) 8. Lead from Sensor to Module 3. Power ON Indicator (Green LED) (6.5 ft, 2m) 4.
-
Page 8: Features
® AmpFlex - Flexible AC Current Probes Features Models to measure from 0.5Arms to 30,000Arms Accuracy 1% of Reading TRMS measurements when connected to a TRMS instrument No core saturation or damage if overloaded Overrange LED for measurement circuitry ... -
Page 9: Standard Models
® AmpFlex - Flexible AC Current Probes Standard Models Measurement Sensor Model Output Cat. # Conductor Range Length Size 300-24-2-10 30/300A 100/10mV/A 24” (610mm) 8” (190mm) 2112.88 1000-24-1-1 1000A 1mV/A 24” (610mm) 8” (190mm) 2112.39 1000-24-2-1 100/1000A 10/1mV/A 24” (610mm) 8”... -
Page 10: Specifications
® AmpFlex - Flexible AC Current Probes Specifications Model 300A 30/300A 1000A 100/1000A Measurement 5 to 300A 5 to 300A 5 to 1000A 5 to 1000A Range Accuracy ±1% +200mA ±1% +200mA ±1% +200mA ±1% +200mA 100mV/A or 10mV/A or Output Signal 10mV/A 1mV/A... - Page 11 ® AmpFlex - Flexible AC Current Probes Common Specifications ELECTRICAL Accuracy: 1% of reading ± residual noise Frequency Range: 10 - 20,000Hz with current derating Signal Output: 4.5V max Working Voltage: 600V CAT IV; 1000V CAT III Frequency Influence: See Accuracy vs. Frequency curves on pages 18 and 19 Frequency Limitation: See current derating curves (note no limitation on 300A Range) page 19 Influence of adjacent conductor in contact with sensor and...
- Page 12 ® AmpFlex - Flexible AC Current Probes MECHANICAL SPECIFICATIONS Module Output: Two 4 mm safety banana jacks Standard 3/4" (19mm) spacing Battery: 9V Alkaline (NEDA 1604A, IEC 6LR61) recommended Battery Life: Useable from 9V to 7V, 150 hours typical (continuous use) Low Battery: Power ON indicator (green LED) when battery voltage ...
- Page 13 ® AmpFlex - Flexible AC Current Probes Diameter: 12mm ± 0.5mm Outer Sheath Material: Polyurethane, UL94V0 Dielectric Strength: 7500V Latch Spring Life: >10,000 maneuvers MATERIAL SPECIFICATIONS Module: UL 94V2, Color dark gray, Polycarbonate Sensor Latch: Material: Lexan 500R, UL94V0 Cable Assembly to Sensor: UL 94V0, 1000V rating SAFETY SPECIFICATIONS Electrical:...
-
Page 14: Instrument Compatibility
® AmpFlex - Flexible AC Current Probes Instrument Compatibility ® The AmpFlex is compatible with any multimeter, AC voltmeter, or other voltage measuring instrument with an input impedance greater ® than 1M. To achieve the best overall accuracy, use the AmpFlex with a AC voltmeter having an accuracy of 0.75% or better. - Page 15 ® AmpFlex - Flexible AC Current Probes Tips for Making Precise Measurements (continued): To increase the sensitivity or measure on low currents, the AmpFlex ® may be wrapped several times around the conductor. Remember to divide your reading by the number of turns for the actual measurement (see Figure 4).
- Page 16 ® AmpFlex - Flexible AC Current Probes Tips for Making Precise Measurements (continued): ® The AmpFlex may be doubled around the conductor to be measured to double the output. (See Figures 3 and 4 to show the different values on a DMM while measuring 250A 250 A C O M...
- Page 17 ® AmpFlex - Flexible AC Current Probes Tips for Making Precise Measurements (continued): 250 A C O M Double the turns to double the output in low current applications or for higher sensitivity Figure 4 - 15 - 610.7664 www.calcert.com sales@calcer...
-
Page 18: Typical Response Curves
® AmpFlex - Flexible AC Current Probes Typical Response Curves: Typical Accuracy % vs. Frequency @ 100 A, 1 mV/A Output 0.00 % -0.50 % -1.00 % -1.50 % -2.00 % -2.50 % -3.00 % 1 Hz 10 Hz 100 Hz 1000 Hz 10 kHz 100 kHz... - Page 19 ® AmpFlex - Flexible AC Current Probes Typical Response Curves (cont.): Typical Phase Shift vs. Frequency @ 200 A, 1 mV/A Output 5¡ 0¡ -5¡ -10¡ -15¡ -20¡ -25¡ 1 Hz 10 Hz 100 Hz 1000 Hz 10 kHz 100 kHz Frequency Current Derating Curve (I <...
-
Page 20: Maintenance
® AmpFlex - Flexible AC Current Probes Maintenance Warning For maintenance use only specified replacement parts. To avoid electrical shock, do not attempt to perform any servicing unless you are qualified to do so. Do not perform any service while the AmpFlex ®... -
Page 21: Repair And Calibration
Limited Warranty ® The AmpFlex Probe is warranted to the owner for a period of 1 year from the date of original purchase against defects in manufacture. This limited ® warranty is given by AEMC Instruments, not by the distributor from whom it was purchased.
