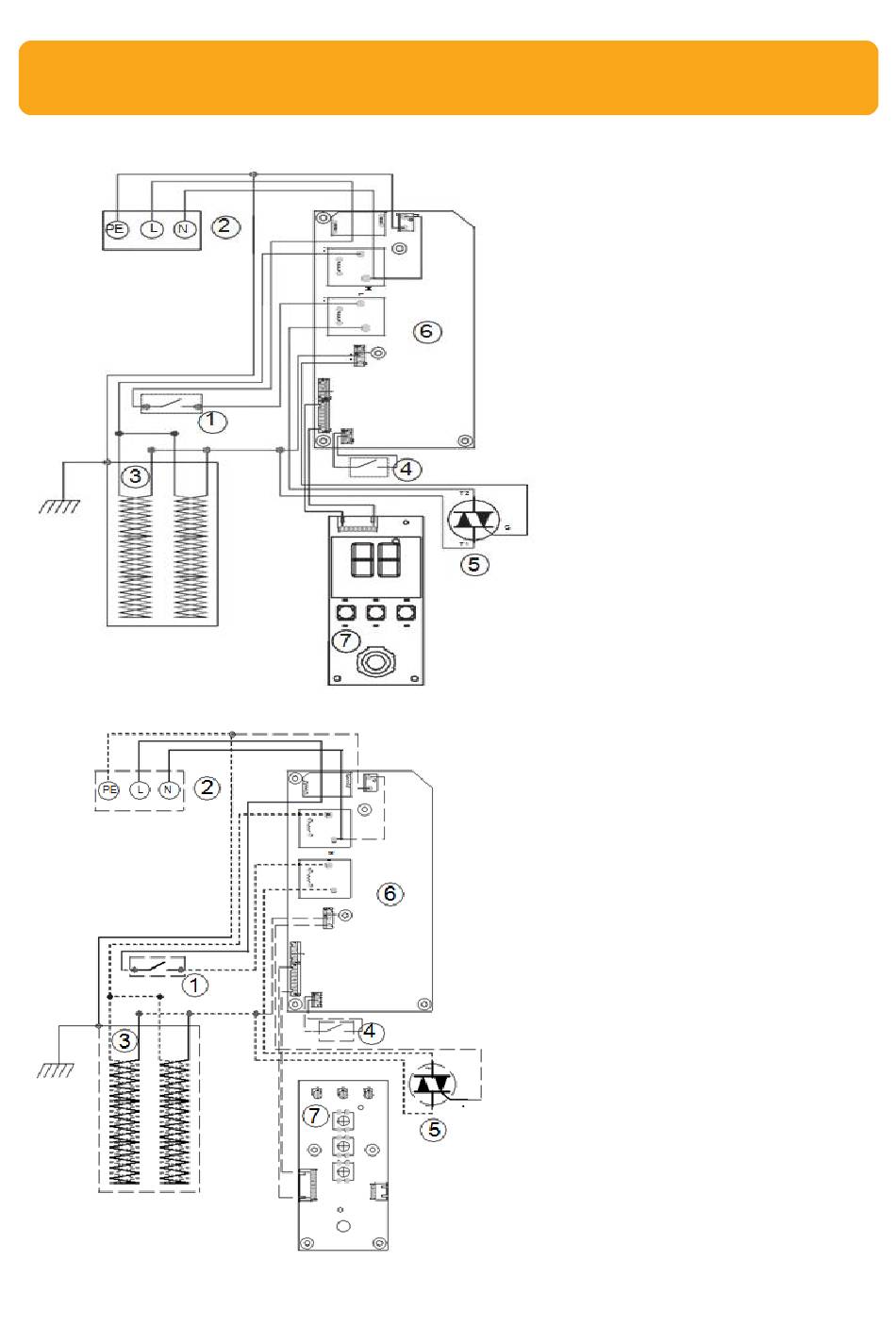

APPENDIX: WIRING DIAGRAM
EI 2D B
EI 2 W
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.
6.
7.
16
Thermal Cut-out
Terminal Block
Heating Element
Flow Switch
Silicon Control
Main Control Board
Display Board
Thermal Cut-Out
Terminal Block
Heating Element
Flow Switch
Silicon Control
Main Control Board
Indicator Light Board
