Plumbing Connection

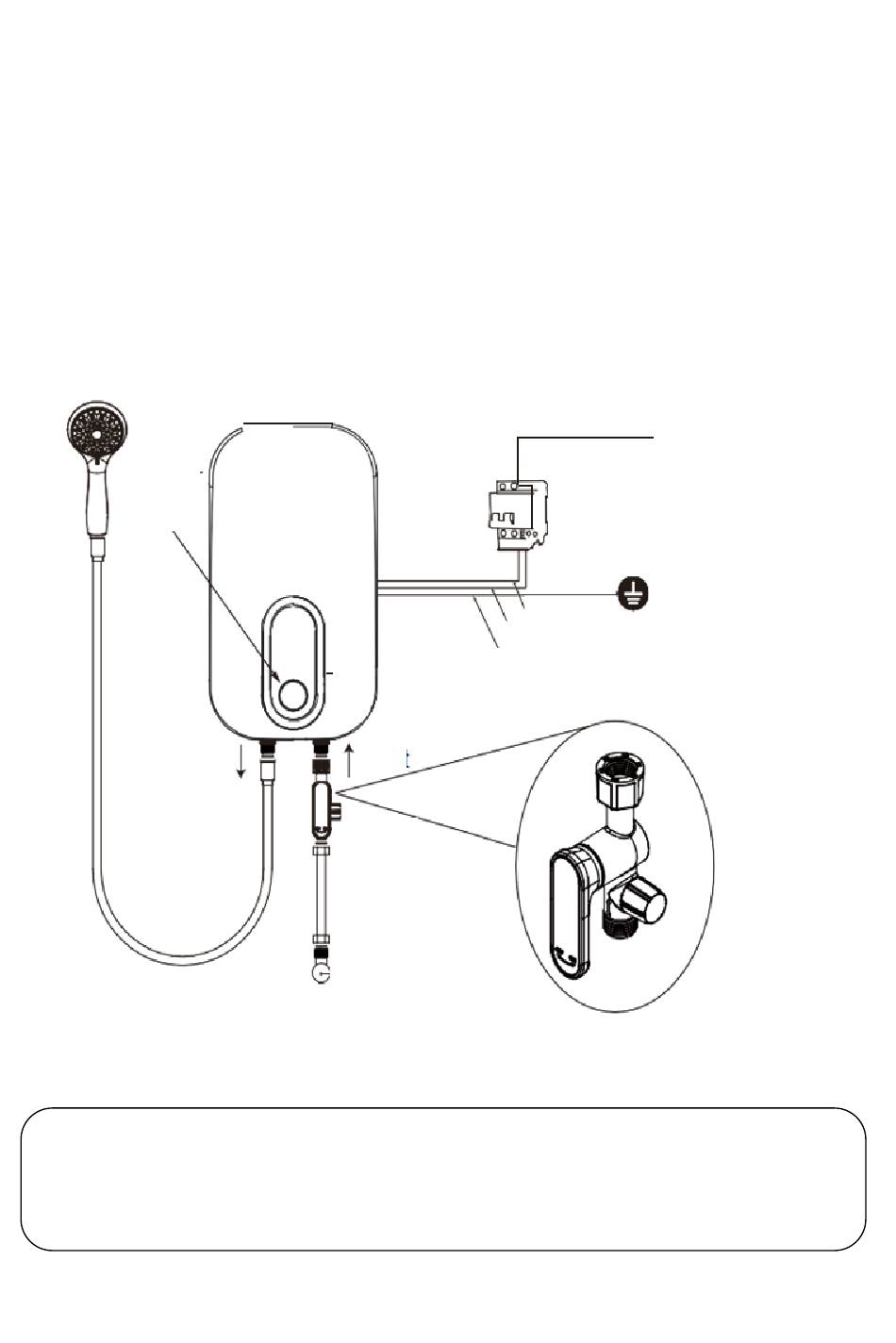

1. The water valve that is equipped with filter should be installed at the
water inlet of the appliance, and the sealing ring equipped with filter
should be installed at the end of the valve. (See below Picture).
2. Shower flexible hose should be connected with the hot water outlet
and the shower head separately; attached sealing ring should be
installed at the end of the hose.
Power
Knob
Water
Outlet
WARNING!
Do not use metallic / chromed hose and conductive control valve
shall
To Main Wiring Line
L (Red)
N (Blue)
E (Yellow/Green)
Water
Inlet
Valve
Valve
8
Circuit
Breaker
Water Flow
Controller
Valve with
Filter
