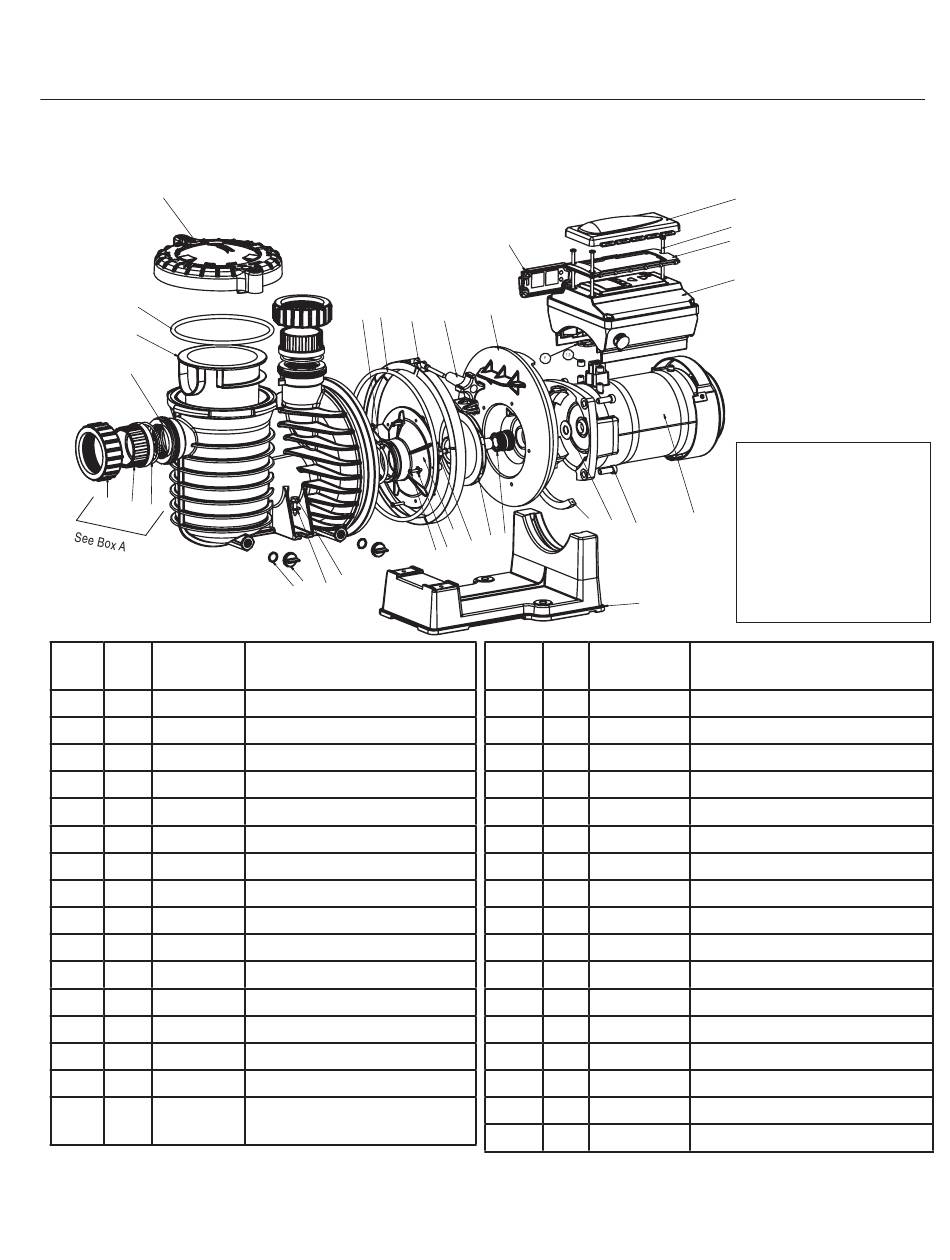

Illustrated Parts List

29
19
31
30
24 23
5
ITEM
QTY. PART NO.
NO.
1 1 C19-37a
2 1 WC-36-22
3 1 350301
4 3 350107
5 2 U9-362
6 1 357290
7 5 U43-21SS
8 5 U30-922SS SCREW DIFFUSER
9 1 350108
10 1 U9-228A
11 1 C103-194P SEAL PLATE
12 4 U30-99SS
13 3 350142
14 1 C35-11
15 4 357294
16 1 358290
Note
(*) Includes TRAP COVER, TRAP RING AND COVER O-RING
(**) Includes TRAP BODY, BASKET, DRAIN PLUGS AND TRAP COVER ASSEMBLY
(***) THIS KIT IS NOT INCLUDED WITH THE PUMP BUT MAY BE PURCHASED SEPARATELY.
18 10
1
21
20 32 33
DESCRIPTION
V-CLAMP
CLAMP, KNOB
COVER, FWC ASSEMBLY
10-24 3 1/4" PH MS 18-8 SS
O-RING #2-231
CVR CNTR ASSY, BLK
#8 EXT TOOTH WASHER
GASKET INTELLIPRO DRIVE
O-RING
SCR CAP 3/8-16 X 1" SOC HEAD
CAP SPACER
MOTOR PAD
MTR 3.2KW PMSM VFD
DRIVE INTELLIPRO VARIABLE
SPEED
Replacement Parts
3
11
2
14
28
25
26
17 27
8 7
ITEM
QTY. PART NO.
NO.
17 1 37007-6080
18 1
19 1 35505-1440
20 2
21 2
22 1
23 2 U11-196PS
24 2 U11-200PS
25 1 C1-271P
26 2 37400-0028S SHAFT SEAL, VITON
27 1 C105-238PLA IMPELLER ASSEMBLY
28 1 17351-0009
29 1 17307-0110S TRAP COVER ASSEMBLY *
30 1 17307-0110S TANK BODY ASSEMBLY **
31 2
32 2 U78-920P
33 2 U43-41SS
®
IntelliPro Variable Speed Pump Installation and User's Guide
Section 7
6
4
6
16
Pkg. 188 2" Slip Union Kit:
(Included with the pump)
U11-200PS
U9-362
15
12
U11-196PS
Pkg. 189 2" NPT Adapter Kit:***
U11-200PS
U9-362
22
U11-199P
DESCRIPTION
IMPELLER SCREW
U9-374 O-RING
O-RING 6.90 O.D. 6.35 I.D.
U9-359 O-RING DRAIN PLUG
U30-918 SCR 5/16-14 X 1 IN LG HI-LO HEX
C4-78P BASE
2" SLIP ADAPTER
UNION COLLAR
DIFFUSER
SLINGER PUMP SHAFT 1/16 IN
C8-58P TRAP BASKET
DRAIN PLUG
WASHER 5/16 TYPE B NARROW
37
Box A
Union Collar (2)
O-Ring (2)
2" Slip Adapter (2)
Union Collar (2)
O-Ring (2)
2" NPT Adapter (2)
