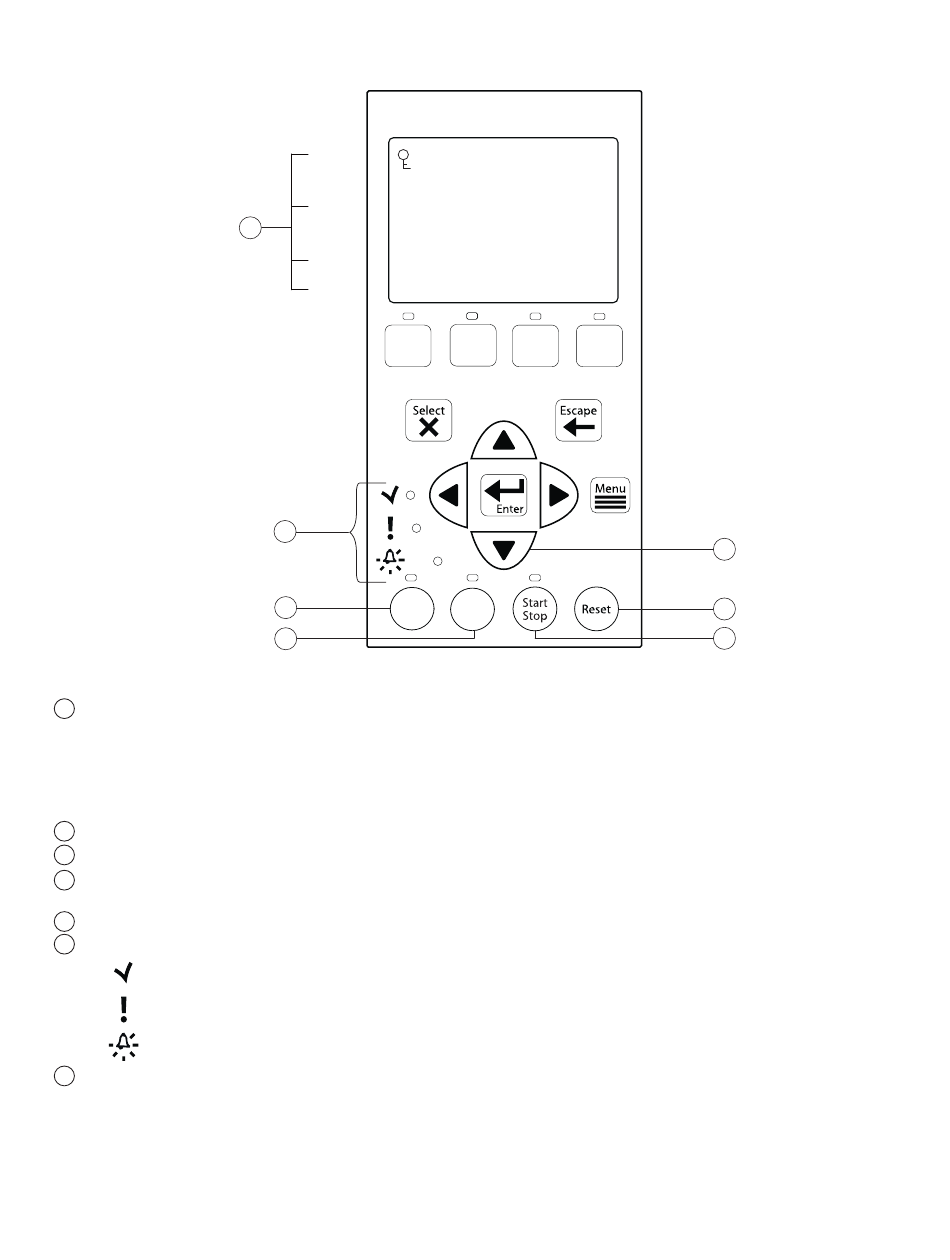

Arrow buttons:
9
• Up arrow: Move one level up in the menu tree or increase a digit when editing a setting.
• Down arrow: Move one level down in the menu tree or decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a setting.
• Right arrow: Move cursor right one digit when editing a setting.
Quick Clean: Duration and speed (RPM) can be preset to save energy. The LED is on when active.
10
Time Out: When active (LED on), at the end of a "Time Out" preset time, the pump will run a schedule.
11
Start/Stop button: Start or Stop the pump. When the LED is on, the pump is currently running or in a
12
mode to start automatically.
13 Reset button: Reset alarm or alert.
LEDs
14
On: This green, power LED is on when IntelliPro
Warning: LED is on if a warning condition is present.
Alarm: The red LED is on if an alarm condition occurs. See "Alerts and Warnings" on page 34.
Control Panel LCD:
15
• Line 1 - Key icon indicates password protect mode is active. If password protect is not enabled,
no key icon is displayed.
• Line 2 - Displays the current pump speed (RPM).
• Line 3 - Count down time and Watts
• Line 4 - Current pump status.
Line 1
Line 2
15
Line 3
T 0.00
Running Speed 1
Line 4
Speed
1
14
Quick
10
Clean
11
12:15
750 RPM 750 RPM
150 WATTS
Speed Speed
Speed
2 3 4
Time
Out
®
is powered on.
®
