STA-RITE Max-E-Pro Series Installation And User Manual

Pool and spa pump
Hide thumbs

Advertisement

Table of Contents

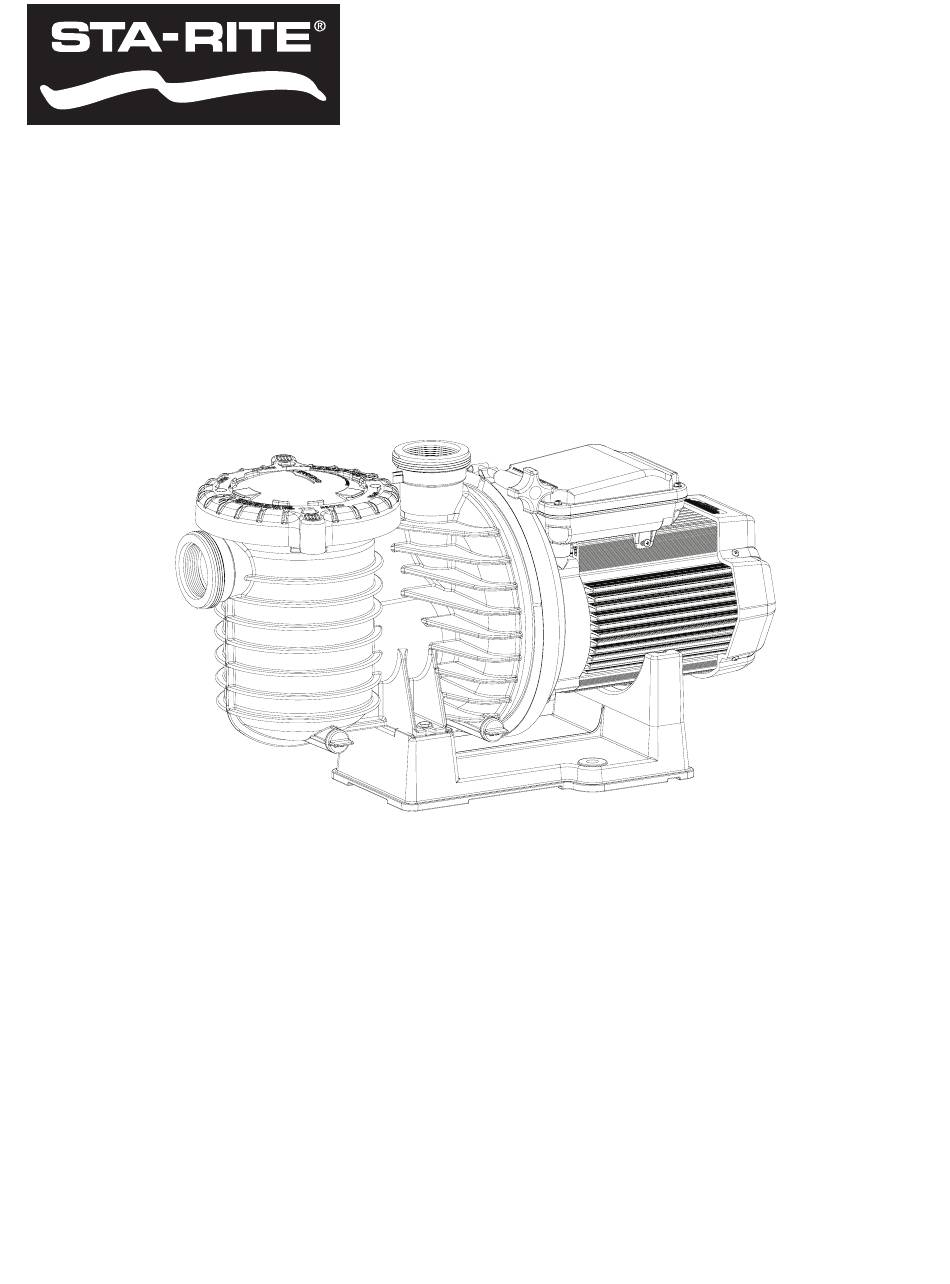

MAX-E-PRO®
POOL AND SPA PUMP
INSTALLATION AND
USER'S GUIDE
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max-E-Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STA-RITE Max-E-Pro Series

Summary of Contents for STA-RITE Max-E-Pro Series

  • Page 1 MAX-E-PRO® POOL AND SPA PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
  • Page 2 IMPORTANT PUMP WARNING AND SAFETY INSTRUCTIONS General Warnings • Never open the inside of the drive motor enclosure. There is a capacitor IMPORTANT NOTICE bank that holds a 230 VAC charge even when there is no power to the unit. This guide provides installation and operation instructions for this pump.
  • Page 3 IMPORTANT PUMP WARNING AND SAFETY INSTRUCTIONS TO MINIMIZE THE RISK OF INJURY DUE TO HAZARDOUS PRESSURE: STAND CLEAR OF PUMP SUCTION ENTRAPMENT HAZARD: AND FILTER DURING START UP. Circulation systems operate under high pressure. When • A properly installed and secured ANSI/ASME A112.19.8 approved anti- any part of the circulating system (i.e.
  • Page 4 CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times) Phone: (919) 566-8000 Phone: (800) 831-7133 Fax: (919) 566-8920...

  • Page 5: Installation

    INSTALLATION Trapped air in the system can cause permanent equipment damage. Ensure all air is relieved from the system before operating, testing or servicing the equipment. Do NOT connect system to a high pressure or city water system. Location Piping Only qualified, licensed personnel should install the pump Use at least 2”...

  • Page 6: Testing And Certification

    Pump Suction Requirements The pump suction system must provide protection against the hazard of suction entrapment or hair entrapment/entanglement. Pump suction is hazardous and can trap and drown or disembowel bathers. Do not use or operate swimming pools, spas, or hot tubs if a suction outlet cover is missing, broken, or loose.

  • Page 7: Electrical Installation

    Electrical Installation RISK OF ELECTRICAL SHOCK OR ELECTROCUTION. This pump must be installed by a licensed or certified electrician or a qualified service professional in accordance with the National Electrical Code (NEC) and all other applicable national or local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to users, installers, or others due to electrical shock, and may also cause damage to property.

  • Page 8: Operation

    OPERATION DO NOT run the pump dry. If the pump is run dry, the mechanical seal will be damaged and the pump will start leaking. If this occurs, the damaged seal must be replaced. ALWAYS maintain proper water level. If the water level falls below the suction port, the pump will draw air through the suction port, losing the prime and causing the pump to run dry, resulting in a damaged seal.

  • Page 9: Performance Curves

    Start-up for Winterized Equipment Winterizing 1. Remove any temporary weather protection placed Allowing the pump to freeze will damage pump and around system for shutdown. void warranty. 2. Follow filter manufacturer’s instructions for reactivation Do not use anti-freeze solutions (except propylene glycol) in your pool/spa system.

  • Page 10: Maintenance

    MAINTENANCE This pool pump must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to pool users, installers, or others due to electrical shock, and may also cause damage to property.

  • Page 11: Pump Reassembly / Installing New Seal

    Pump Reassembly / Installing New Seal IMPORTANT: The ceramic seal of the pump’s shaft seal must be clean and free of dirt, grease and dust before installing. 1. Wet the outer edge of the ceramic seal with a small amount of liquid detergent. Firmly and squarely press it into the seal plate cavity with your thumbs.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Read and understand all safety and operating instruction in this manual before servicing the Max-E-Pro Self-Priming ® Pool/Spa Pump. Only qualified personnel should electrically test the pump motor. Problem Possible Cause Corrective Action Failure to Pump Suction leaks / lost Ensure pump volute and strainer basket are full of water.

  • Page 13: Replacement Parts

    REPLACEMENT PARTS Exploded Parts View (for P6E, P6EA, P6R and P6RA Models) See Box A for Union Part Numbers Parts List (for P6E, P6EA, P6R and P6RA Models) Item # Part # Part Description Qty. Item # Part # Part Description Qty.
  • Page 14 Exploded Parts View (for Models P6EA6D36-204 and P6EA6E36-205) See Box A for Union Part Numbers Parts List (for Models P6EA6D36-204 and P6EA6E36-205) Item # Part # Part Description Qty. Item # Part # Part Description Qty. 17307-0110S Trap Body Assembly (Incl. Item# 20-23) See Table on Motor Page 11...
  • Page 15 Motor/Impeller/Diffuser Table 1-PHASE 60Hz PUMPS Model Motor Impeller Impeller Screw Diffuser Motor Base Motor Pad 115/230V 1-Speed P6E6C-204L AE100CHL C105-238PX C1-271P1 C4-78P C35-43 P6E6D-205L AE100DHL C105-238P C1-271P1 C4-78P C35-43 P6R6D-205L 355021S C105-238P C1-271P1 C104-79P P6E6E-206L AE100EHL C105-238PB C1-271P1 C4-78P C35-43 P6EA6E-205L AE100ELL C105-238P...
  • Page 16 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 WWW.PENTAIR.COM All Pentair trademarks and logos are owned by Pentair plc, or one of its global affiliates. Sta-Rite and Max-E-Pro are registered trademarks of Pentair ®...

This manual is also suitable for:

Max-e-pro 345076Max-e-pro 345077Max-e-pro p6ea6f36-206Max-e-pro 345078Max-e-pro 345079Max-e-pro 348150 ... Show all
