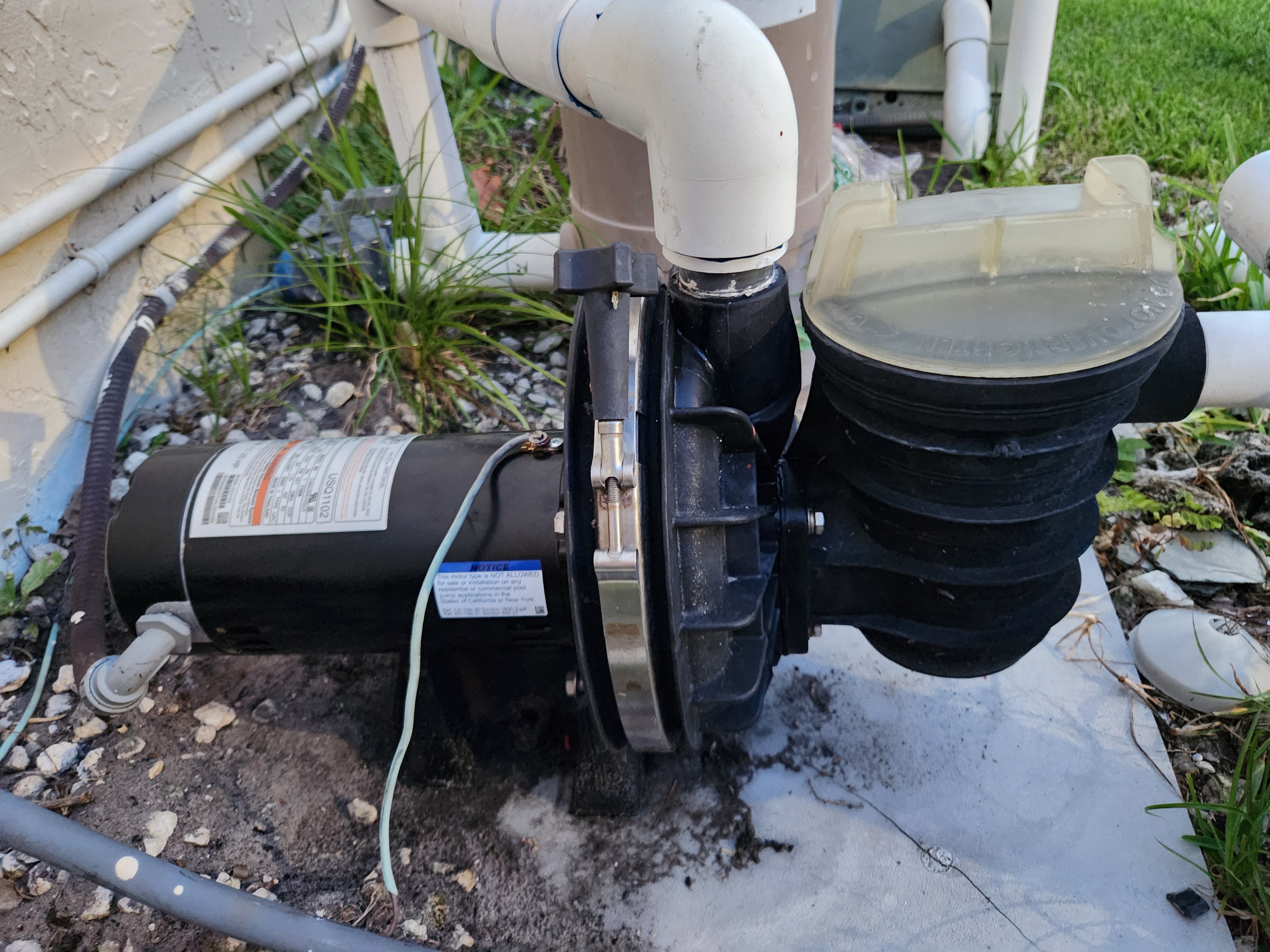

STA-RITE MAX-E-GLAS IITM Owner's Manual

Centrifugal pumps with integral trap
Hide thumbs

Advertisement

Table of Contents

MAX-E-GLAS II
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
North America: 800-752-0183, FAX 800-582-2217
International: 262-728-5551, FAX: 262-728-4461, TELEX: ITT 4970245
www.sta-ritepool.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2002, Sta-Rite Industries, Inc.
TM
CENTRIFUGAL PUMPS
WITH INTEGRAL TRAP
O
W
N
E
R '
INSTALLATION, OPERATION & PARTS
Series P4E, P4EA, P4R, and P4RA
See Page 2 for Model Numbers
and DURA-GLAS II
S
M
A
N
Printed in U.S.A.
U
A
L
This manual should be furnished to
the end user of this pump; its use will
reduce service calls and chance of
injury and will lengthen pump life.
TM
S454 (Rev. 12/5/02)

Advertisement

Table of Contents
loading

Related Manuals for STA-RITE MAX-E-GLAS IITM

Summary of Contents for STA-RITE MAX-E-GLAS IITM

  • Page 1 293 Wright Street, Delavan, WI 53115 North America: 800-752-0183, FAX 800-582-2217 International: 262-728-5551, FAX: 262-728-4461, TELEX: ITT 4970245 www.sta-ritepool.com Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA © 2002, Sta-Rite Industries, Inc. Printed in U.S.A. S454 (Rev. 12/5/02)

  • Page 2: Table Of Contents

    To avoid unneeded service calls, prevent possible injuries, and get the most out of your pump, READ THIS MANUAL CAREFULLY! The Sta-Rite ‘P4R’ and ‘P4E’ Series II Self-priming Centrifugal pumps: • Are designed for use with swimming pools or as centrifugal pumps.

  • Page 3: Safety Instructions

    • Check all clamps, bolts, lids, and system accessories before testing. • Release all air in system before testing. • Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-m) torque for testing. • Water pressure for test must be less than 25 PSI (7.5 kg/cm •...
  • Page 4 Figure 1 Have enough ventilation to maintain air temperature at less than the maximum ambient temperature rating (Max. Amb.) listed on the motor model plate. If this pump is installed in an enclosure/pump house, the enclosure must have ade- quate ventilation and air circulation to keep the temperature in the enclosure at or below the motor’s rated ambient temperature whenever the pump is running.
  • Page 5 Piping: Use at least 2" IPS PVC (51mm) pipe. Increase size if a long run is needed. To avoid strains on the pump, support both suction and discharge pipes inde- pendently. Place these supports near the pump. To avoid a strain left by a gap at the last connection, start all piping at the pump and run pipe away from the pump.

  • Page 6: Electrical

    Testing and Certification Suction outlet covers must have been tested by a nationally recognized testing laboratory and found to comply with the latest ASME/ANSI Specification for Suction Fittings For Use in Swimming Pools, Spas, Hot Tubs, and Whirlpool Bathtub Applications. Outlets Per Pump Provide at least two hydraulically balanced main drains, with covers (see Page 5), for each swimming pool pump suction line.
  • Page 7 Grounding/Bonding BONDING Install, ground, bond and wire motor according to local or National Electrical Code requirements. Permanently ground motor. Use green ground terminal provided under motor GREEN canopy or access plate (See Figure 3); use size and type wire required by GROUND SCREW code.
  • Page 8 TABLE I - RECOMMENDED FUSING AND WIRING DATA – P4E, P4EA MODELS Serv. to Motor - Dist. in Ft. (M) Motor Branch Fuse Max Load Voltage/ 0-100' 101-200' 201-300' Rating Amps* Amps Hz/Phase (0-30 M) (30-60 M) (60-90 M) P4E Models: 13.8 115/60/1 12(3)

  • Page 9: Operation

    OPERA TION NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding. Fill pump with water before starting motor. Before removing trap cover: 1. STOP PUMP before proceeding. 2. CLOSE GATE VALVES in suction and discharge pipes. 3.

  • Page 10: Storage/Winterizing

    3. Remove strainer basket and clean. Be sure all holes in basket are clear, flush basket with water and replace in trap with large opening at pipe con- nection port (between ribs provided). If basket is replaced backwards cover will not fit on trap body. 4.

  • Page 11: Pump Service

    9. Prime pump according to instructions on Page 9. PUMP SERVICE Pump should only be serviced by qualified personnel. For best results, use only genuine Sta-Rite factory parts. Be sure to prime pump (Page 9) before starting. Before removing clamp or trap cover: 1.
  • Page 12 7. Unscrew impeller from shaft (turn counterclockwise when facing it). NOTICE: On models with impeller screw: Remove impeller screw (left hand thread - turn clockwise) and gasket before removing impeller. Inspect gasket for damage, cracks, etc. Replace if damaged. 8. Pull rotating member of seal off of impeller sleeve; clean sleeve. 9.

  • Page 13: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Read and understand safety and operating instructions in this manual before doing any work on pump! Only qualified personnel should electrically test pump motor! FAILURE TO PUMP; REDUCED CAPACITY OR DISCHARGE PRESSURE Suction leaks/lost prime: 1. Pump must be primed; make sure that pump volute and trap are full of water.
  • Page 14 P4E, P4EA and P4E62 SERIES MAX-E-GLAS II POOL PUMP 3/4 through 3 HP Models 1860 0795...
  • Page 15 REPAIR PARTS LIST P4E, P4EA and P4E62 SERIES Part Part MAX-E-GLAS II POOL PUMP Description Qty. 3/4 through 3 HP Models Motor Chart at Right #10-32x1/2” Screw U30-692SS Models with “LV” suffix are identical to corresponding models with “L” Lock Washer U43-22SS suffix except for the shaft seal, which is Viton equipped.

  • Page 16: Repair Parts List

    P4R and P4RA SERIES DURA-GLAS II POOL PUMP 1 through 2-1/2 H.P. Models 1860 0795 NL REPAIR PARTS LIST Part Part Description Qty. Motor Chart at Right Water Slinger 17351-0009 Parts are common to all models listed except as noted; Seal Plate (includes Key Nos.
  • Page 17 P4R SERIES DURA-GLAS II POOL PUMP 208-230/460V 3 Phase Models 1860 0795 Models P4R6D3-186 P4R6E3-187 P4R6F3-188 P4R6G3-189 P4R6H3-190 REPAIR PARTS LIST Part Part Description Qty. Motor Chart at Right #10-32 x 1/2” Screw U30-692SS Lock Washer U43-22SS Bonding Lug(#) U17-568 Water Slinger 17351-0009 Seal Plate (includes Key Nos.
  • Page 18 P4R SERIES DURA-GLAS II POOL PUMP 200/400V 3 Phase Models 1860 0795 Models P4R62D3-186 P4R62E3-187 P4R62F3-188 P4R62G3-189 REPAIR PARTS LIST Part Part Description Qty. Motor Chart at Right #10-32 x 1/2” Screw U30-856ZP Lock Washer U43-22SS Bonding Lug U17-568 Water Slinger 17351-0009 Seal Plate (includes Key Nos.

  • Page 19: Warranty

    Product specific warranties: of installation The foregoing warranties relate to the original consumer pur- chaser (“Purchaser”) only. Sta-Rite shall have the option to re- HRPB, DEPB, System 3, System 2 and Posi-Clear pair or replace the defective product, at its sole discre- Tanks .
