Connecting the IntelliPro
®
The IntelliPro pump can be controlled by a SunTouch system via the RS-485 communication cable.
WARNING - Switch OFF main system power to the SunTouch Power Center before making any connections.
To connect the IntelliPro
1. Unlatch the front door of the SunTouch power center, and open the door.
2. Loosen the retaining screw on front panel. Open the hinged front panel to access the
electronics compartment.
3. Route the two conductor cable up through the power center grommet opening located on the
left side, and up through the low voltage raceway to the motherboard.
4. Strip back the cable conductors 6.00 mm (1/4"). Insert the wires into the screw terminals
(provided). Secure the wires with the screws. Make sure to match the color coding of the
wires;
YELLOW to YELLOW and GREEN to GREEN.
5. Insert the connector on the COMPORT (J11) screw terminal on the SunTouch circuit board.
6. Close the control panel and secure it with the retaining screw.
7. Close the front door. Fasten the spring latch.
®

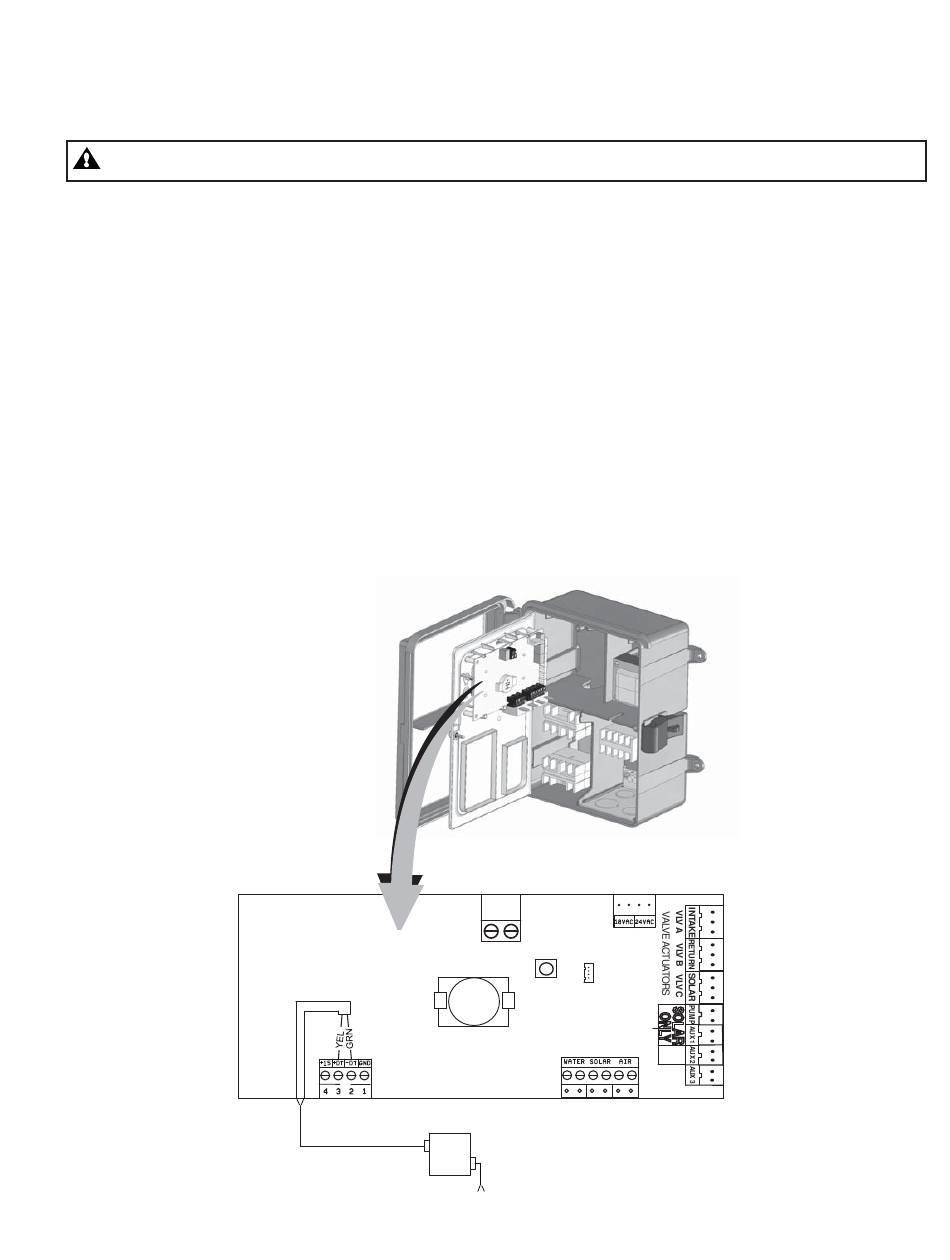

pump to a SunTouch
®
pump two wire RS-485 communication cable to the SunTouch circuit board:
J11
COM PORT
RS-485 communication
cable (P/N 350122)
IntelliPro
VS-3050
Drive
Power to Pump
®
System
GAS
HEATER
RESET
SunTouch circuit board
230 VAC
®
IntelliPro Variable Speed Pump Installation and User's Guide
CLNR CLNR
