293 Wright Street, Delavan, WI 53115
For further operating, installation, or maintenance assistance:
©2001, Sta-Rite Industries, Inc. PRINTED IN U.S.A.
OWNER'S MANUAL
Multi-Stage Deep Well Jet Pumps
"MS" Series
Installation/Operation/Parts
Call 1-262-728-5551
6 0
4 0
2 0
8 0
1 0
0
S757-1 (Rev. 10/31/01)
Advertisement
Table of Contents
Related Manuals for STA-RITE MSC-6
Summary of Contents for STA-RITE MSC-6
- Page 1 OWNER’S MANUAL Multi-Stage Deep Well Jet Pumps 293 Wright Street, Delavan, WI 53115 “MS” Series Installation/Operation/Parts For further operating, installation, or maintenance assistance: Call 1-262-728-5551 S757-1 (Rev. 10/31/01) ©2001, Sta-Rite Industries, Inc. PRINTED IN U.S.A.
-
Page 2: General Safety
Safety READ AND FOLLOW ELECTRICAL SAFETY SAFETY INSTRUCTIONS! Capacitor voltage may be hazardous. To discharge motor capacitor, hold insulated handle screw- This is the safety alert symbol. When you see this driver BY THE HANDLE and short capacitor terminals symbol on your pump or in this manual, look for together. -
Page 3: Table Of Contents
Repair Parts ....................15-16 LIMITED WARRANTY Sta-Rite warrants to the original consumer of the products listed below, that they will be free from defects in material and work- manship for the Warranty Period from the date of original installation or manufacture as noted. -
Page 4: Installation
Installation BEFORE YOU INSTALL YOUR PUMP Dirt and Scale Plug Pump and Pipes! NOTE: For proper performance, pump MUST be matched to ejector and to well depth. Use shallow well installation for wells up to 25 ft depth to water and deep well ejector for depths up to 130 ft. Step 1. - Page 5 Installation PIPING IN THE DEEP WELL Pump See Figures 7 and 8. Gasket Adapter Flange NOTE: Deep well installations are either single pipe (2” wells) or double pipe (4” and larger wells). In a double pipe installation, the larger pipe is the suction pipe and the smaller pipe is the drive pipe (very deep wells may use suction and drive pipes of the same diameter).
- Page 6 Installation SINGLE PIPE EJECTOR INSTALLATION Pump mounted Single pipe installations require (see Figure 8): on Casing a. Galvanized steel pipe Adapter b. Leather packer-type ejector with built-in foot valve c. Turned couplings (supplied with packer-type ejector) d. Well casing adapter. Step 1.
-
Page 7: Installation
Installation PRESSURE TANK INSTALLATION – DEEP WELL The Pressure Tank provides a reservoir of water under pressure and main- Standard Tank tains cushion of air pressure to prevent pipe hammering and possible dam- age to plumbing components. When water is drawn off through house fix- Air Volume tures, the pressure in the tank is lowered and the pressure switch starts the Control... -
Page 8: Electrical
Electrical Disconnect power before working on pump, motor, pressure switch, or wiring. Your Motor Terminal Board (under the motor end cover) wiring if line voltage is 230 Volts or if you have a single and Pressure Switch look like one of those shown below. voltage motor. - Page 9 Electrical Connection Procedure: Step 1. Connect the ground wire first as shown in Figure 12. The ground wire must be a solid copper wire at least as large as the power sup- ply wires. Step 2. There must be a solid metal connection between the pressure switch and the motor for motor grounding protection.
-
Page 10: Operation
Operation PRIMING THE PUMP NEVER run pump dry. Running pump without water may cause pump to overheat, damaging seal and possibly causing burns to per- sons handling pump. Fill pump with water before starting. NEVER run pump against closed discharge, to do so can boil 1 0 0 water inside pump, causing hazardous pressure in unit and possibly scald- ing persons handling pump. -
Page 11: Operation
Operation Step 4. Once unit has primed and pressure stabilized, slowly open (turn counterclockwise - Figure 14A) regulator valve until pressure falters (pressure gauge needle flutters; pump may become noisy - see 1 0 0 Figure 14B). At this point, close (turn clockwise) regulator valve slightly until pressure stabilizes. -
Page 12: Maintenance
Maintenance PUMP DISASSEMBLY/ASSEMBLY Step 1. Pull disconnect switch. Disconnect power lines from pressure switch. Step 2. Remove the two cap screws holding the pump to the flange adapter. Don’t disturb the piping in the well. Step 3. Remove the flange adapter gasket and scrape the surfaces clean. Step 4. -
Page 13: Maintenance
Maintenance Step 3. Make sure that the shaft keys are in place on the shaft. If they are not, squeeze them in place now with slip joint pliers. Do not tap them or hit them with a hammer; you could bend the shaft (see Figure 21). -
Page 14: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motor will not run Disconnect switch is off Be sure switch is on. Fuse is blown or circuit breaker tripped Replace fuse or reset circuit breaker. Starting switch is defective DISCONNECT POWER; Replace starting switch. Wires at motor are loose, Refer to instructions on wiring (Page 8). -
Page 15: Repair Parts
Repair Parts 368 1293 Repair Parts – Multi-Stage Jet MSC-6 MSD-6 MSE-6 MSF-6 MSG-6 Part With MSC-7 MSD-7 MSE-7 MSF-7 MSG-7 Description Used 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP Motor-115/230V Single Phase A300CH A300DH A300EH Motor-230V Single Phase... - Page 16 Repair Parts Item 1-Remove paper backing form gasket before applying. Item 2-Align locating lug on flange with locating lug on base volute. 489 0194 Adapter Flange – (Not included with pump) 376 1293 Part J216-26 J216-27 Description Qty. 1-1/4x1 1-1/4x1-1/4 Gasket J20-12 J20-12...
Need help?
Do you have a question about the MSC-6 and is the answer not in the manual?
Questions and answers
I have an MSE-7 Shallow well pump, I need the points in the top of the motor please help me I can’t find them in the diagram!
The wiring points at the top of the motor for a STA-RITE MSE-7 Shallow well pump include:
- L1 and L2 terminals for connecting the power supply.
- A ground screw for grounding the motor.
- A voltage selector plug (for dual-voltage motors) to switch between 230V and 115V by moving the plug.
Ensure connections follow the wiring chart and local electrical codes.
This answer is automatically generated

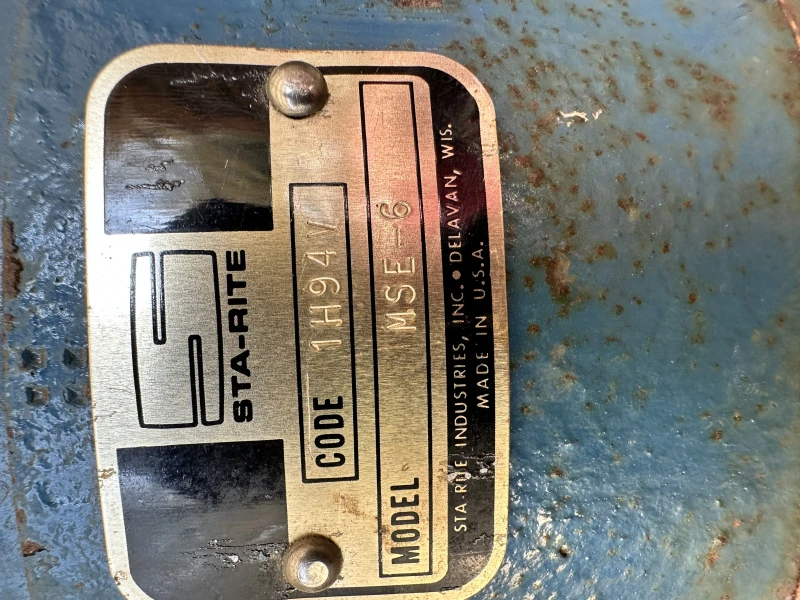

I have a Sta-rite MSE-6 manufactured in 1994, it has a tapperd shaft, code 1H94. How do I get the correct rebuild for the pump end.
To find the correct rebuild kit for a STA-RITE MSC-6 pump with a tapered shaft manufactured in 1994, identify the specific model and horsepower (e.g., MSC-6 with 1/2 HP, 3/4 HP, or 1 HP). Then match it to the parts listed in the repair parts section. Use the appropriate motor and part numbers shown for your model and horsepower. For example:
- For MSC-6 1/2 HP: Motor part number A300CH
- For MSC-6 3/4 HP: Motor part number A300DH
- For MSC-6 1 HP: Motor part number A300EH
Use these part numbers to select the correct rebuild kit.
This answer is automatically generated
Where can I access the well through the system to disinfect the well
where is the drain plg
