Accessing and Navigating the System Menus

The Web-based GUI menu structure allows you to easily configure the NetVanta 7100 system. This

section provides a brief introduction to navigating through the menus. More detailed configuration

examples can be found in the remainder of this document.

There are multiple menus covering a variety of configuration items related to the NetVanta 7100. Figure 4

shows the menus and their submenus to give you a preview of the topics covered under each section.

The menus can be summarized as follows:

•

System Menu - contains several screens that aid in configuring the system settings.

•

Voice Menu - provides multiple screens for configuring voice settings such as phone station

accounts, trunk lines, system voice parameters, and statistic reports.

•

Data Menu - enables configuration of switch, router, and bridge functions, with specific menus

related to firewall and VPN settings.

•

Utilities Menu - includes various functions to aid in managing, troubleshooting, and accessing the

unit.

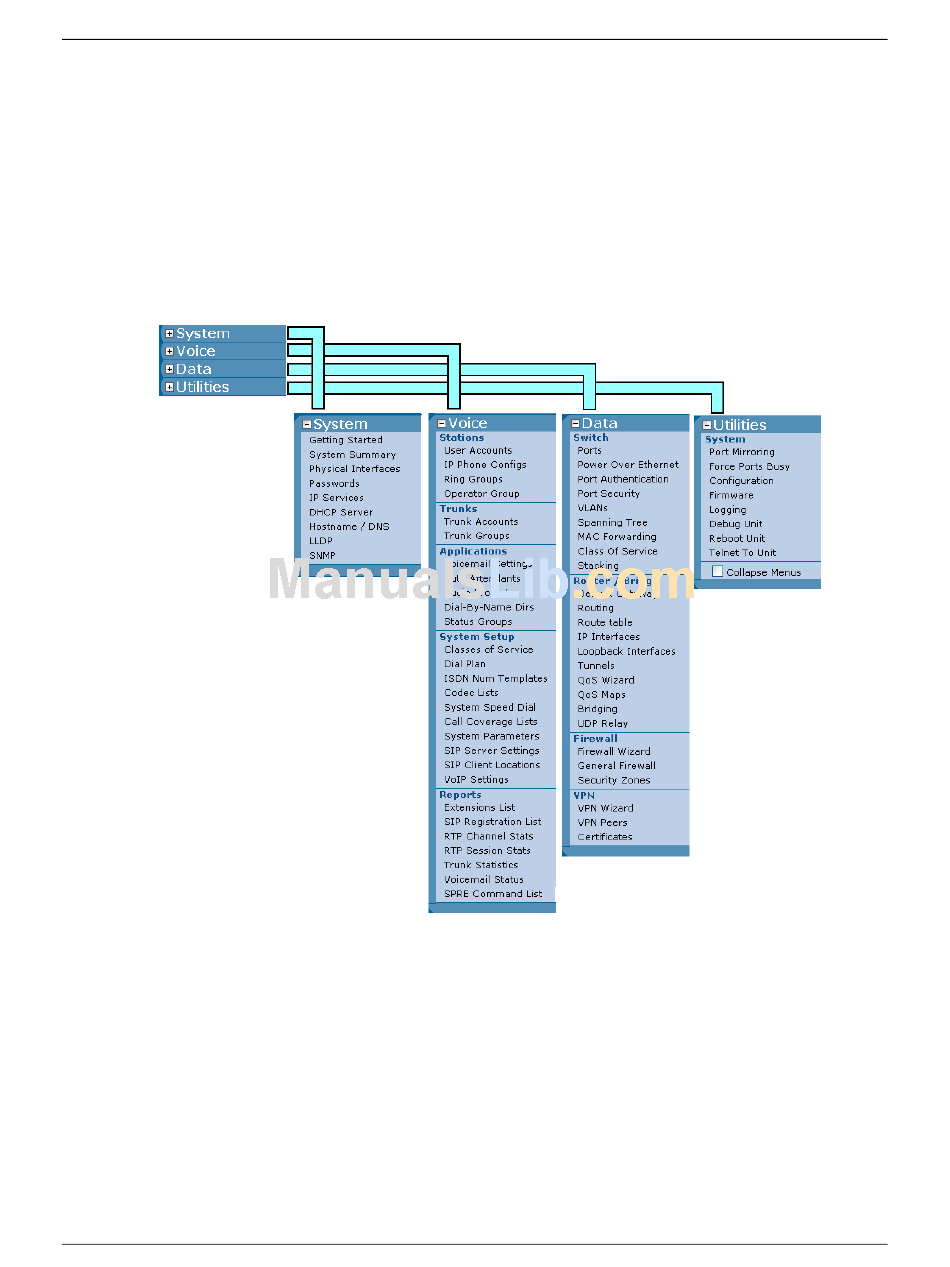

Figure 4. Menu Structure

NetVanta 7100 Administrator's Guide

61200796L1-31A
