NetVanta 7100 Exercise
Basic Installation and Call Handling
This exercise begins with the "Out of the Box" configuration of the NetVanta 7100. You
will create two SIP users, a door phone user account, modify the current voice
configuration, and then place calls following a typical call flow where inbound calls go to
the auto attendant. In the second call flow example, you will create a ring group and then
have inbound calls ring all phones that are members of that ring group.

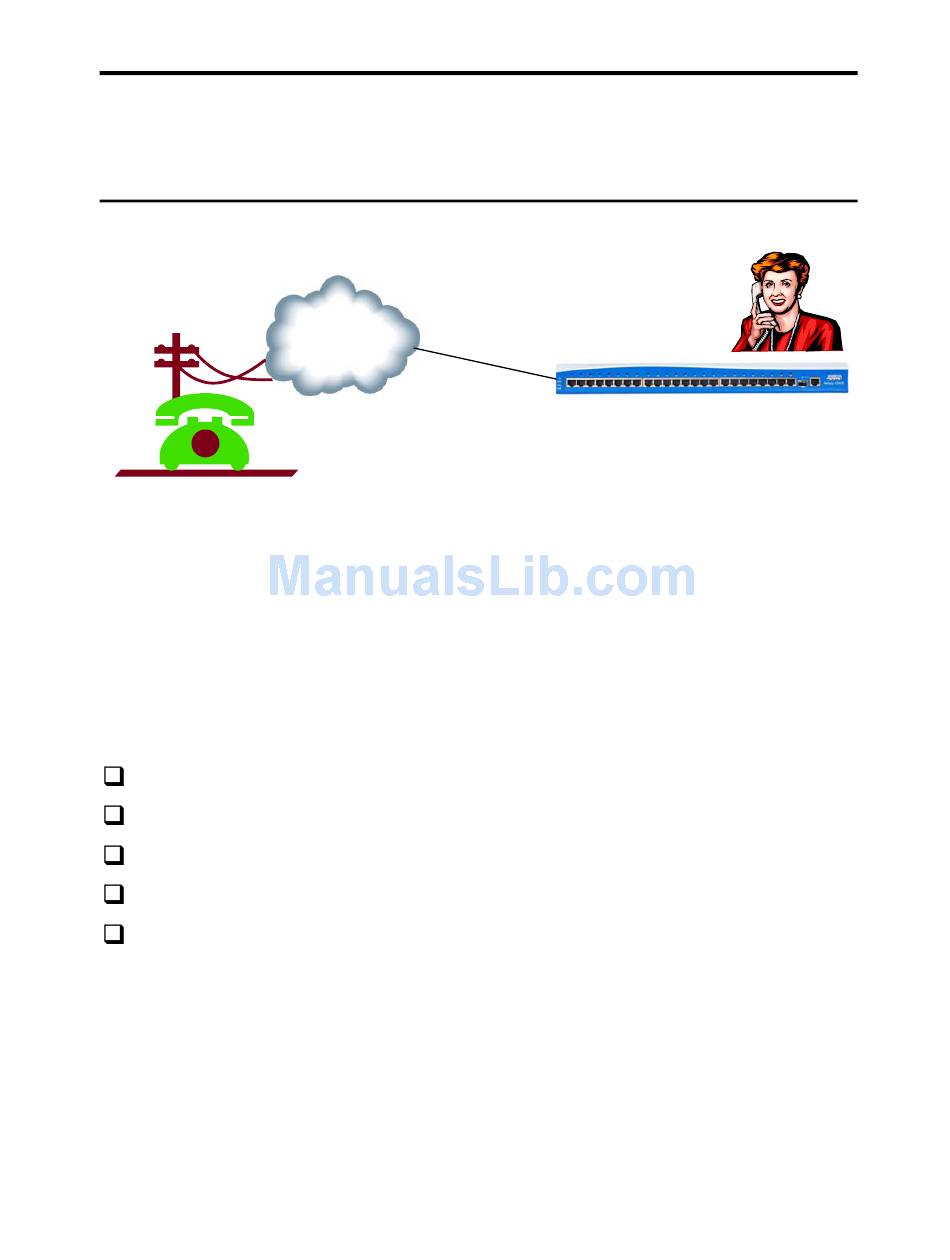

CONNECTIONS
An ADTRAN IP 712 is connected to your NetVanta 7100 eth 0/1
A Polycom SoundPoint IP601 is connected to NetVanta 7100 eth 0/2
Analog trunk #1 is connected to NetVanta 7100 FXO 0/1
Analog trunk #2 is connected to NetVanta 7100 FXO 0/2.
IP/SIP trunk is connected to eth 0/0
* Only Analog trunk #1 will be used in this lab
PSTN
FXO 0/1
NetVanta 7100
NetVanta IP Telephony Course
L2-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NetVanta 7100 and is the answer not in the manual?

Questions and answers

Related Manuals for ADTRAN NetVanta 7100

Summary of Contents for ADTRAN NetVanta 7100

  • Page 1 FXO 0/1 NetVanta 7100 This exercise begins with the “Out of the Box” configuration of the NetVanta 7100. You will create two SIP users, a door phone user account, modify the current voice configuration, and then place calls following a typical call flow where inbound calls go to the auto attendant.
  • Page 2 NetVanta 7100 Exercise – Basic Installation and Call Handling NETVANTA IP TELEPHONY COURSE AUTO ATTENDANT This lab includes OPTIONAL trunk calls into YOUR configured student NetVanta 7000 lab equipment. When you see the symbol, this represents a call made from YOUR OWN PHONE (cell phone, business phone, etc…) into the NetVanta IP Telephony...
  • Page 3 NetVanta 7100 Exercise – Basic Installation and Call Handling ACCESSING LAB NETVANTA 7100 - COMMAND LINE INTERFACE (CLI) Log in to www.adtran.com and then navigate to your student web page (www.adtran.com/training/vilt_ipt). This link is on your CD and in your course information...
  • Page 4 NetVanta 7100 Exercise – Basic Installation and Call Handling ACCESSING LAB NETVANTA 7100 – GRAPHICAL USER INTERFACE (GUI) Log in to www.adtran.com and then navigate to your student web page (www.adtran.com/training/vilt_ipt). This link is on your CD and in your course information...
  • Page 5 Enter <y> for ‘yes’ when asked if wanting to reboot system ACCESS YOUR LAB NETVANTA 7100 GUI Management Interface - Access and login to the GUI interface of your Netvanta 7100 If needed, see ACCESSING LAB UNIT (GUI) for instructions...
  • Page 6 NetVanta 7100 Exercise – Basic Installation and Call Handling OBTAIN MAC ADDRESS OF IP PHONES Navigate to the Data / Switch / MAC Forwarding screen. From this screen, you can see the MAC addresses of connected devices and the physical ports that they are connected to.
  • Page 7 2. Enter SIP User #1’s extension, name, and Phone Type. 3. Select the New Address option and then enter the MAC address of the ADTRAN IP 712 phone. 4. Change the Phone Model to ADTRAN IP 712 5.
  • Page 8 8. Select the New Address option and then enter the MAC address of the ADTRAN/Polycom SoundPoint IP 601. 9. Change the Phone Model to ADTRAN/Polycom SoundPoint IP 6xx and then click Apply. Q: What information must be entered to create a new SIP user for a known phone model?
  • Page 9 If SIP user has registered with the NetVanta 7100, a line displays below the word SIP. If SIP user has not registered with the NetVanta 7100, a line displays though the word SIP. The MAC address entered for this phone can also be seen by hovering cursor of bubble.
  • Page 10 NetVanta 7100 Exercise – Basic Installation and Call Handling ACCESS VOICEMAIL Newly created voice users are given access to Voicemail by default. When a voice user accesses voicemail for the first time, the Voicemail Setup Wizard runs. The user will be prompted to record a name, greeting, and to change their voicemail password.
  • Page 11 NetVanta 7100 Exercise – Basic Installation and Call Handling 16. Call your IPT lab site and check Voicemail for user 2003. 1. Dial 1-256-665-9214 2. Enter Pass Code for Student Auto Attendant (your 4 digit passcode) 3. Press 1 to place call into your first Analog Trunk Call is initiated inbound on the first Analog trunk to the Auto Attendant (8200) 4.
  • Page 12 The door phone has been connected to port FXS 2/1. 17. Select Voice / Stations / Ring Groups from the NetVanta 7100 menus. 18. Create ring group 8001 with the settings shown below:...
  • Page 13 NetVanta 7100 Exercise – Basic Installation and Call Handling 19. Using the settings shown below, create a new Analog Station User Account with an extension of 2800 for use with the door phone. Class of Service Hotline Phone Dial 8001...
  • Page 14 NetVanta 7100 Exercise – Basic Installation and Call Handling Modify the Operator Group For this lab, Ext 2003 will be assigned to retrieve calls when a caller dials “0”. 20. Delete Ext 2001 & Ext 2002 from the Operator Group. This is part of the “Default”...
  • Page 15 NetVanta 7100 Exercise – Basic Installation and Call Handling AUTO ATTENDANT CALL HANDLING Inbound calls go to the Auto Attendant and then the calling party enters the extension of the inside user. In the following steps, you will enable “debug voice summary” and view the output while placing the calls.
  • Page 16 NetVanta 7100 Exercise – Basic Installation and Call Handling Debug Voice Summary Sample Output The output shown below is from the steps just completed. 1. Inbound call to Auto Attendant (8200) 2. User enter 2004 3. Call Coverage for user 2004 goes to Voicemail 4.
  • Page 17 NetVanta 7100 Exercise – Basic Installation and Call Handling RING GROUP CALL HANDLING In this scenario, the customer would like incoming calls to ring several phones and then go to the auto attendant if no one picks up. 26. From the Voice / Stations / Ring Groups menu, create the second ring group 8002...
  • Page 18 NetVanta 7100 Exercise – Basic Installation and Call Handling 27. Select Voice / Trunks / Trunk Accounts from the NetVanta 7100 menu. 28. Edit Trunk Account T01. Change the ‘Trunk Number’ option to the new Ring Group extension 8002. (Inbound calls will now go to Ring Group 8002)
  • Page 19 NetVanta 7100 Exercise – Basic Installation and Call Handling 29. From the “Enable Mode” of the Command Line Interface, enter the debug voice summary command. View output while placing call below. IPT# debug voice summary symbol represents a call made from your own phone into the NetVanta IP Telephony Course Auto Attendant.
  • Page 20 Optional: Save a copy of the lab configuration to your PC. From the Utilities / System / Configuration menu of the NetVanta 7100, select Download. Click the Include Voice Settings checkbox to include both startup-config and dynvoice-config in your backup configuration.
