U-Line H-2895 Manual

H-2895
TOUCHFREE
SOAP DISPENSER
IF THERE IS NO HOLE IN COUNTER
1. 1. Prior to drilling, examine below the counter to
ensure adequate clearance for the new unit.
1. 2. Drill a 1" diameter hole in the countertop.
1. 3. The hole can be drilled to either the right or left
of the faucet, ensuring adequate clearance for the
counter assembly.
1. 4. Clean the counter area where the new hole is
located.
PAGE 1 OF 9
1-800-295-5510
uline.com

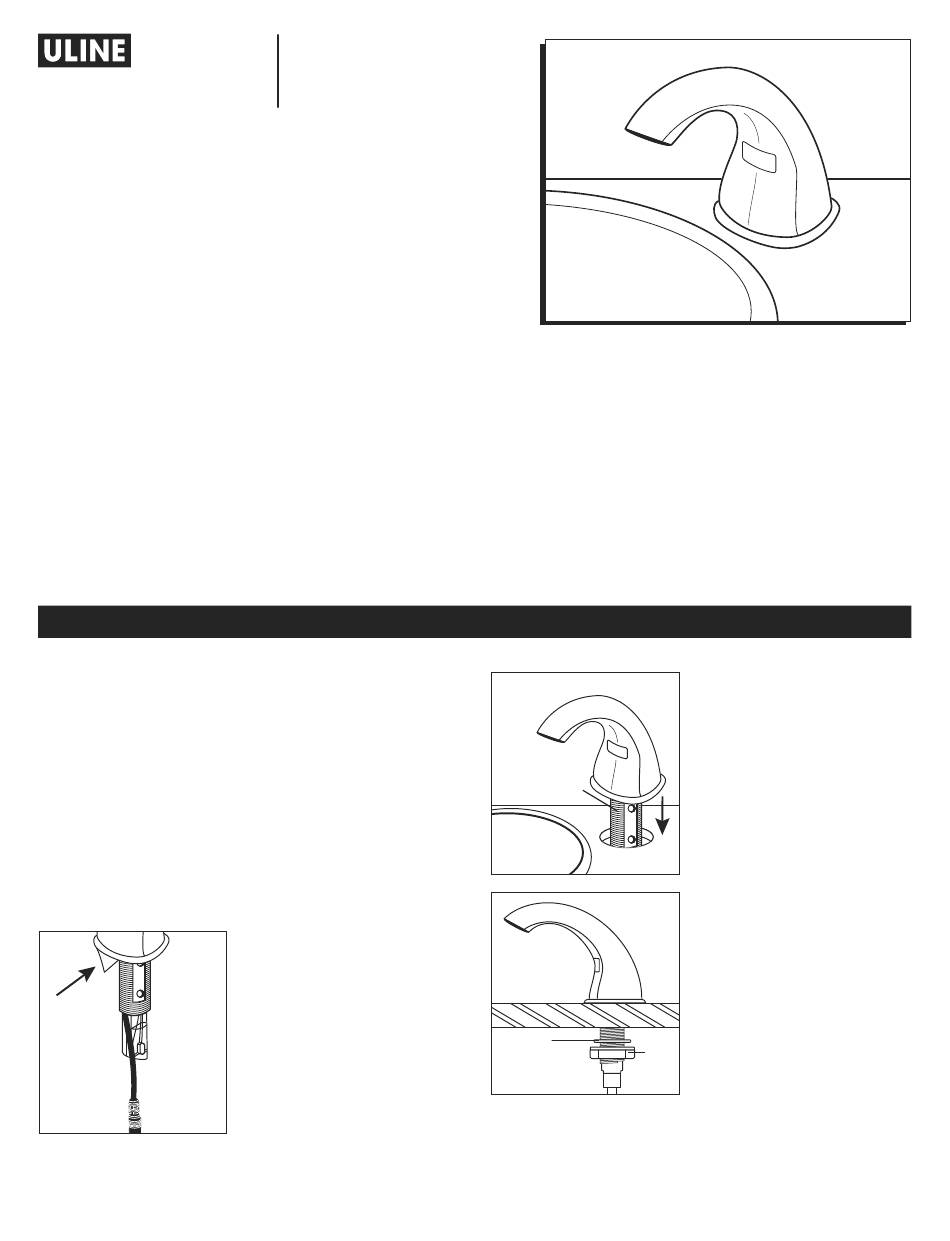

INSTRUCTIONS
TOUCHFREE SOAP DIS-
PENSER INSTALLATION
2. 1. Remove the paper
liner from the bottom of the
gasket.
Pour le français, consulter les pages 7-9.
3.
cable and the shank of
the dispenser assembly
(1) through the hole in the
countertop. Point the spout
of the dispenser into the sink
1
bowl and press down firmly
on the dispenser to securely
attach it to the countertop.
4.
the counter, first feed the
lock washer (3) and then
the mounting nut (4) over
the data cable and onto
the threaded shank of the
dispenser assembly. Be sure
that the "teeth" on the washer
3
will touch the bottom of the
4
counter top and that the nut
threads easily onto the shank.
(If the nut is hard to turn by hand, it is upside down.)
Hand-tighten the nut securely.
Para Español, vea páginas 4-6.
2. Feed the data
3. From underneath
0421 IH-2895
