U-Line TORK MATIC H-9952 Manual

H-5805, H-9952

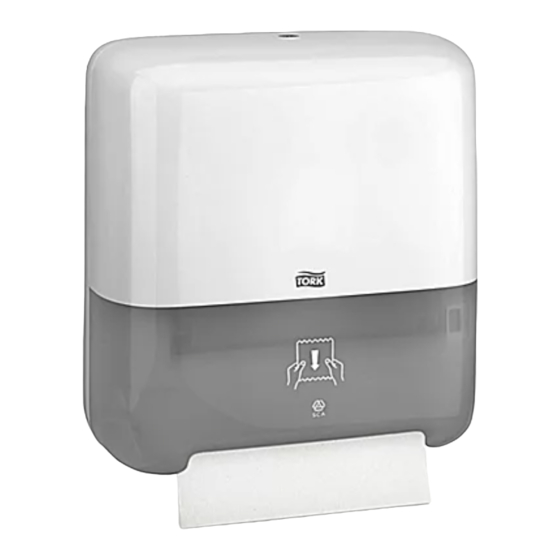

TORK MATIC
® ®
TOWEL DISPENSER
TOOLS NEEDED
Electric 6 mm Drill Bit
Drill
Dispenser x 1
USING THE KEY AND OPTIONAL PUSH BUTTON MODE
USING THE KEY
1. To open dispenser while keeping it locked, insert key
at position A. (See Figure 1)
2. Turn and hold key clockwise to open dispenser.
(See Figure 2)
NOTE: Release key back to position A after
closing to lock dispenser.
PAGE 1 OF 12
1-800-295-5510
uline.com
MANUAL
Phillips Tape
Screwdriver Measure
Dispenser Key x 1
Figure 1
Figure 2
Level
PARTS
Wall Anchor x 4
USING PUSH BUTTON MODE
1. Insert key at position A. (See Figure 1)
2. Turn counterclockwise to position B. (See Figure 3)
3. Remove key and push in lock to open dispenser.
(See Figure 4)
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
Screw x 4
Figure 3
Figure 4
0122 IH-5805
