H-28, H-4654

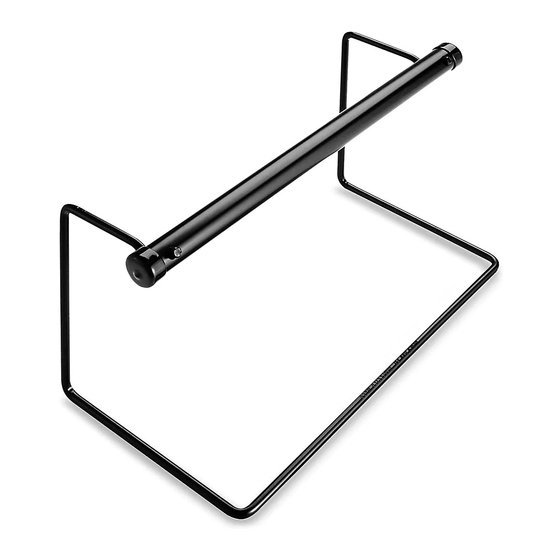

POLY TUBING
DISPENSER
Clips and Screws
End Cap
End Cap
Clips and Screws
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY
End Cap
Dowel
Figure 1
End Cap
Dowel
Figure 2
WALL MOUNTING
1.
Mount dispenser to wall using clips and screws
provided. (See Figure 1)
NOTE: Use appropriate fastening hardware for
wall material.
TABLE MOUNTING
2. Fasten dispenser to tabletop using clips and screws
provided. (See Figure 2)
Para Español, vea página 2.
Pour le français, consulter la page 3.
0521 IH-28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-28
Summary of Contents for U-Line H-28
- Page 1 Para Español, vea página 2. Pour le français, consulter la page 3. H-28, H-4654 1-800-295-5510 uline.com POLY TUBING DISPENSER ASSEMBLY WALL MOUNTING Clips and Screws Mount dispenser to wall using clips and screws End Cap Dowel provided. (See Figure 1) NOTE: Use appropriate fastening hardware for wall material.
- Page 2 H-28, H-4654 800-295-5510 uline.mx DESPACHADOR DE ROLLOS DE POLIETILENO TUBULAR ENSAMBLE INSTALACIÓN EN PARED Sujetadores y Tornillos Tapa de Sujete el despachador a la pared usando los Extremo Cilindro sujetadores y los tornillos que se suministran. (Vea Diagrama 1) NOTA: Utilice los accesorios de instalación apropiados para el material de la pared.
- Page 3 H-28, H-4654 1-800-295-5510 uline.ca DISTRIBUTEUR DE FILM TUBULAIRE EN POLYÉTHYLÈNE MONTAGE FIXATION MURALE Attaches et vis Fixez le distributeur au mur à l’aide des attaches et Embout Goujon des vis fournies. (Voir Figure 1) REMARQUE : Utilisez le matériel d'installation correspondant au type de matériau de votre mur.
