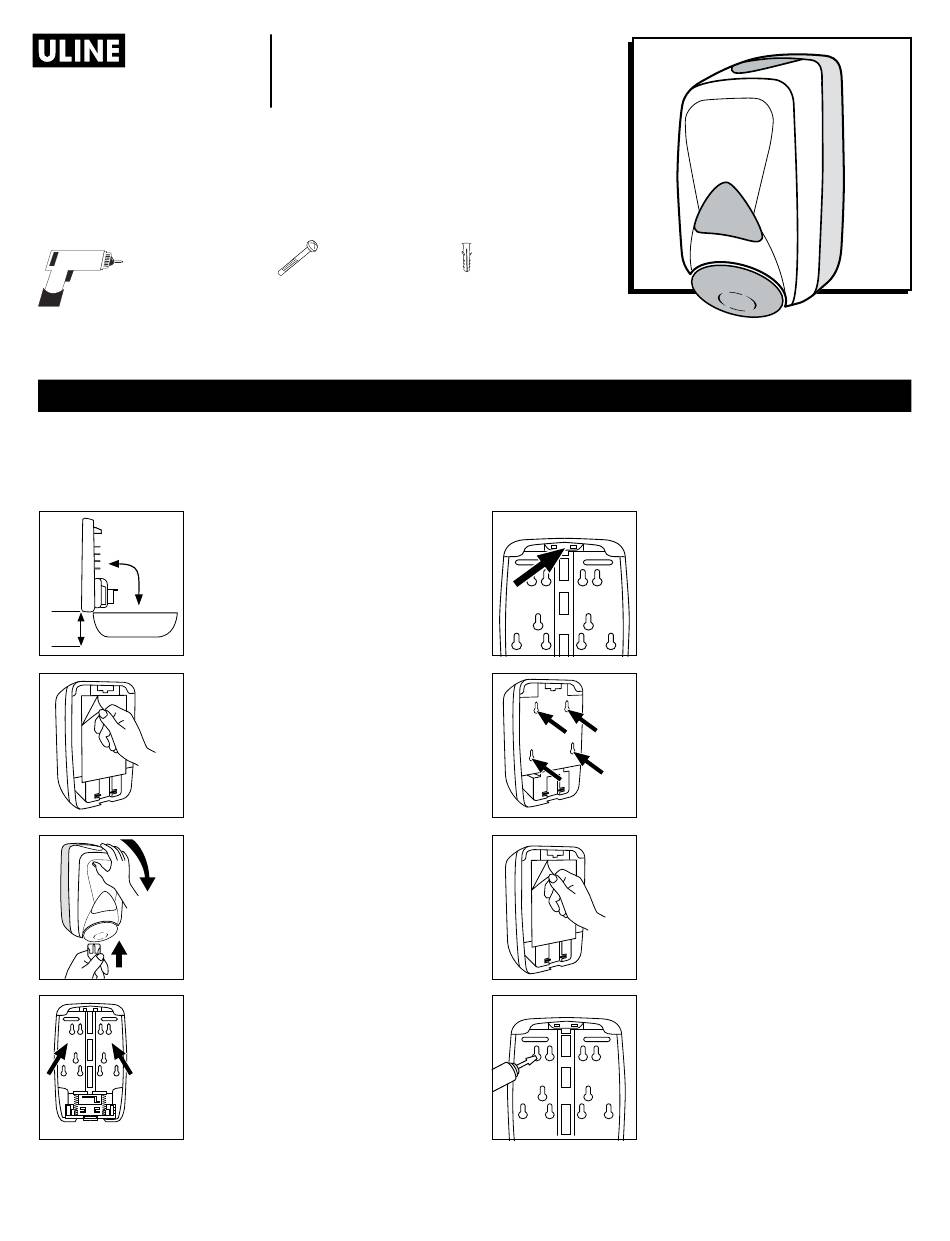

H-2557
FOAMING SOAP
PUSH DISPENSER
FOR OPTIONAL FASTENER INSTALLATION (NOT INCLUDED):
TOOL NEEDED
Drill with 1/4" Bit
TAPE INSTALLATION
Use only on smooth, dry surfaces.
1. Install the dispenser at least
Figure 1
10" (25.4 cm) above counter top.
(See Figure 1)
2. Clean installation surface with an
alcohol prep pad. Allow surface
to dry for 60 seconds.
10 in.
3. Peel paper off of installation tape
and press dispenser firmly into
position. (See Figure 2)
Figure 2
4. Open dispenser by inserting key
into key access holes and push
up until front cover opens.
(See Figure 3)
Figure 3
5. Press firmly on back plate for 30
seconds. For maximum adhesion,
do not load refill for 24 hours.
(See Figure 4)
Figure 4
PAGE 1 OF 6
1-800-295-5510
uline.com
PARTS NEEDED
Type A #10 x 1" Screw x 4
(not included)
#10 x 1" Anchor x 4
(not included)
INSTALLATION
FASTENER INSTALLATION
Use on rough or smooth surfaces.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1. Open dispenser by pushing on
Figure 5
cover latch until it releases.
(See Figure 5)
2. Using backplate as template,
mark and drill 4 center holes
using 1/4" spiral masonry drill or
1/4" wood drill. If required, pierce
installation tape at installation
holes. Make sure tape backing
remains in place.
3. Install #10 x 1" anchors into the
4 drilled holes. Insert Type A
Figure 6
#10 x 1" screws into installation
holes in backplate and through
installation tape. (See Figure 6)
4. Peel paper off of installation
tape, line up screws with
anchors, and press firmly into
position. (See Figure 7)
Figure 7
5. Tighten screws securely, being
Figure 8
careful not to overtighten.
(See Figure 8)
1221 IH-2557
