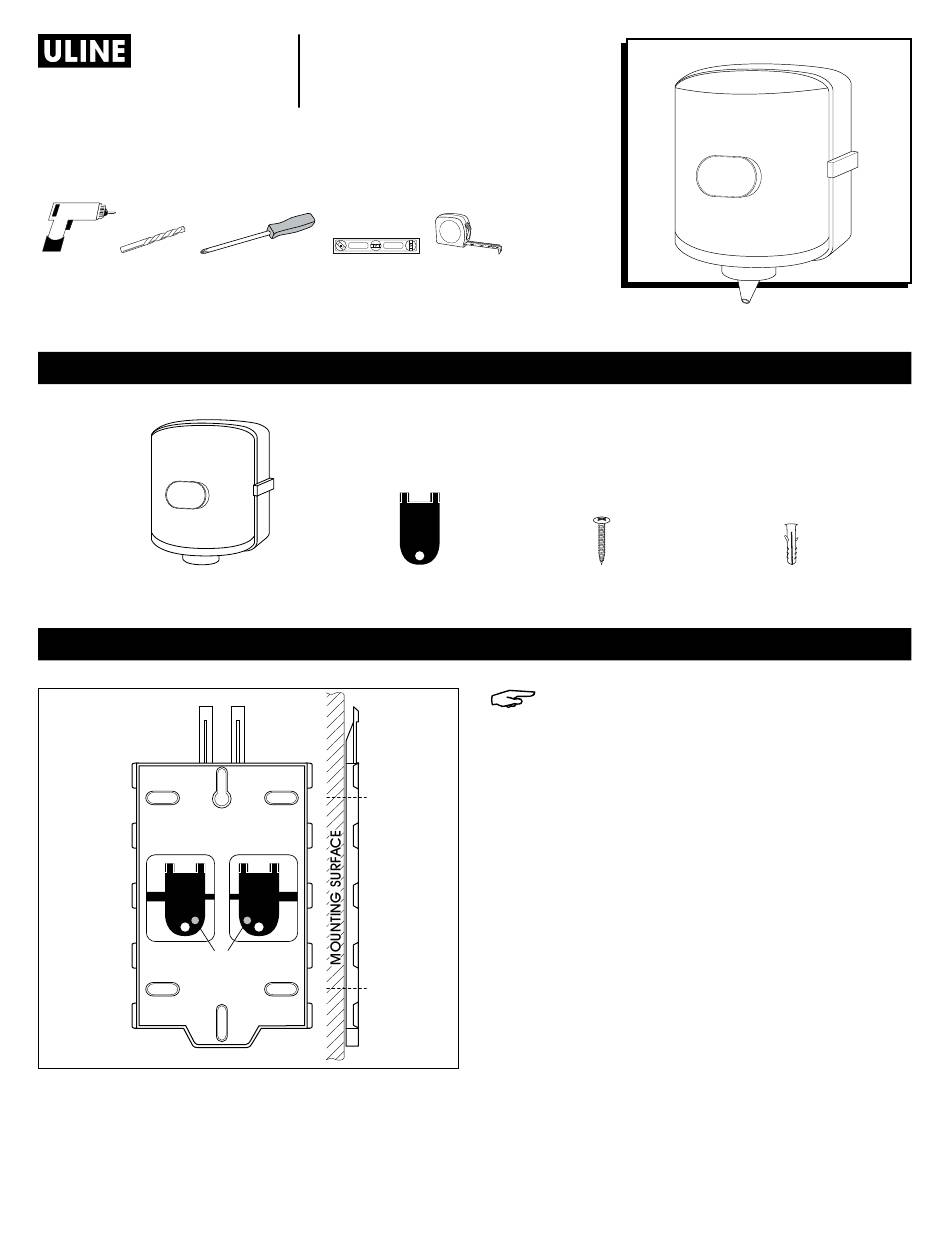

H-2534
EZ PULL SR. TOWEL
DISPENSER

TOOLS NEEDED

Drill
Drill Bit
Phillips Screwdriver
Dispenser x 1
Figure 1
KEY
REMOVE KEYS
PAGE 1 OF 6
1-800-295-5510
uline.com
Level
Key x 2

MOUNTING DISPENSER

KEY
Tape
Measure

PARTS

Screw x 4
NOTE: Recommended mounting height is 48"
from the floor to the bottom of the dispenser.
1.
Remove both keys from mounting plate.
(See Figure 1)
2. Remove mounting plate from dispenser by inserting
key into keyhole on top of dispenser and sliding the
mounting plate down.
3. Align mounting plate with labeled side facing the
wall to desired position on wall.
4. Mark holes and drill into wall surface.
5. Insert anchors and top center screw.
6. Place mounting plate on center fastener. Tighten
screw while ensuring holes line up with all other
anchors.
7.
Insert additional screws with mounting plate in level
position and tighten all screws.
8. Slide dispenser into place on mounting plate until it
locks down. Dispenser is ready to load.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Wall Anchor x 4
0621 IH-2534
