U-Line H-2272 Quick Start Manual

H-2272

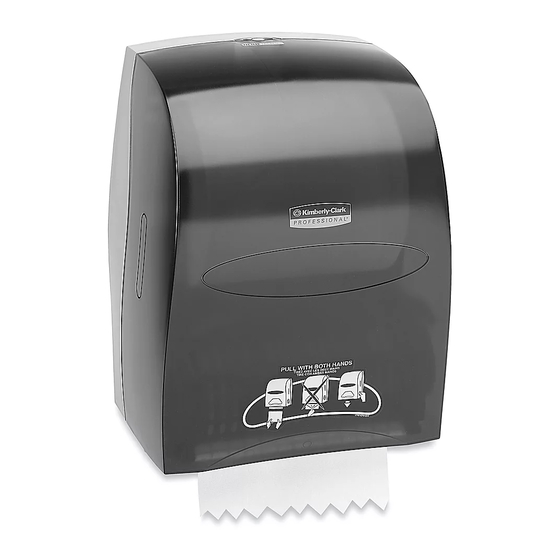

8" HANDS-FREE
TOWEL DISPENSER
TOOLS NEEDED
Electric Drill 1/4" Drill Bit
Dispenser x 1
USING THE PUSH BUTTON LOCK FEATURE
1. Open dispenser and raise end of lock spring just
enough to pop out the gray decorative hole plug.
(See Figure 1)
NOTE: Do not overstress the lock spring.
Lock Spring
Figure 1
Decorative
Hole Plug
2. Remove push button from back of dispenser.
(See Figure 2)
Figure 2
PAGE 1 OF 9
1-800-295-5510
uline.com
Phillips Screwdriver Tape Measure
Dispenser Key x 1
OPTIONAL PUSH BUTTON LOCK INSTALLATION
Push Buttons
Level
PARTS
Wall Anchor x 4
3. Slide push button under lock spring at the top of the
dispenser and insert button through hole in door.
(See Figure 3)
Figure 3
4. Release lock spring and close dispenser. (See Figure 4)
Figure 4
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Screw x 4
Push Button
0721 IH-2272
