Procedure Steps; Disconnecting The Machine - Epilog Laser FiberMark Manual

1. Disconnect the machine from the power source.
2. Using the #1 Phillip's Head Screw driver remove the rear panel from the machine.
3. There are five electrical connections from the power supplies that must be de-mated and
one ribbon cable that must be disconnected from the laser before it can be removed. If the
connections can't be removed at this time because they are hidden from view by the laser,
they may be disconnected after step 10 when the laser is removed from the chassis. If you
choose to disconnect them after step 10, be aware that the cables are not that long and that
the laser must be set directly behind the chassis of the machine until the electrical
connections are disconnected.
4. Inside the rear panel of the engraver, on the right hand side of the machine as you face the
machine from the back side is the optical isolator/collimator. (Diagram 1)
5. There are four Allen Screws which secure the isolator/combiner in to the mount. Loosen the
four mounting screws and remove all but one. It makes no difference which screw is left in
the mount. You are leaving it in place to prevent the isolator/combiner from falling out before
you are ready.

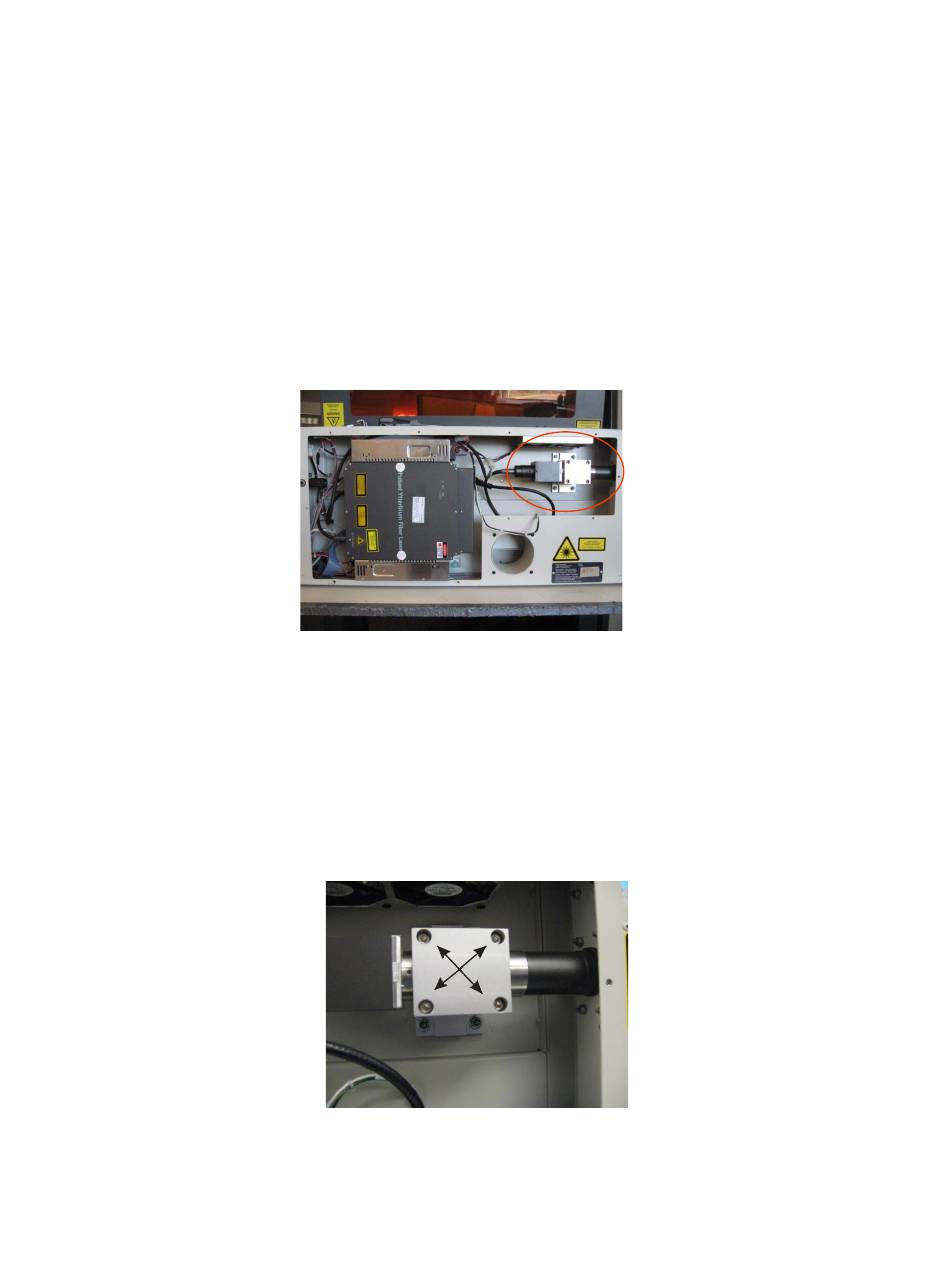

Diagram 1
Circle shows location of
Isolator/Collimator
Diagram 2
Isolator/Collimator
detail
