OTC with discrete compensation
%wr_quad_disc.nc
N20 G17G90
N22 D1 G25 (Linear transition block)
N40 G1 X0Y0Z0 F600
N50 #OTC ON[RADIUS DISC]
N55 G42
N60 G1 X2
N70 G1 X102
N80 G26 Y100 (Circular transition block)
N90 X2
N95 Y0
N100 G40 G1 X0
N110 #OTC OFF
N99999 M30

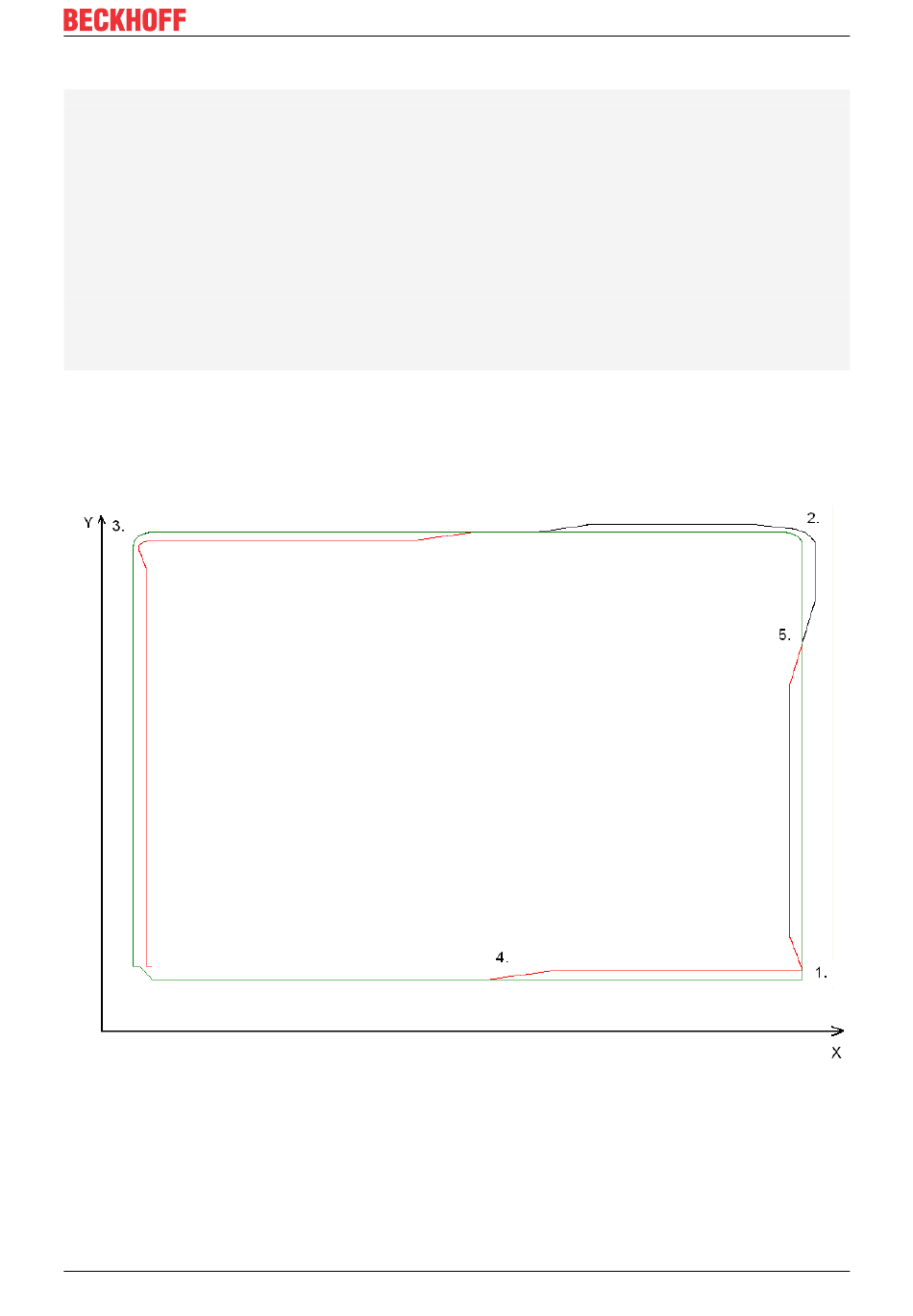

Legend:
Green: Path contour with active TRC without OTC offset
Black: Path contour with negative value for OTC radius offset
Red: Path contour with positive value for OTC radius offset
Figure 3: Contour of the NC program wr_quad_disc.nc
