- Page 1 Manual | EN C6930 Industrial PC 2024-04-03 | Version: 3.4...
-
Page 3: Table Of Contents
Grounding of the Industrial PC.................. 30 4.3.3 Connecting cables and power supply ................ 31 Switching the Industrial PC on and off .................... 33 5 Beckhoff Device Manager ........................ 35 6 Decommissioning ........................... 37 Disconnecting the power supply and cables ................... 37 Disassembly and disposal....................... 38 7 Maintenance ............................ 40... - Page 4 Table of contents 10.1 Service and support ........................ 50 10.2 Approvals ............................ 51 Version: 3.4 C6930...
-
Page 5: Notes On The Documentation
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 and similar applications and registrations in several other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The distribution and reproduction of this document as well as the use and communication of its contents without express authorization are prohibited. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. -
Page 7: Fundamental Safety Instructions
• the operating instructions are in good condition and complete, and always available for reference at the location where the products are used. C6930 Version: 3.4... -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview

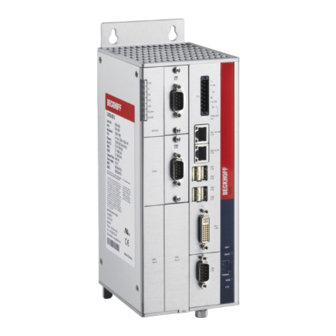

Product overview Product overview The C6930 Industrial PC belongs to the series of compact Industrial PCs for space-saving control cabinet installation. The device is suitable for various applications and requirements. Thanks to the available processors, the Industrial PC can be used for the following applications, among others: •... -
Page 10: Structure
Product overview Structure Fig. 1: Structure Table 1: Key: C6930 structure Component Description Mounting plate Plate for mounting the Industrial PC by its the rear side in the control cabinet Status LEDs Status display for power, TwinCAT, hard disk, fan, User LED, fieldbus activity, fieldbus error... -
Page 11: Interface Description
Product overview Interface description The basic version of the C6930 has the following interfaces: • Power supply (X101) • Ethernet RJ45 (X102, X103) • USB (X104 - X107) • DVI (X108) • RS232 (X109) 3.2.1 Power supply The industrial PC is supplied with a nominal voltage of 24 V. The 8-pin voltage socket (X101) is used for connection to the power supply and the external wiring of the industrial PC. -
Page 12: Ethernet Rj45
Product overview 3.2.2 Ethernet RJ45 The C6930 has two Gigabit LAN ports (X102, X103). The 100Base-T, 1000Base-T and 2500Base-T Ethernet standards enable the connection of corresponding network components and data rates of 100/1000/2500 Mbit/s. The required speed is selected automatically. The RJ45 connection technology with twisted-pair cables is used. The maximum length of the cable connection is 100 m. -
Page 13: Table 5 Led Lighting Speed 100/1000 Mbit/S
Table 6: LED lighting speed 100/1000/2500 Mbit/s Mbit/s 1000 Lights-up orange 2500 Lights up green With the device generation C6930-0080, the two interfaces differ in the possible data transmission rate. The speed for LAN1 is 100/1000 Mbit/s and for LAN2 100/1000/2500 Mbit/s. C6930 Version: 3.4... -
Page 14: Usb
The industrial PC has four USB interfaces (X104-X107). They are used to connect peripheral devices with USB interfaces. The following table shows the interface assignment based on the device generation: Table 7: USB interfaces based on device generation Generation USB interfaces C6930-0060 4x USB 3.0 C6930-0070 4x USB 3.0 C6930-0080 4x USB 3.2 Gen. 2 Each of the four USB interfaces supplies up to 900 mA current and is electronically fused. -
Page 15: Dvi
RS232 standard. The port address and the interrupt used are set with the help of the BIOS setup. X109 Fig. 6: RS232 interface pin numbering Table 10: RS232 pin assignment Signal Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Ground Data Set Ready Request to Send Clear to Send Ring Indicator C6930 Version: 3.4... -
Page 16: Optional Interfaces
In addition, you can extend the industrial PC by PCIe modules by using both of the device's PCIe module slots. The PCIe module is the Beckhoff definition of a small plug-in card format with a PCIe-x1 bus interface. Different PCIe modules are available to you, depending on the device generation. Contact your Beckhoff distributor for the ordering options. -
Page 17: Fig. 8 Access To Plug-In Card Slots
190 mm in length C9900-B511 2 PCI plug-in card slots on passive backplane, integrated in the C6930, for the insertion of PCI plug- in cards up to 190 mm in length C9900-B515 1 PCI and 1 PCIe-x1 plug-in card slot on passive backplane, integrated in the C6930, for the insertion of 1 PCI and 1 PCIe-x1 plug-in card up to 190 mm in... -
Page 18: Fig. 9 Plug-In Card Connections
Product overview Fig. 9: Plug-in card connections The additional plug-in card slots change the dimensions of the industrial PC. The width of the device increases by 70 mm and the depth by 18 mm. Version: 3.4 C6930... -
Page 19: Status Leds
Standby TC (TwinCAT) Stop Mode green Run Mode blue Configuration mode IDE/HDD Access to storage medium green Fans running Fans failed USR (user) programmable FB RUN (fieldbus active) green active not active FB Error (fieldbus error) Error C6930 Version: 3.4... -
Page 20: Name Plate
Product overview Name plate The name plate provides information on the equipment fitted to the industrial PC. The name plate shown here serves only as an example. xxxxxxxx xxxxxxxxxxxxx xxxxxxxxxxxxx Fig. 11: Name plate example Version: 3.4 C6930... -
Page 21: Table 14 Legend C6930 Name Plate
Product overview Table 14: Legend C6930 name plate Description Model: the last four digits indicate the device generation. Serial number (BTN) Date of manufacture Mainboard Main memory Mini PCI slot PCIe module slots Storage media SSD or CFast Power supply unit: 24 V... -
Page 22: Commissioning
3. Check your delivery for completeness by comparing it with your order. 4. Check the contents for visible shipping damage. 5. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Service and support). Version: 3.4 C6930... -
Page 23: Installation In The Control Cabinet
• Mount the device only in the orientations shown in the documents. The C6930 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications. Please observe the environmental conditions prescribed for the operation (see Chapter 9 Technical data [} 49]). -
Page 24: Dimensions
In this case you must use mounting plate 3 or 4 to mount the device. Figure 15 shows the dimensions of the industrial PC with mounting plate 3 and the additional plug-in card slots. 124,5 150,5 159,2 Fig. 15: Dimensions of mounting plate 3 plug-in card slots Version: 3.4 C6930... -
Page 25: Fig. 16 Dimensions Of Mounting Plate 4 Plug-In Card Slots
Commissioning Figure 16 shows the dimensions of the industrial PC with mounting plate 4 and the additional plug-in card slots. 159,2 163,2 Fig. 16: Dimensions of mounting plate 4 plug-in card slots C6930 Version: 3.4... -
Page 26: Installation In The Control Cabinet
However, the mounting procedure is the same. Fig. 17: Control cabinet installation To install the industrial PC in the control cabinet, follow the steps below: 1. Place the fastening screws in the drill holes in the rear panel of the control cabinet. Version: 3.4 C6930... - Page 27 Commissioning 2. Hang the PC on the screws at the marked points of the mounting plate (see Fig. 17). 3. Tighten the fastening screws. ð You have successfully installed the industrial PC in the control cabinet. C6930 Version: 3.4...
-
Page 28: Connecting The Industrial Pc
Wire the industrial PC in the control cabinet in accordance with the EN 60204-1:2006 standard on Protective Extra Low Voltage (PELV) so that one side of the circuit or a point on the power source of this circuit is connected to the protective conductor system. Version: 3.4 C6930... -
Page 29: Installing The Supply Cable
3. Tighten the cable tie and remove the plastic tab (section C). 4. Attach the upper part of the strain relief housing by snapping it onto the lower part (section D). Fig. 18: Assembly of strain relief housing C6930 Version: 3.4... -
Page 30: Grounding Of The Industrial Pc
The functional earth is necessary for the EMC of the device. The functional earth is established by connecting the grounding point on the PC mounting plate to the central grounding point of the control cabinet in which the PC is installed. Version: 3.4 C6930... -
Page 31: Connecting Cables And Power Supply
If you ordered your device with an integrated UPS, then you can connect an external battery pack and install it on a DIN rail near to the PC. Use only Beckhoff battery packs for this: • C9900-U330: universal battery pack for PCs and panel PCs in any configuration When using the C9900-U330 battery pack, you can use the UPS output of the power supply unit (UPS Output). -
Page 32: Fig. 19 Wiring Diagram
The maximum load is 1.4 A (max. 2.5 A from year of manufacture 2016). Once the PC has been de-energized via the UPS software, the UPS output is switched to 0 V. A connected panel is switched off. Version: 3.4 C6930... -
Page 33: Switching The Industrial Pc On And Off
When you switch on the PC for the first time, the optionally pre-installed operating system will be started. For any additional hardware you have connected, you have to install the drivers yourself afterwards. In addition, the Beckhoff Device Manager starts automatically. The Device Manager is a software from Beckhoff that supports you in configuring the PC. - Page 34 Call up the help files either directly from the configuration register by clicking the Help button or start the file under Start > Programs > Beckhoff > UPS software components. The communication between your PC and the UPS takes place via the BIOS API. In addition to the UPS driver, you also need the Beckhoff Automation Device Driver.
-
Page 35: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 36: Fig. 21 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 37: Decommissioning
5. Make a note of the wiring of all data transmission cables if you want to restore the cabling with another device. 6. Disconnect the data transmission cables from the industrial PC. 7. Finally, disconnect the grounding strap. ð You have disconnected the cables and the power supply. C6930 Version: 3.4... -
Page 38: Disassembly And Disposal
• Send plastic parts (polycarbonate, polyamide (PA6.6)) for plastics recycling. • Take metal parts to the metal recycling collection point. • Electronic parts such as fans and circuit boards must be disposed of in accordance with national electronic scrap regulations. Version: 3.4 C6930... - Page 39 Decommissioning • Stick insulating tape over the poles of the CR2032 battery on the motherboard and dispose of the battery via the local battery recycling. C6930 Version: 3.4...
-
Page 40: Maintenance
Maintenance measures increase the efficiency of the device by ensuring long-term functionality. Cleaning and maintenance by replacing certain device components contribute to this. Repair Only the vendor may repair the device. If a repair should be necessary, contact Beckhoff Service (see Chapter 10.1 Service and Support [} 50]). Cleaning... -
Page 41: Table 15 Device Component Replacement Recommendations
NOTICE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff devices are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. - Page 42 • Only remove new electronic components from the ESD packaging (tinted plastic bag) after putting on the wrist grounding strap. • Do not walk around with electronic components in your hand if they are not in ESD packaging. Version: 3.4 C6930...
-
Page 43: Access To Device Components
Fig. 23: Tool-free access to battery and storage media You now have access to the battery (1) and storage media (2) (see fig. 24). Fig. 24: Battery and storage media Fan access You can access the fan cartridge from the underside of the Industrial PC. C6930 Version: 3.4... -
Page 44: Replacing The Battery
Replace battery with R/C (BBCV2), Part. No. CR2032, rated 3 V only. Use of another battery may present a risk of fire or explosion. • Only replace the battery with a replacement battery from Beckhoff Service. • When replacing the battery, make sure that the polarity is correct. -
Page 45: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. BST is a graphical backup and restore program for PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 46: Fig. 27 Exchange Ssd
Chapter 7.2.1 Access to device components [} 43] shows how to access the SSD. Proceed as follows to change the SSD: 1. Remove the SSD from the PC by pulling forcefully on the protruding Beckhoff sticker (see fig. 27). Fig. 27: Exchange SSD 2. -
Page 47: Replacing The Fan
The fan cartridge with the two fans ensures optimal cooling of the industrial PC. Order a new fan cartridge exclusively from Beckhoff. To do this, contact Beckhoff Service (see Chapter 10.1 Service and support). You can replace the fan cartridge while the PC is running. Insert the new cartridge immediately after removing the old one. -
Page 48: Troubleshooting
Measures No function of the industrial PC Missing power supply of the Check the power supply cable industrial PC Call Beckhoff Service Other cause The industrial PC does not boot BIOS setup settings are incorrect Check BIOS setup settings (load... -
Page 49: Technical Data
Technical data Technical data Table 17: Technical data Product designation C6930 Dimensions (W x H x D) 90 x 235 x 121, without mounting plate, without plug- in card slots Weight 2100 g with basic configuration Supply voltage 22-30 V DC (24 V DC power supply unit) -
Page 50: 10 Appendix
33415 Verl Germany Phone: + 49 5246/963-0 email: info@beckhoff.de The addresses of the worldwide Beckhoff branches and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. Version: 3.4 C6930... - Page 51 FCC approvals for Canada FCC: Canadian Notice This device does not exceed the class A limits for radiation, as specified by the Radio Interference Regulations of the Canadian Department of Communications. C6930 Version: 3.4...
- Page 52 Fig. 18 Assembly of strain relief housing ....................Fig. 19 Wiring diagram ..........................Fig. 20 Beckhoff Device Manager - Change passwords ................Fig. 21 Beckhoff Device Manager – Start page ..................Fig. 22 Dismantling the control cabinet ....................Fig. 23 Tool-free access to battery and storage media................
- Page 53 List of tables List of tables Table 1 Key: C6930 structure ........................Table 2 Voltage socket pin assignment ....................Table 3 Controller classification based on device generations ..............Table 4 Ethernet interface pin assignment....................Table 5 LED lighting speed 100/1000 Mbit/s ....................
- Page 55 More Information: www.beckhoff.com/C6930/ Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
