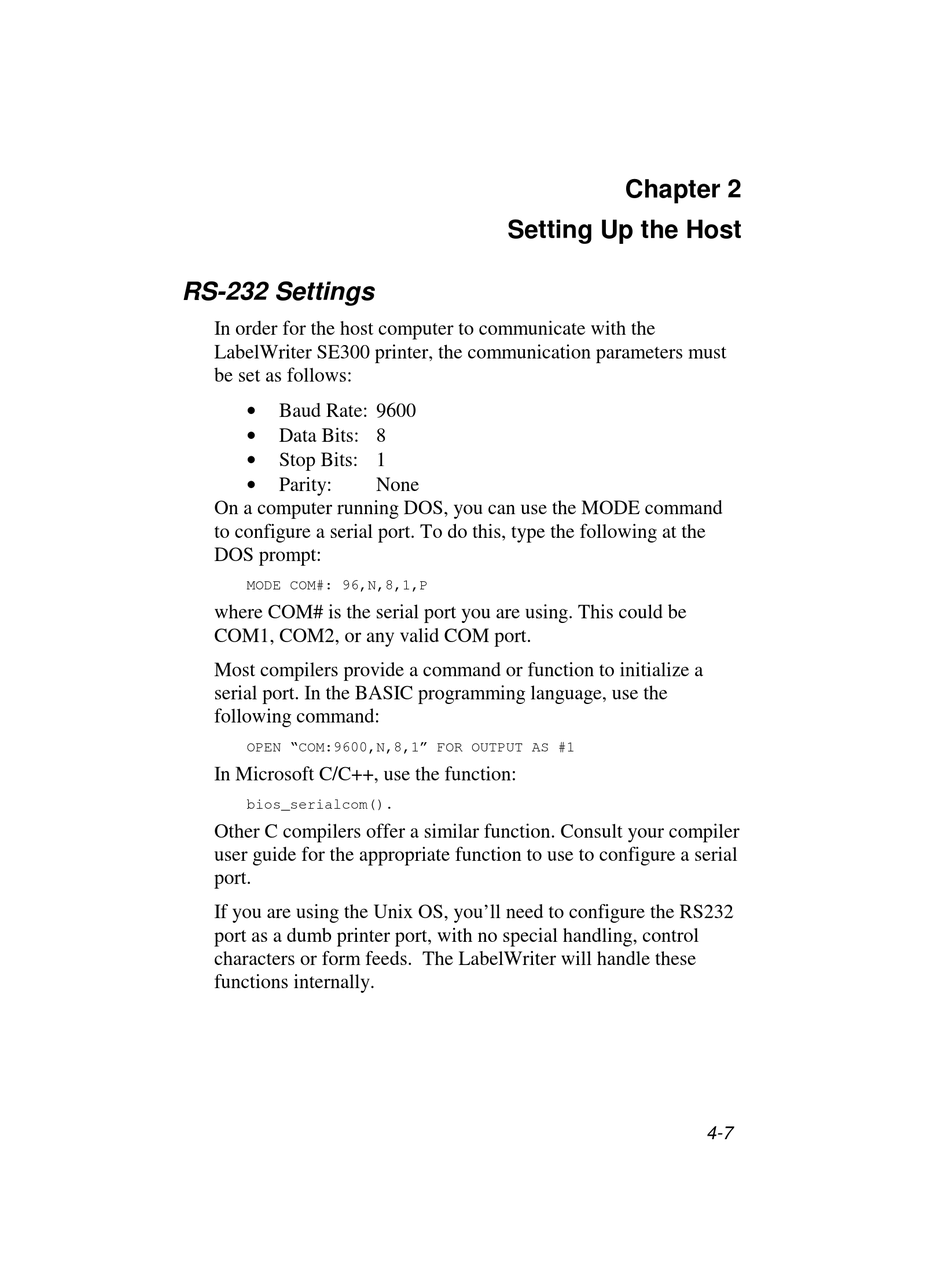

RS-232 Settings

In order for the host computer to communicate with the
LabelWriter SE300 printer, the communication parameters must
be set as follows:
= Baud Rate: 9600
= Data Bits: 8
= Stop Bits: 1
= Parity:
On a computer running DOS, you can use the MODE command
to configure a serial port. To do this, type the following at the
DOS prompt:
MODE COM#: 96,N,8,1,P
where COM# is the serial port you are using. This could be
COM1, COM2, or any valid COM port.
Most compilers provide a command or function to initialize a
serial port. In the BASIC programming language, use the
following command:
OPEN "COM:9600,N,8,1" FOR OUTPUT AS #1
In Microsoft C/C++, use the function:
bios_serialcom().
Other C compilers offer a similar function. Consult your compiler
user guide for the appropriate function to use to configure a serial
port.
If you are using the Unix OS, you'll need to configure the RS232
port as a dumb printer port, with no special handling, control
characters or form feeds. The LabelWriter will handle these
functions internally.
Setting Up the Host
None

Chapter 2

4-7
