Summary of Contents for Dymo 1752265

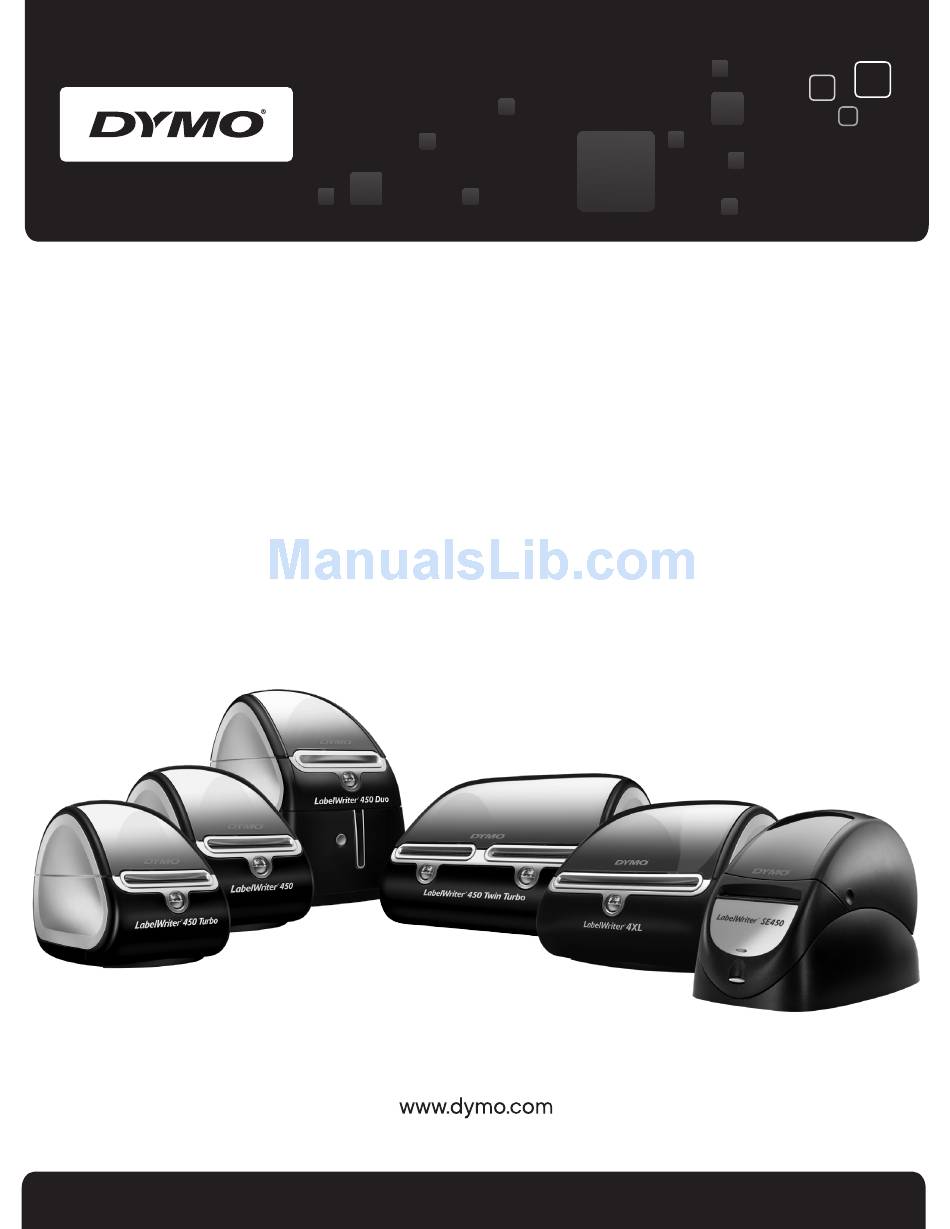

- Page 1 User Guide DYMO LabelWriter Label Printers ® ®...
- Page 2 No part of this document or the software may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of Sanford, L.P. Trademarks DYMO and LabelWriter are registered trademarks of Sanford, L.P. All other trademarks are the property of their respective holders.
-
Page 3: Table Of Contents
Contents About the LabelWriter Printer ............1 LabelWriter Printer Features . -
Page 5: About The Labelwriter Printer
Chapter 1 About the LabelWriter Printer Congratulations on purchasing a DYMO LabelWriter label printer. Your LabelWriter printer will give you years of reliable label printing. We encourage you to take a few minutes to review how to use and care for your printer. - Page 6 About the LabelWriter Printer Serial number Top cover DC power connector connector Label guide Label roll Reverse label button Label spool 00000-0000000 Form-feed button and status light Label release Label feed path Cable channels and tear bar LabelWriter 450 Twin Turbo Top cover Label roll DC power...
-
Page 7: System Requirements
Microsoft Word, Excel, Outlook, ACT! (US only), and QuickBooks (US only) with DYMO Label Add-ins that are installed when you install DYMO Label v.8 software. See the DYMO Label v.8 online Help or Software User Guide for more information on using these features. - Page 8 About the LabelWriter Printer LabelWriter CD. The SDK provides COM and .NET interfaces. For more information, visit the Developer Program page on the DYMO web site. www.dymo.com. You can check the Developer’s forum on the DYMO Web site at www.dymo.com for the latest news.
-
Page 9: About Labels
The LabelWriter Twin Turbo printer holds two label rolls, so you can print two types of labels without having to change the label roll. For example, load address labels on one side and DYMO Stamps postage labels on the other side. - Page 10 About Labels Important! In order for the labels to feed properly during printing, pay attention to the following when loading labels on the spool and into the printer: • The label spool guide must be pushed flush against the label roll, with no gap. See Figure 2. •...
-
Page 11: Ordering Labels
Figure 6 Ordering Labels DYMO offers a full range of labels for the LabelWriter printers, including labels suited for addressing envelopes, shipping packages, naming file folders, labeling all sorts of media, printing name badges, and much more. A complete listing can be found in the label catalog that was supplied with this printer and at the DYMO Web site: www.dymo.com. - Page 12 About Labels This page intentionally left blank for double-sided printing.
-
Page 13: Printing Over A Network
Chapter 3 Printing Over a Network This chapter describes how to print to a DYMO label printer over a network. The topics covered in this chapter are: • “Printing to a Shared Printer from Windows” • “Printing to a Shared Printer from Mac OS”... -
Page 14: Adding A Network Printer
Adding a Network Printer Before you can print to a shared network printer, you need to install DYMO Label Software (DLS) on your local computer and then add each network label printer you wish to use. -
Page 15: Printing To A Shared Printer From Mac Os
System Administrator. Sharing a Printer on a Network These instructions assume that you have already installed DYMO Label Software on the local computer. See the printer’s Quick Start Guide for information. Before printing to a shared printer, you first need to share the printer on the local computer. -
Page 16: Adding A Shared Printer
Close the Print & Fax dialog box. Adding a Shared Printer Before you can printer to a network printer, you need to install DYMO Label on the remote computer. If you want to install more than one shared DYMO label printer, you must add each additional label printer. -
Page 17: Using A Print Server
Close the Printer List dialog box. Using a Print Server You can print over a network to a DYMO label printer connected to a wired or wireless USB print server. DYMO now offers a LabelWriter Print Server to easily share your LabelWriter printer on a network. -
Page 18: Printer Firmware Versions That Support Print Servers
DYMO LabelWriter Twin Turbo xxxxx-2013955 93085v0M, 93492v0M LabelWriter 450 Printers: All LabelWriter 450 printers include firmware that supports print servers. If your printer has firmware that does not support print servers, contact DYMO technical support for assistance on updating the printer’s firmware. -
Page 19: Caring For Your Printer
LabelWriter cleaning card. One cleaning card is included in your printer package. To purchase additional cleaning cards, visit www.dymo.com or call (800) 426-7827. To keep your LabelWriter printer working properly, you should clean it from time to time. Dusting the outside of the printer occasionally will help keep foreign matter from getting inside the printer. - Page 20 Caring for Your Printer To clean the tape print head (LabelWriter Duo only) Press the button on the front of the label cassette tray. Remove the label cassette. Use a small, soft brush or cotton swab to wipe away paper dust and other stray particles from the inside of the tray.
-
Page 21: Getting Help
Serial cable is connected and printer is in configuration mode. For complete information about programming and using the LabelWriter SE450 printer, refer Flashing Green to the LabelWriter SE450 Technical Reference Guide, available from the Developers Program page on the DYMO Web site. www.dymo.com... -
Page 22: Performing A Printer Self-Test
• A dirty print head First, make sure you are using DYMO-branded labels. Do not use third-party labels because the thermal coating on other labels has a different sensitivity than DYMO-branded labels. Also, the perforated holes between the labels made by other manufacturers are frequently not detectable by LabelWriter printers. -
Page 23: Printer Does Not Print Or Stops Printing
See "Loading Labels" on page 5. • Make sure you are using DYMO-branded labels. The perforated holes between the labels made by other manufacturers are frequently not detectable by DYMO printers. When the perforations are not detected, the labels will not feed correctly. -
Page 24: Limited Warranty
LabelWriter printer. You can also contact DYMO Technical Support by phone or fax from 9 am to 8 pm, Eastern time. Phone: (203) 588-2500 Fax: (203) 588-2560 or (203) 355-7060 Visit the Support area of our Web site at www.dymo.com... -
Page 25: Technical And Environmental Information
Chapter 6 Technical and Environmental Information This chapter contains technical and certification information for the LabelWriter printer. Technical Specifications 450 Duo 450 Duo 450 Twin Turbo Turbo (Label Printer) (Tape Printer) Print Method Direct Thermal Thermal Transfer 300 dots per inch (11.8 dots per mm) 180 dots per inch Print Resolution (7.09 dots per mm) -
Page 26: Labelwriter Se450 Printer Technical Specifications
For complete information about connecting the LabelWriter SE450 printer to the host computer or other device, and for information about programming and using the LabelWriter SE450 printer, refer to the LabelWriter SE450 Technical Reference Guide, available from the Developers Program page on the DYMO Web site (www.dymo.com). SE450 Print Method... -
Page 27: Declaration Of Conformity
Declaration of Conformity Description: Direct Thermal Printer Model: DYMO LabelWriter 450, 450 Turbo, 450 Twin Turbo, and 4XL This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC (Federal Communications Committee) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 28: Environmental Information
The crossed-bin symbol marked in your device invites you to use those systems. If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. You can also contact DYMO for more information on the environmental performances of our products. Documentation Feedback We are constantly working to produce the highest quality documentation for our products.
