Installing the Device
2.4.1 Mounting the Device on a DIN Rail
Note
For detailed dimensions of the device with either DIN rail or panel hardware installed,
refer to
2.4.1 Mounting the Device on a DIN Rail
The RUGGEDCOM RS900W can be ordered with a DIN rail adapter preinstalled on the
back of the chassis. Use the adapter to mount the device to a standard 35 mm (1.4
in) IEC/EN 60715 or TS35 DIN rail.
Mounting the Device
To mount the device to a DIN rail, do the following:
1.
2.
10
"Dimension Drawings (Page
Hook the top teeth of the adapter onto the DIN rail.
Note
The adapter features a sliding release with a slot at the bottom for a flathead
screwdriver.
1
DIN Rail
1
DIN Rail Adapter
2

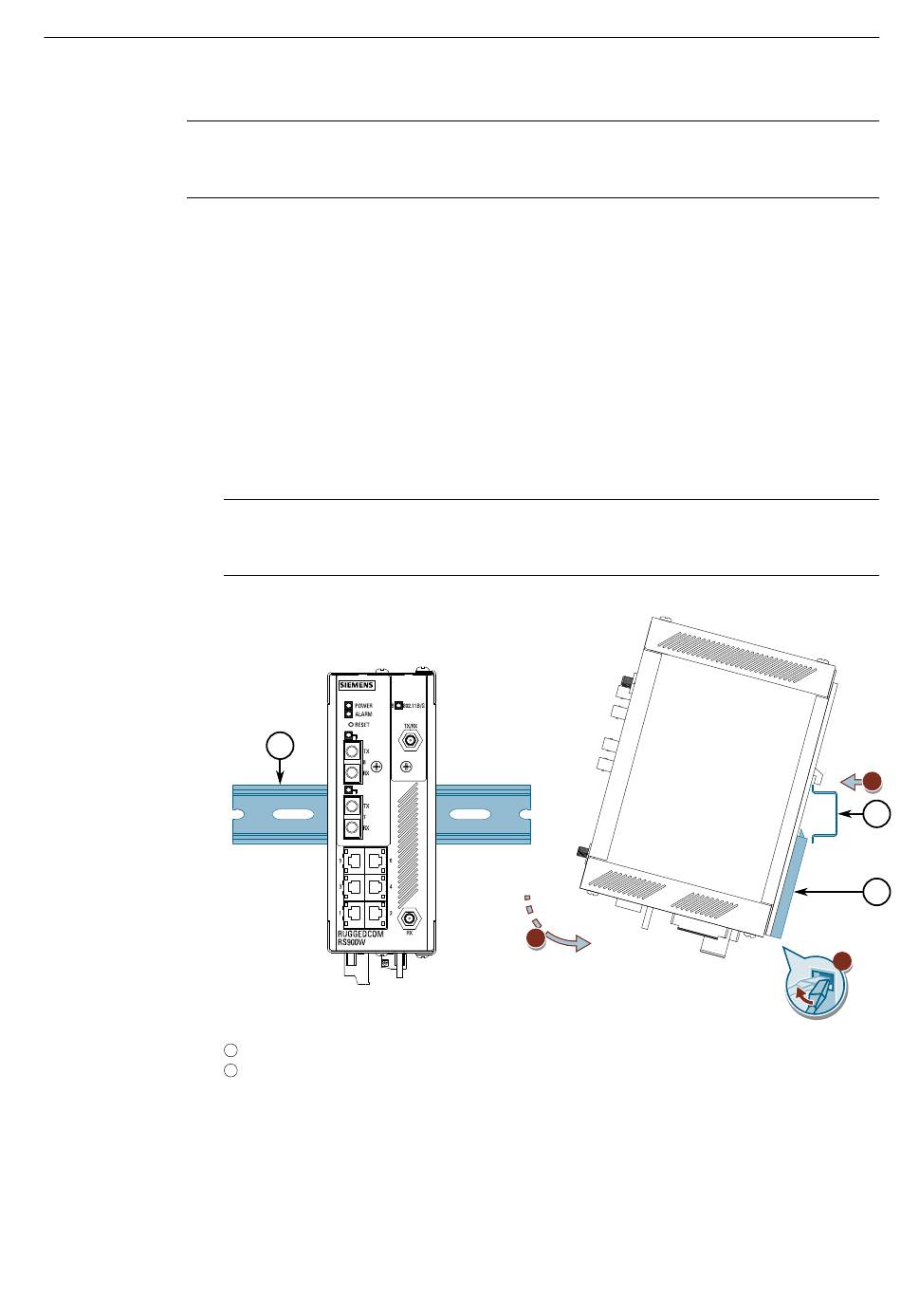

Figure 2.1 Mounting the Device to a DIN Rail
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
32)".
3
Installation Manual, 04/2021, C79000-G8976-1028-13
1
1
2
2
RUGGEDCOM RS900W
