2.
3.
4.
2.6
Connecting the Failsafe Alarm Relay
The failsafe relay can be configured to latch based on alarm conditions. The NO
(Normally Open) contact is closed when the unit is powered and there are no active
alarms. If the device is not powered or if an active alarm is configured, the relay
opens the NO contact and closes the NC (Normally Closed) contact.
Note
Control of the failsafe relay output is configurable through RUGGEDCOM RS900W .
One common application for this relay is to signal an alarm if a power failure occurs.
For more information, refer to the RUGGEDCOM ROS Configuration Manual for the
RUGGEDCOM RS900W.
To connect the failsafe alarm relay, do the following:
1.
RUGGEDCOM RS900W
Installation Manual, 04/2021, C79000-G8976-1028-13

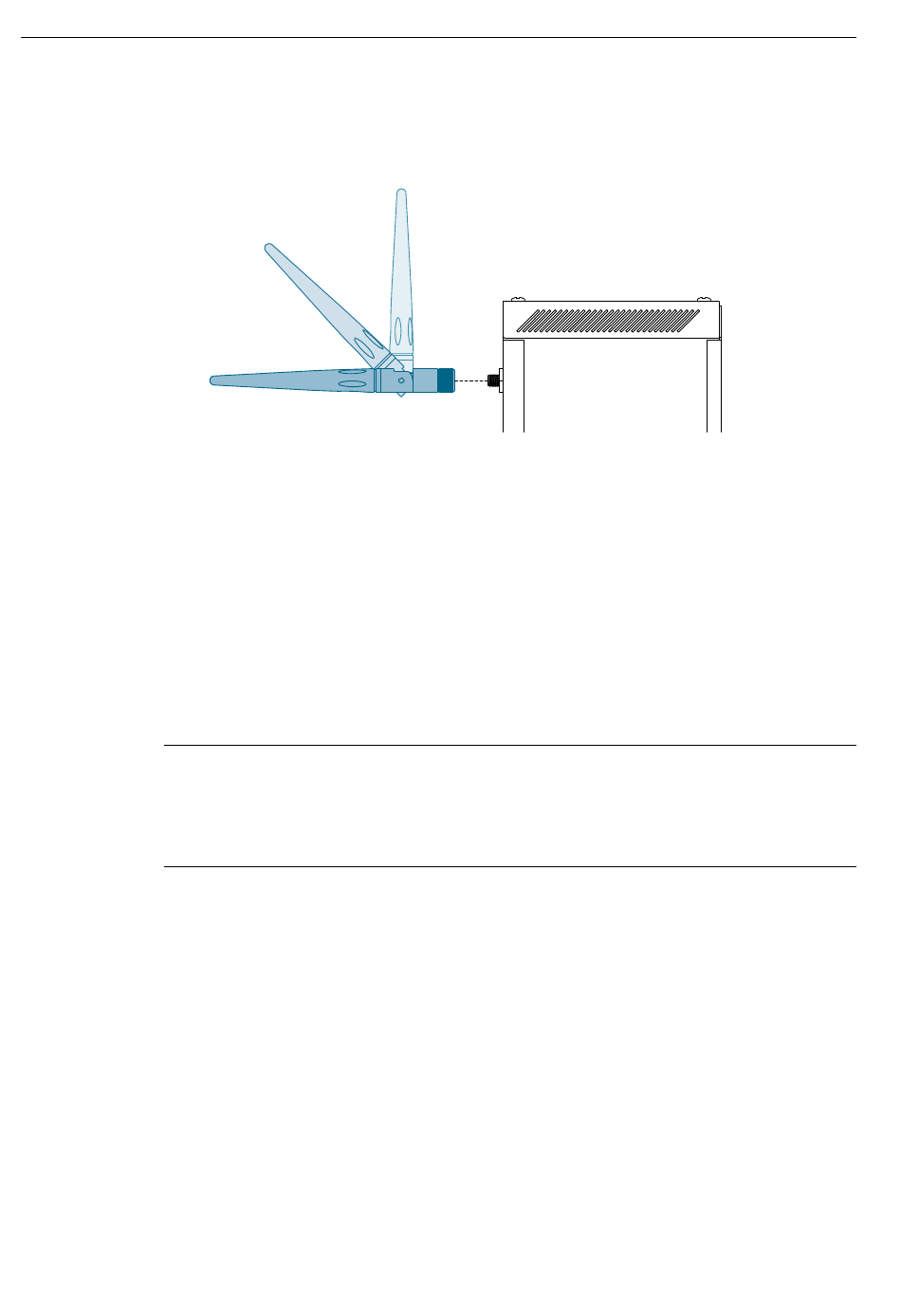

Align the antenna connector with the wireless port (either TX/RX or RX) and
thread the antenna onto the port. Make sure the connection is finger tight.
Figure 2.4
Antenna Installation
Repeat
Step 2
for the second antenna.
Adjust the position of each antenna as needed.
Insert the failsafe alarm relay terminal block into the device and tighten the
screws.
Installing the Device
2.6 Connecting the Failsafe Alarm Relay
13
