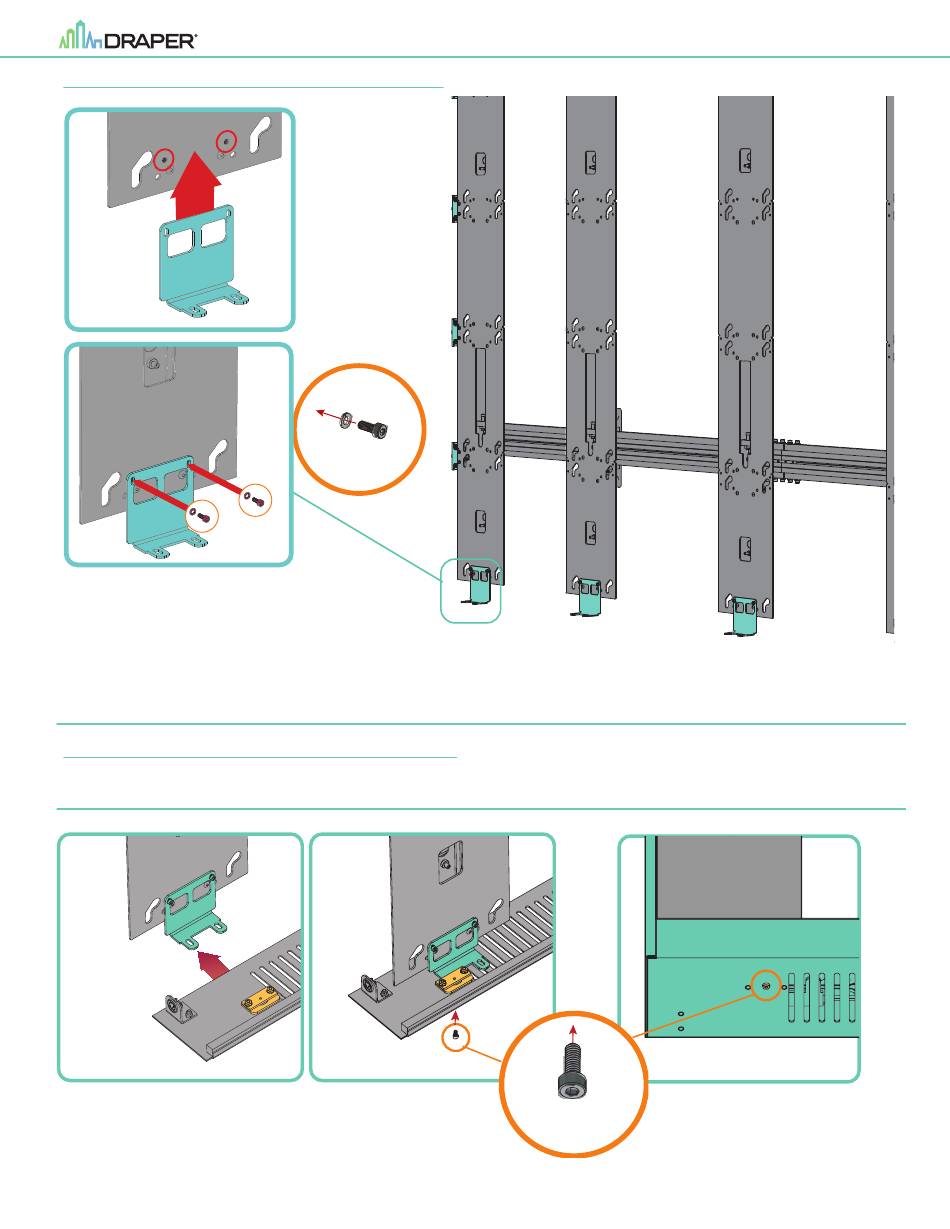

Section 12.4 - Installing Bottom Trim brackets
1
2
Section 13 - Installing Bottom Trim
Section 13.1 - Installing BOTTOM Trim Sections
BOTTOM TRIM
1
for LED Panels
™
SPLIT LOCK
M4
WASHER -
SOCKET HEAD
SCREW
M4-0.7x10mm
(must be done prior to LED Installation)
2
BOTTOM VIEW
SOCKET HEAD
SCREW
M4-0.7x8mm
