Draper Foundation Manual

Draper Foundation Manual

For unilumin upanels left to right installation
Hide thumbs Also See for Foundation:

Advertisement

Quick Links

Download this manual

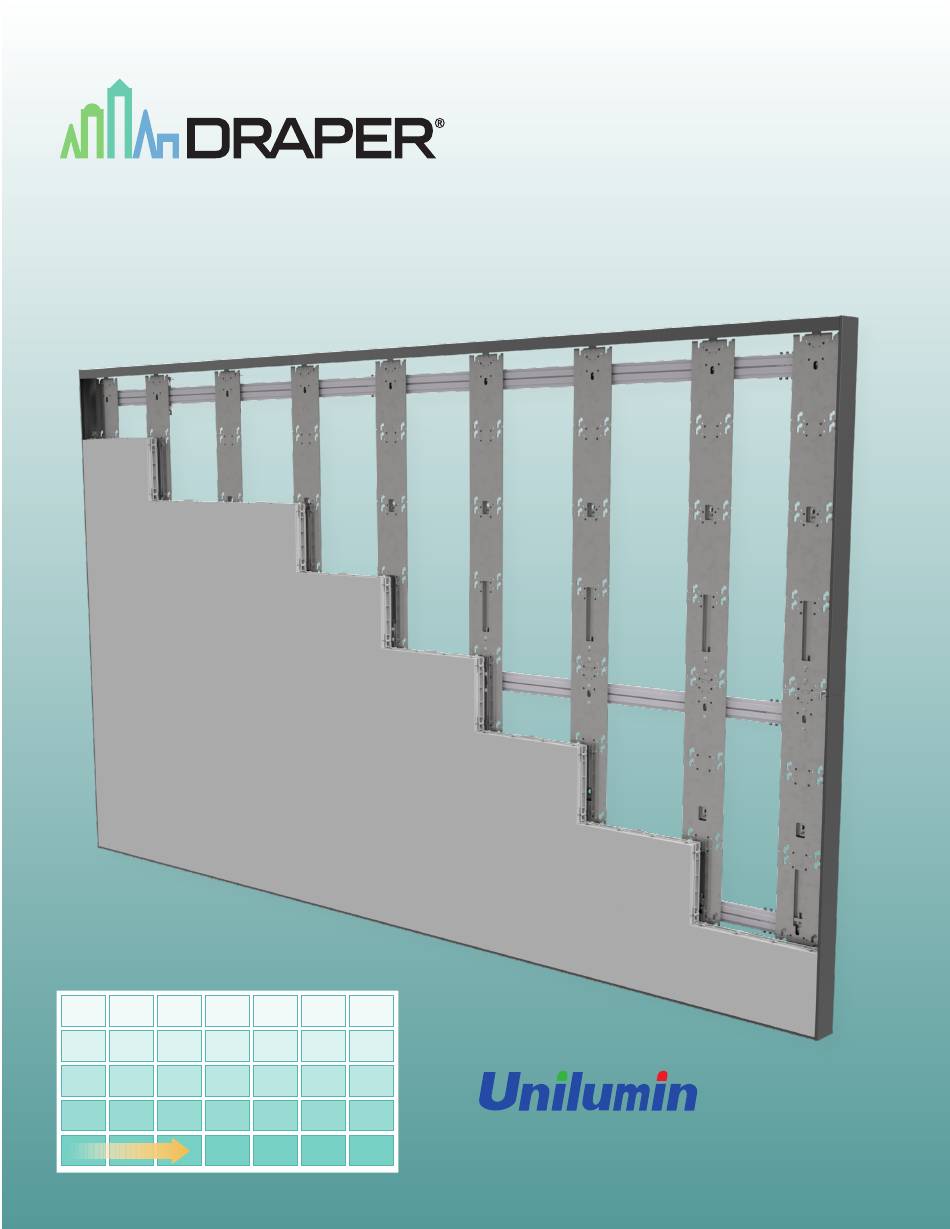

FOUNDATION
LEFT to RIGHT
ATION
for
Left to Right Installation
™
™
UpanelS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Foundation and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper Foundation

Summary of Contents for Draper Foundation

  • Page 1 FOUNDATION ATION ™ ™ UpanelS Left to Right Installation LEFT to RIGHT...

  • Page 2: Important Safety Information

    Do not affix the unit to wall or ceilings that have inadequate strength to permanently hold the unit during use. It is the owner’s and installer’s responsibility to confirm the wall to which the unit attaches is sufficient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not responsible for improper installation, application, testing or workmanship related to the product at place of installation.
  • Page 3 HEX WRENCH 3mm & 5mm If you have any difficulties installing or servicing your Foundation for LED Panels, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FDN_Unilumen_UpanelS_Inst20...

  • Page 4: Section 2 - Components

    4 of 28 Foundation for LED Panels ™ Section 2 - Components RAIL CONNECTOR RAIL CONNECTOR Top / Bottom Slot WALL Top / Bottom Slot ADJUSTMENT BRACKETS RAIL CONNECTOR Differential LED Cabinet RAIL CONNECTOR Front Slot Screw M10 Spring-Loaded LED...
  • Page 5 5 of 28 Foundation for LED Panels ™ Standard Array Size Component Part # 4 X 4 5 X 5 6 X 6 8 X 8 10 X 10 12 X 12 LED Panels By Others C002.1603 WALL MOUNTING BRACKETS...
  • Page 6 6 of 28 Foundation for LED Panels ™ TOP CENTER TRIM SECTION Section 2 - Trim Frame Components (continued) TOP LEFT TRIM SECTION TOP RIGHT TRIM SECTION LEFT TOP RIGHT TOP TRIM TRIM SECTION SECTION TOP CENTER TRIM SECTION...
  • Page 7 7 of 28 Foundation for LED Panels ™ Standard Array Size Trim Component Part # 4 X 4 5 X 5 6 X 6 8 X 8 10 X 10 12 X 12 TOP/SIDE TRIM BRACKETS C002.1639.02SA Top Trim Support Bracket Trim Attachment Bracket (Top &...
  • Page 8 Section 3 - Determining Mounting Location Section 3.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails The Foundation Wall Brackets must be securely anchored to the wall. If mounting to drywall/gypsum board wall, all mounting hardware (by others) must be anchored to a vertical stud.
  • Page 9 9 of 28 Foundation for LED Panels ™ Section 3.2 - For LED arrays 7 panels or higher - 3 Horizontal Rails 1. Mark the location of the Bottom Left Corner of the viewing area. 2. Measure up 19.8”...
  • Page 10 10 of 28 Foundation for LED Panels ™ Section 4 - Assembling Horizontal Rails The horizontal rails must be assembled prior being secured to the wall. To assemble the Horizontal rails: MAX. WALL BRACKET SPACING 32” (813mm) Align Outer Wall Brackets Align Outer Wall Brackets within 24”...
  • Page 11 11 of 28 Foundation for LED Panels ™ Section 5 - Hanging Horizontal Rails Section 5.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails 1. Using the top keyhole slots of the outer wall mounting brackets, hang the bottom...
  • Page 12 12 of 28 Foundation for LED Panels ™ Section 6 - Adjusting and Aligning Horizontal Rails TOP VIEW - CONCAVE WALL SIDE Laser Line Laser Line TOP VIEW - CONVEX WALL WALL SIDE Laser Line Laser Line 53.835” (1367mm) 1.
  • Page 13 13 of 28 Foundation for LED Panels ™ Section 7 - Securing Inner Wall Brackets 1. Using a 3mm Hex Wrench adjust all remaining wall mounting brackets. Ensure that each bracket is flush to the wall and secure to the wall with the appropriate mounting hardware.
  • Page 14 14 of 28 Foundation for LED Panels ™ Section 8.2 - Vertical Rail Assembly - For LED arrays 7 panels or higher - 3 Horizontal Rails Section 8.2.1 - Lower Section of Vertical Rail Assembly 1. Insert Vertical Connector into TOP of the Lower Vertical Rail section and secure with provided hardware...
  • Page 15 15 of 28 Foundation for LED Panels ™ Section 9 - Inserting Front Rail Connector and Vertical Rail Fasteners Section 9.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails 1. Insert horizontal rail connector and vertical rail fasteners into the top and bottom horizontal rails.
  • Page 16 16 of 28 Foundation for LED Panels ™ Section 9.2 - For LED arrays 7 panels or higher - 3 Horizontal Rails 1. Insert horizontal rail connector and vertical rail fasteners into the top, middle and bottom horizontal rails.
  • Page 17 17 of 28 Foundation for LED Panels ™ Section 10 - Attaching Vertical Rails Section 10.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails 1. Hang the Vertical Rails on the top horizontal rail and space evenly.
  • Page 18 18 of 28 Foundation for LED Panels ™ Section 10.2 - For LED arrays 7 panels or higher - 3 Horizontal Rails Section 10.2.1 - Attaching Bottom Vertical Sections 1. Lift each Vertical Rail and position it on the middle rail.
  • Page 19 19 of 28 Foundation for LED Panels ™ Section 11 - Adjusting Verticals Section 11.1 - Y - Axis Adjustment Section 11.1.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails 1. Locate the highest Vertical Rail and shine a laser level line across utilizing the laser level notch.
  • Page 20 20 of 28 Foundation for LED Panels ™ Section 11.2 - X - Axis Adjustment (Squaring Verticals with provided Alignment Tool) Section 11.2.1 - For LED arrays up to 6 panels high - 2 Horizontal Rails 1. Shine a laser line at the left edge of the...
  • Page 21 21 of 28 Foundation for LED Panels ™ Section 11.3 - Z - Axis Adjustment 1. Using a 3mm hex wrench, adjust each Wall Adjuster Bracket until it contacts the wall. 2. Use the clearance hole in the vertical rail to allow for a socket to drive a lag screw (by others) into the wall.
  • Page 22 22 of 28 Foundation for LED Panels ™ Section 12 - Attaching Trim Brackets Section 12.1 - Installing TOP Trim Brackets SPLIT LOCK WASHER - SOCKET HEAD SCREW M4-0.7x10mm Section 12.2 - Installing TOP Trim Support Brackets (Trim Support Bracket Locations will vary depending on array size. Refer to Section 9.)

  • Page 23: Bottom View

    23 of 28 Foundation for LED Panels ™ Section 12.4 - Installing Bottom Trim brackets SPLIT LOCK WASHER - SOCKET HEAD SCREW M4-0.7x10mm Section 13 - Installing Bottom Trim (must be done prior to LED Installation) Section 13.1 - Installing BOTTOM Trim Sections...
  • Page 24 24 of 28 Foundation for LED Panels ™ Section 14 - Attaching LED Panels LED Cabinets NOTE: All trim brackets and the Bottom Trim Panels MUST be installed (Section 13) before installing LED CABINETS Section 14.1 - Attaching Spring-Loaded Fasteners 1.
  • Page 25 25 of 28 Foundation for LED Panels ™ 2. Attach the next LED cabinet direct to the right of the first. Continue until the first row is complete. 3. Working from left to right, attach the row of LED cabinets.
  • Page 26 26 of 28 Foundation for LED Panels ™ Section 15 - Attaching Trim to Trim Brackets TOP TRIM LED CABINETS REMOVED FROM VIEW FOR CLARITY SIDE TRIM...
  • Page 27 27 of 28 Foundation for LED Panels ™ Section 16 - Assembled Dimensions for Common Array sizes Foundation for Unilumen UpanelS - Dimensions Array Size DIM A DIM B DIM C DIM D DIM E 4x4* " " "...
  • Page 28 FOUNDATION ™...
