Draper FOUNDATION Installation Manual page 26

Foundation

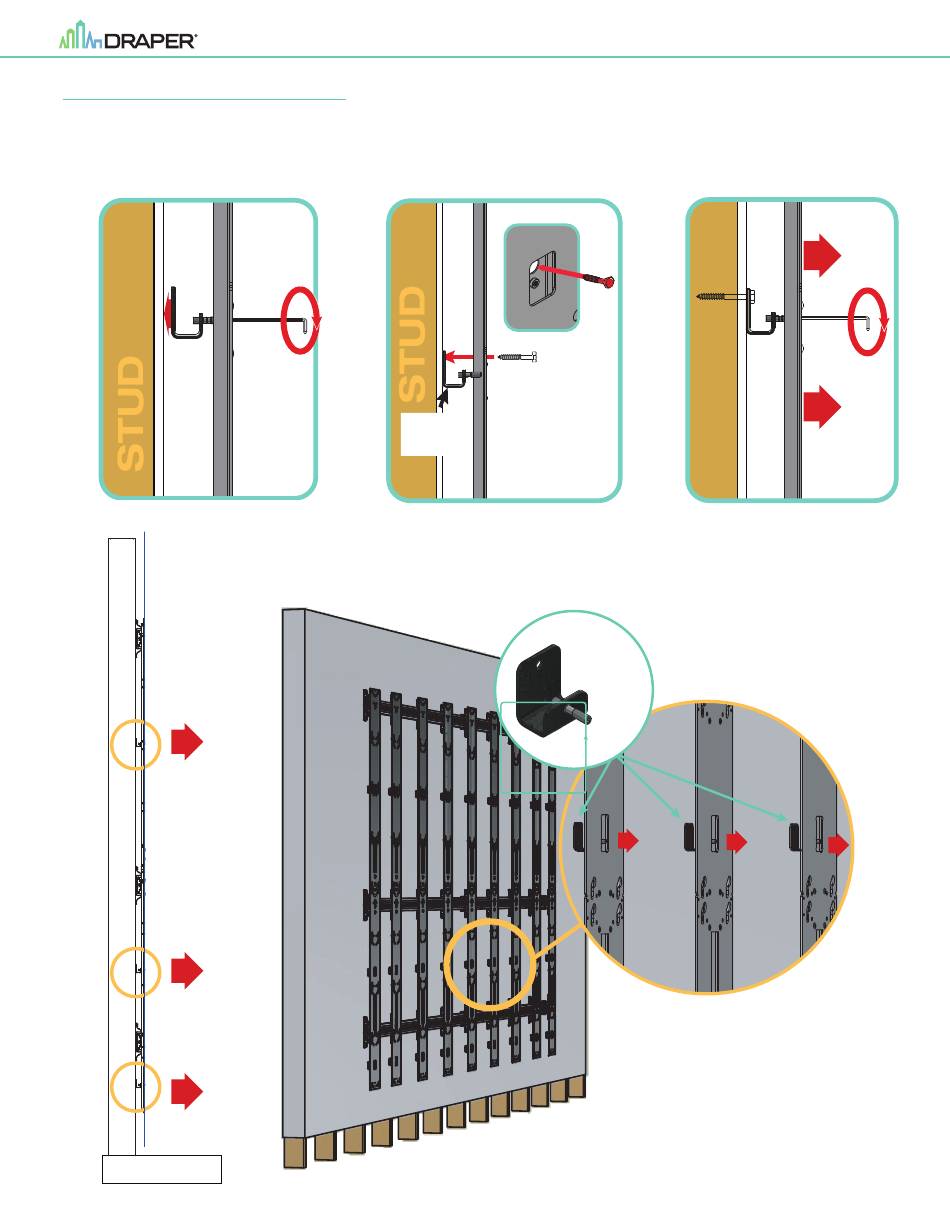

Section 11.3 - Z - Axis Adjustment
1. Using a 3mm hex wrench, adjust each Wall Adjuster Bracket until it contacts the wall.
2. Use the clearance hole in the vertical rail to allow for a socket to drive a lag screw
3. Rotate the differential screw to push or pull the vertical rail to be straighter if required.
1
Adjust Wall Adjustment Brackets Until All Vertical Rails are flush.
Bubble Level recommended.
for LED Panels
™
2
3mm Hex
Wrench
ADJUSTMENT
BRACKET
into the wall.
(by others)
WALL ADJUSTMENT BRACKET
Mounting Access Hole
MOUNTING
HARDWARE
(by Others)
WALL
VERTICAL
RAIL
WALL
ADJUSTMENT
BRACKETS
Differential
Screw
3mm Hex Wrench
page 26 of 32
3
3mm Hex
Wrench
