Foundation

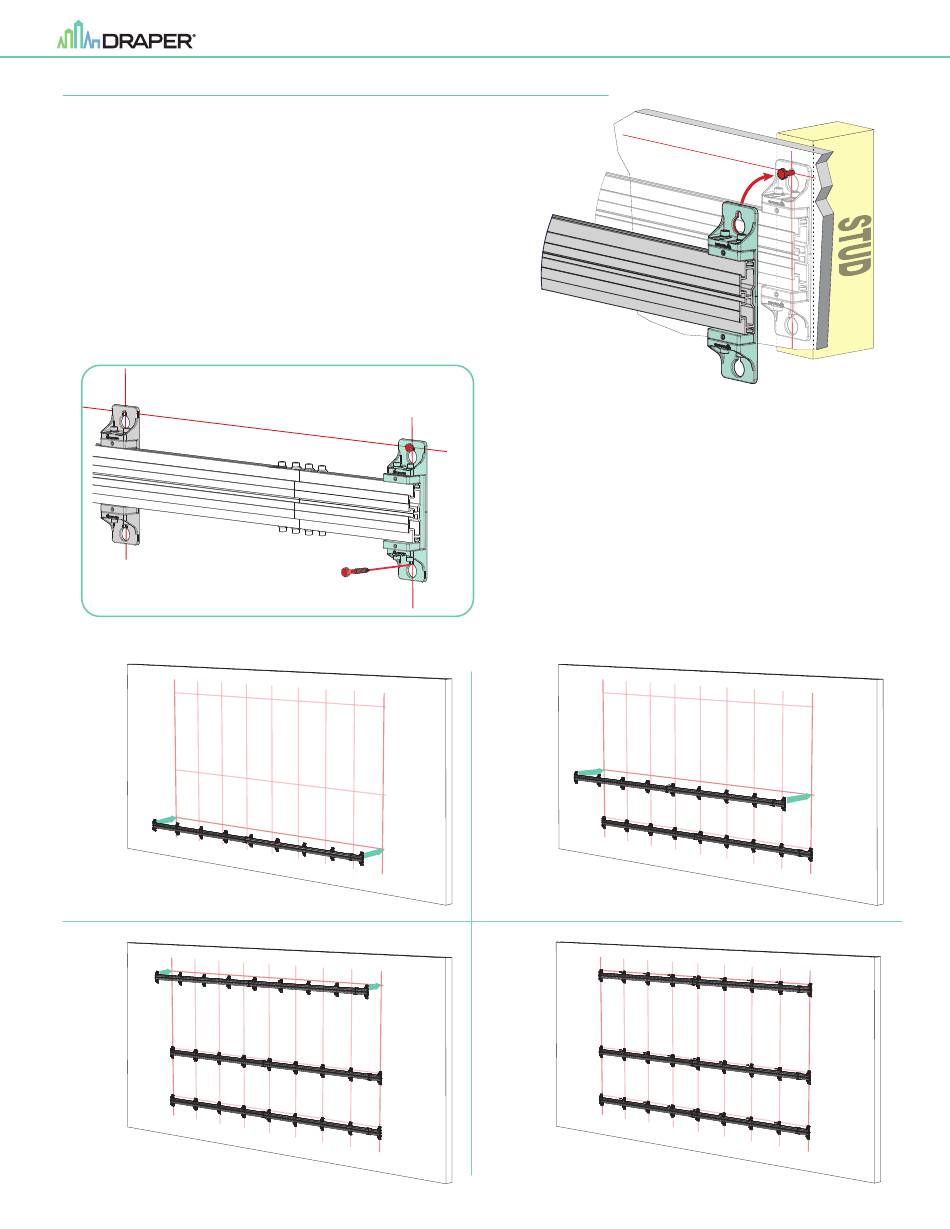

Section 5.2 - For LED arrays 7 panels or higher - 3 Horizontal Rails
1. Using the top keyhole slots of the outer wall mounting brackets, hang the BOTTOM
horizontal rail on the pre-installed mounting hardware
2. Using the top keyhole slots of the outer wall mounting brackets, hang the MIDDLE
horizontal rail on the pre-installed mounting hardware.
3. Using the top keyhole slots of the outer wall mounting brackets, hang the TOP
horizontal rail on the pre-installed mounting hardware.
4. Secure the outer wall mounting brackets on each side of the horizontal rails.
Leave the inner brackets loose for now.
W A L L
Inner Brackets
Leave loose for now.
1
3
for LED Panels
™
.
(see Section, 3 Step 5)
Secure Outer Bracket
on each side of each rail.
W A L L
2
4
