Figure 13. Jp6 [7-8]: 5V_Usb_C Power Source - ST STM32U5 User Manual

UM2861
Power supply and power selection
®
5V_USB_C is the DC power supply connected to the CN15 user USB Type-C connector. In this case, the JP6
jumper must be set on [7-8] to select the 5V_USB_C power source.
5V_USB_C configuration: The JP6 jumper must be set on [7-8] as shown in Figure 13.

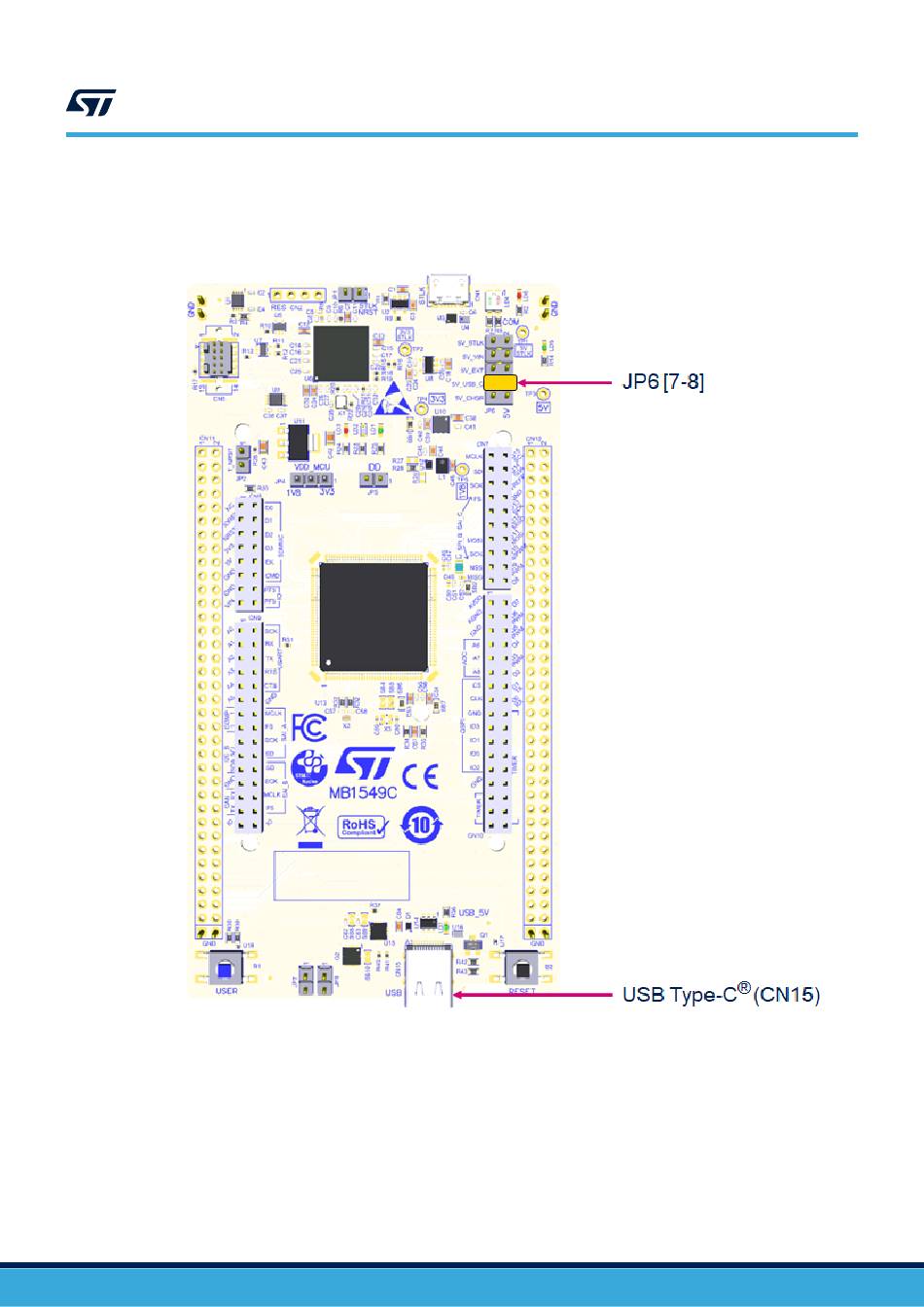

Figure 13. JP6 [7-8]: 5V_USB_C power source
