Installing the Device
2.5.2 Connecting Low DC Power
2.
3.
4.
20
Connect the positive wire from the power source to the positive terminal on the
terminal block.
4
1
3 5
Pluggable Terminal Block
1
Screw-Type Terminal Block
2
Positive (+) Terminal for PS1
3
Chassis/Ground Terminal for PS1
4
Negative (-) Terminal for PS1
5
Positive (+) Terminal for PS2
6
Chassis/Ground Terminal for PS2
7
Negative (-) Terminal for PS2
8

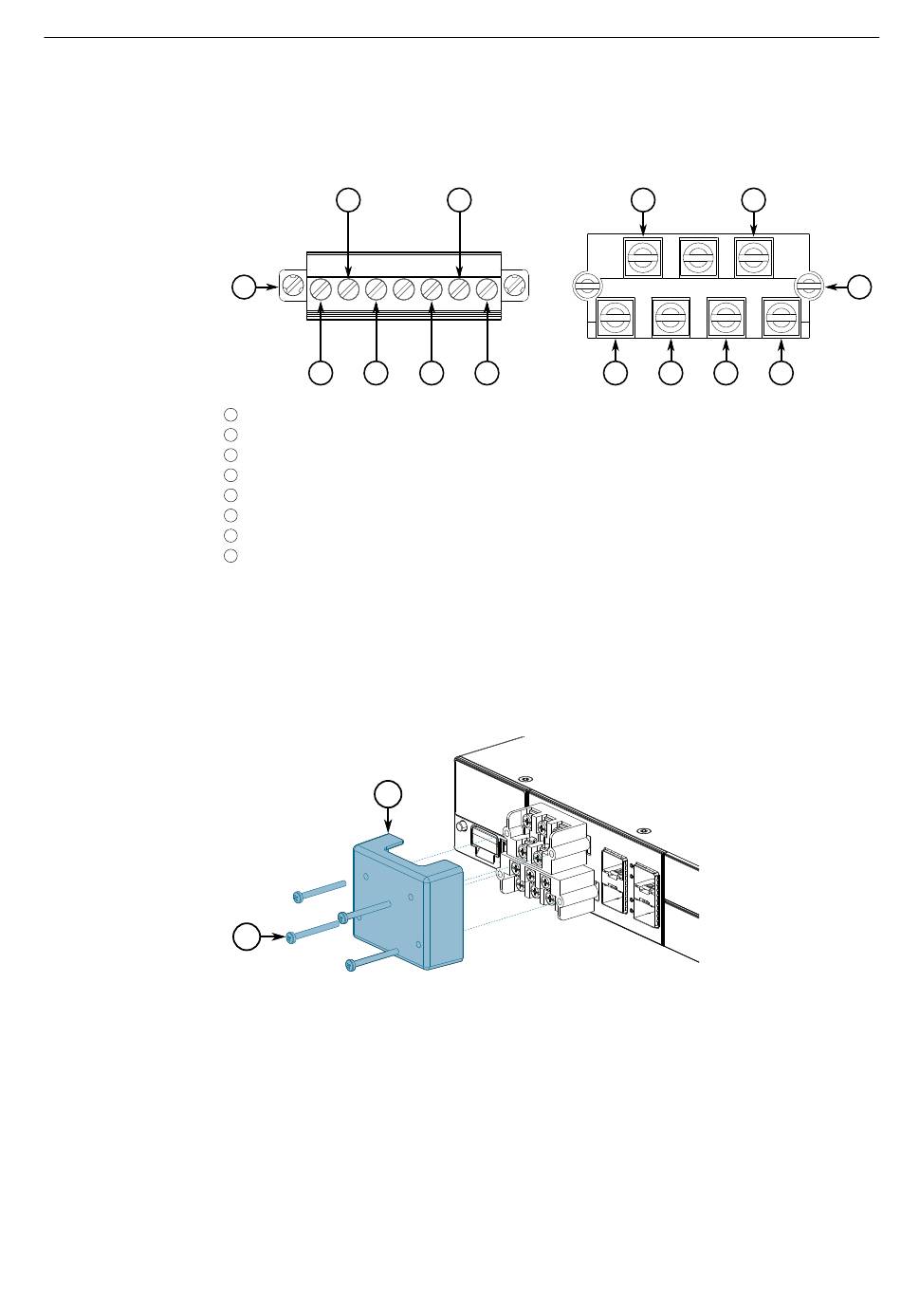

Figure 2.11 DC Terminal Block Wiring
Connect the negative wire from the power source to the negative terminal on
the terminal block.
For pluggable terminal blocks, install the safety cover.
1
2
Figure 2.12 Assembling the Safety Cover
7
6 8
4 7
3 5 6 8
RUGGEDCOM RST2228P
Installation Manual, 07/2021, C79000-G8976-1403-13
