Installing the Device
2.3.2 Mounting the Device to a Panel
To secure the device to a rack, do the following:
1.
2.
3.
2.3.2

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RST2228P can be ordered with panel
adapters for each side of the chassis. The adapters allow the device to be attached to
a panel using screws.
12
Secure the mounting adapters to both sides of the chassis.
Mounting Adapter
1
Screw
2

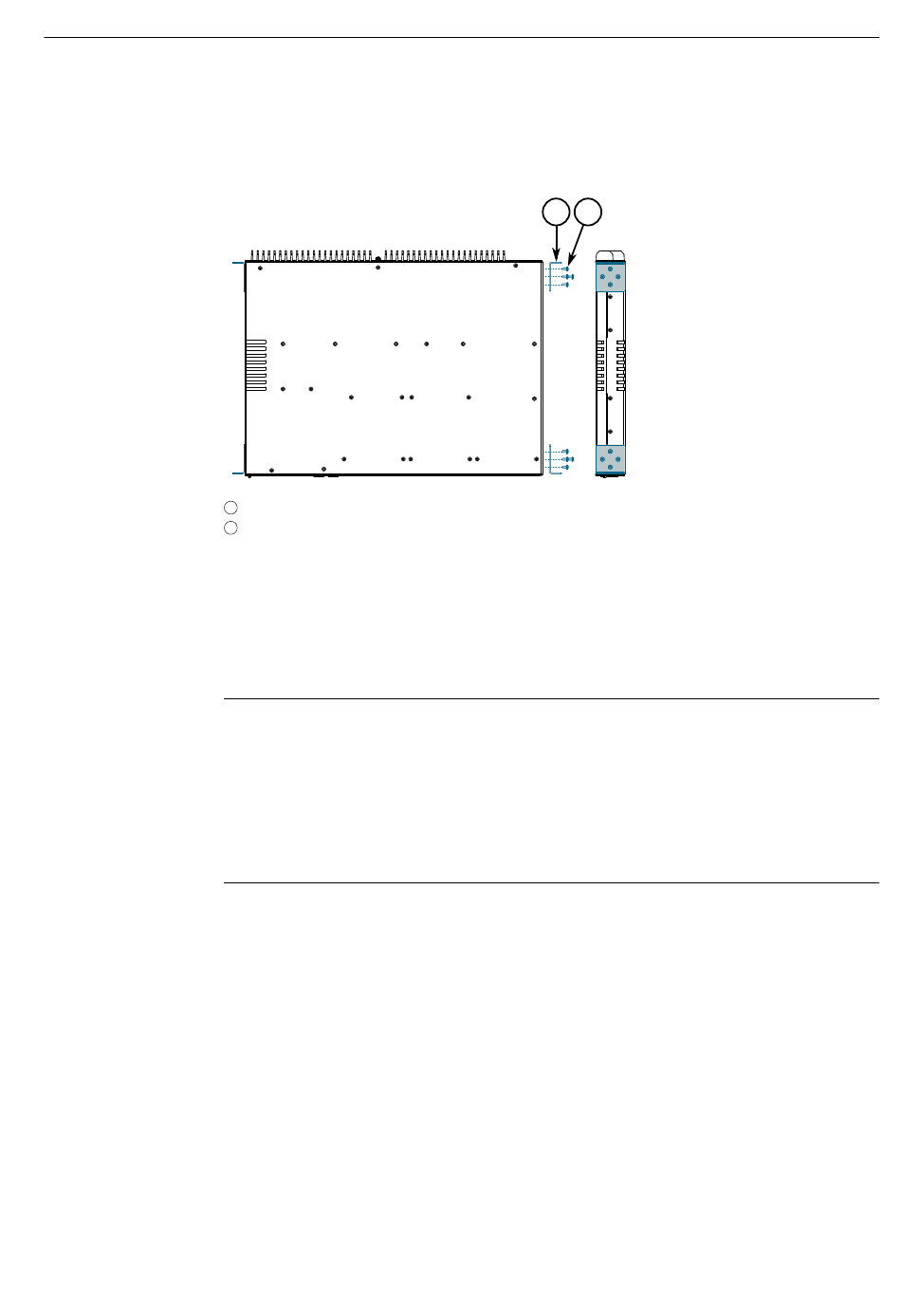

Figure 2.1 Installing the Mounting Adapters
Insert the device into the rack. To make the modules and ports accessible from
the front, insert the power supply side of the device first. Reverse the orientation
to have the power supplies, management ports and LEDs accessible from the
front.
Note
Since heat within the device is channeled to the enclosure, it is recommended
that 1 rack-unit of space, or 44 mm (1.75 in), be kept empty above the device.
This allows a small amount of convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a
reduction of ambient temperature and improve the long-term reliability of all
equipment mounted in the rack space.
Secure the adapters to the rack using M6 or #10-32 screws.
1 2
