To mount the device to a panel, do the following:
1.
2.
3.
RUGGEDCOM RST2228P
Installation Manual, 07/2021, C79000-G8976-1403-13
Secure the mounting adapters to both sides of the chassis.
Mounting Adapter
1
Screw
2

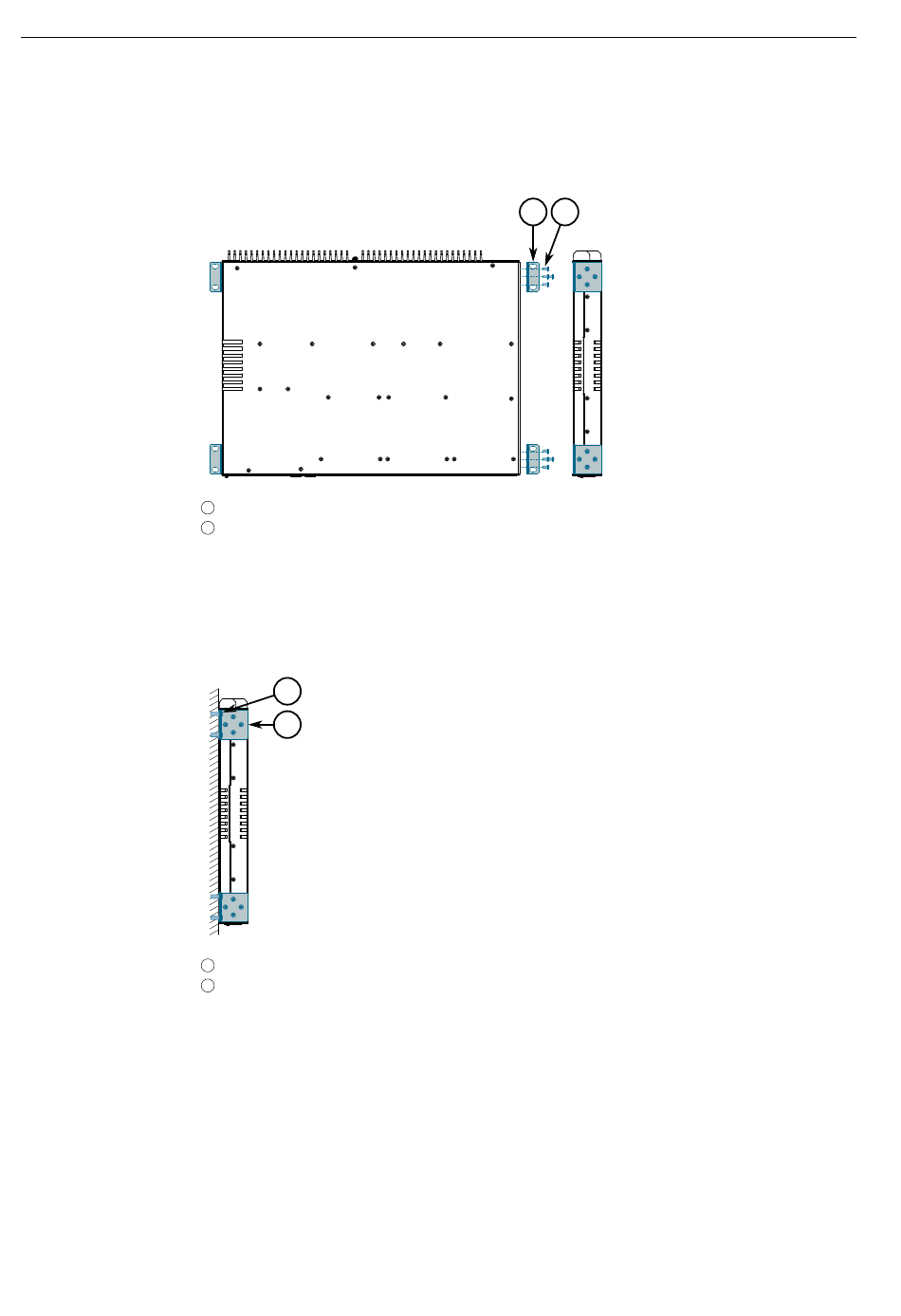

Figure 2.2 Installing the Mounting Adapters
Place the device against the panel and align the adapters with the mounting
holes.
1
2
Screw
1
Panel Adapter
2
Figure 2.3 Panel Mounting
Secure the adapters to the panel with M6 or #10-32 screws.
Installing the Device
2.3.2 Mounting the Device to a Panel
1 2
