2.2 Tools & Parts Required for Installation
Tool
Mounting Bracket
Holster ASSY
Screw
Wire, Copper
Heat Shrink Tube
Terminal
Conduit
Torx Screwdriver
Philips Screwdriver
Hexagon Socket
Torque Wrench

2.3 SIM Card Installation (for IC3 only)

1. Disassemble top cover
1-1 Loosen the screws (x5) on the base cover.
5
Basic/Smart/Intelligent Charger-32A Installation Manual Rev. 4.0
BlinkCharging.com • (888) 998.2546
©2021 Blink Charging Co. • NASDAQ: BLNK
Table 2-1 Tools & parts required for installation
QTY Model Size
1 All 194x109x9 mm
1 All 58x58x70 mm
Tapping: #12
4 All
Mechanical: M6
3 IC3 8 AWG
3 IC3 For 8 AWG wire
3 IC3 For 8 AWG wire
1 IC3 1 inch
1 All T20
1 All PH3
1 All 5/16
1 All 35 kgf-cm min

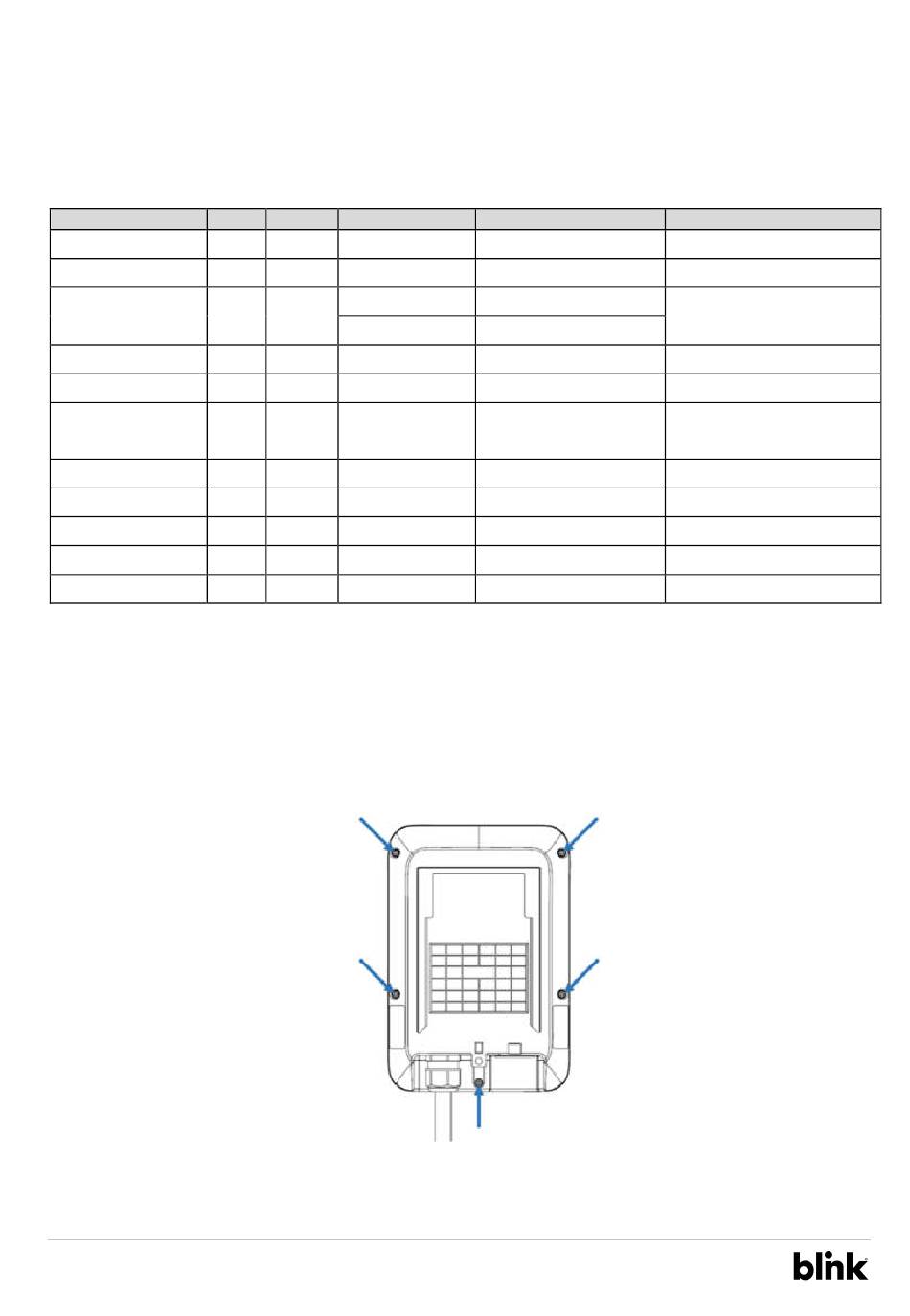

Figure 2-1 Position of five screws on Base Cover
Supplier
Model Accessories
Model Accessories
Model Accessories
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Commercially Available
Remark
Secure the charge point
Hold EV charging plug
Secure Mounting Bracket &
Hook
UL1015 (recommended)
Connect input wires to the
terminal block
Tighten #12 Tapping screws
