Wren FRONTALS INFINITY Attachment Manual page 3

DEEP DRAWER
GALLERY SIDES
9 3/16"
Deep Drawer
4"
2 3/4"
1 1/2"
DRAWER FRONTAL
ADJUSTMENT
Releasing
fixing clip.
Screw point
3 whilst
applying
downward
pressure as
shown to
release.
For Internal Use:50-WKIN00142_INFINITY_DRAWER_ATTACHMENT_GUIDE_Rev1
DEEP DRAWER,
GALLERY SIDES
9 3/16"
4"
2 3/4"
1 1/2"
View on side of drawer side
Screw point 1 as shown
to adjust drawer frontal
right & left.
Screw point 2a
as shown to adjust
drawer frontal up
& down.
Tighten
2b once in
position.
Fixing clip

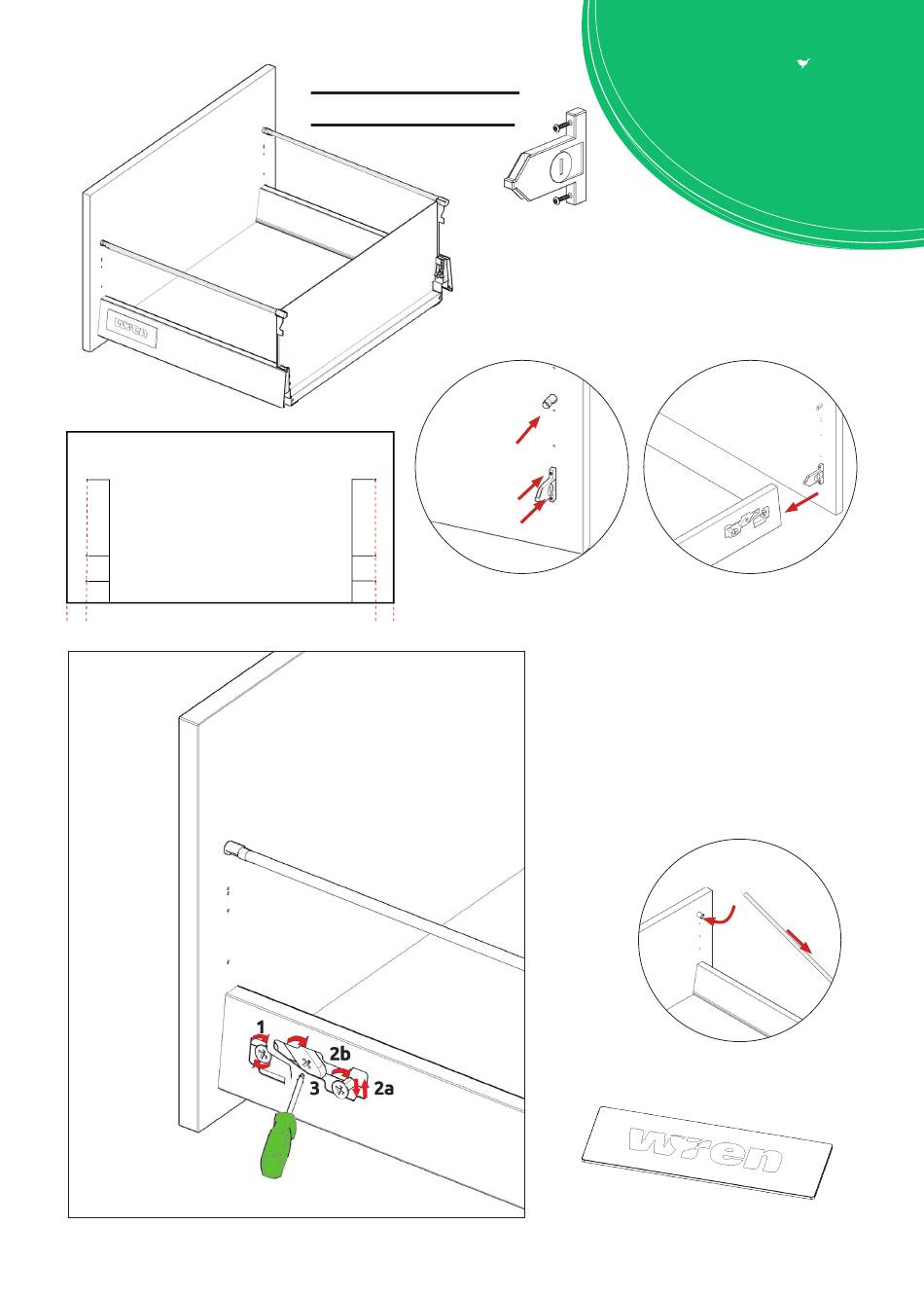

Step 1.
Secure gallery head fixing clips using 1 x 9/16" screw
and secure drawer side fixing clips using
2 x 13/16" screws located with the spiked positions.
Gallery head
fixing clip
Drawer side
fixing clip
Step 2.
push fit drawer fixing clips onto drawer
side.
Step 3.
A. Clip gallery rail into the top corners of
the metal back panel.
B. Locate front end of the gallery rail into
the opening of the gallery head fixing clip,
which is secured to the frontal as shown.
C. Slide cover over Gallery head to lock into
position.
Step 4.
Fit drawer cover caps over drawer side
adjustment.
Drawer Cover Cap
FRONTALS
INFINITY
Attachment
Guide
Drawer
front
Drawer
side
2
1
Page 2
