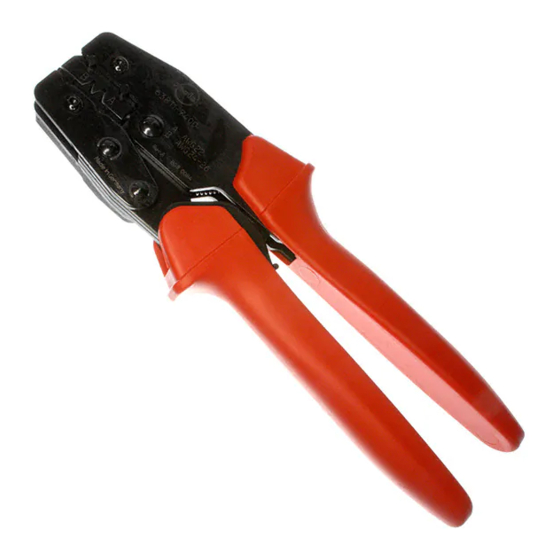

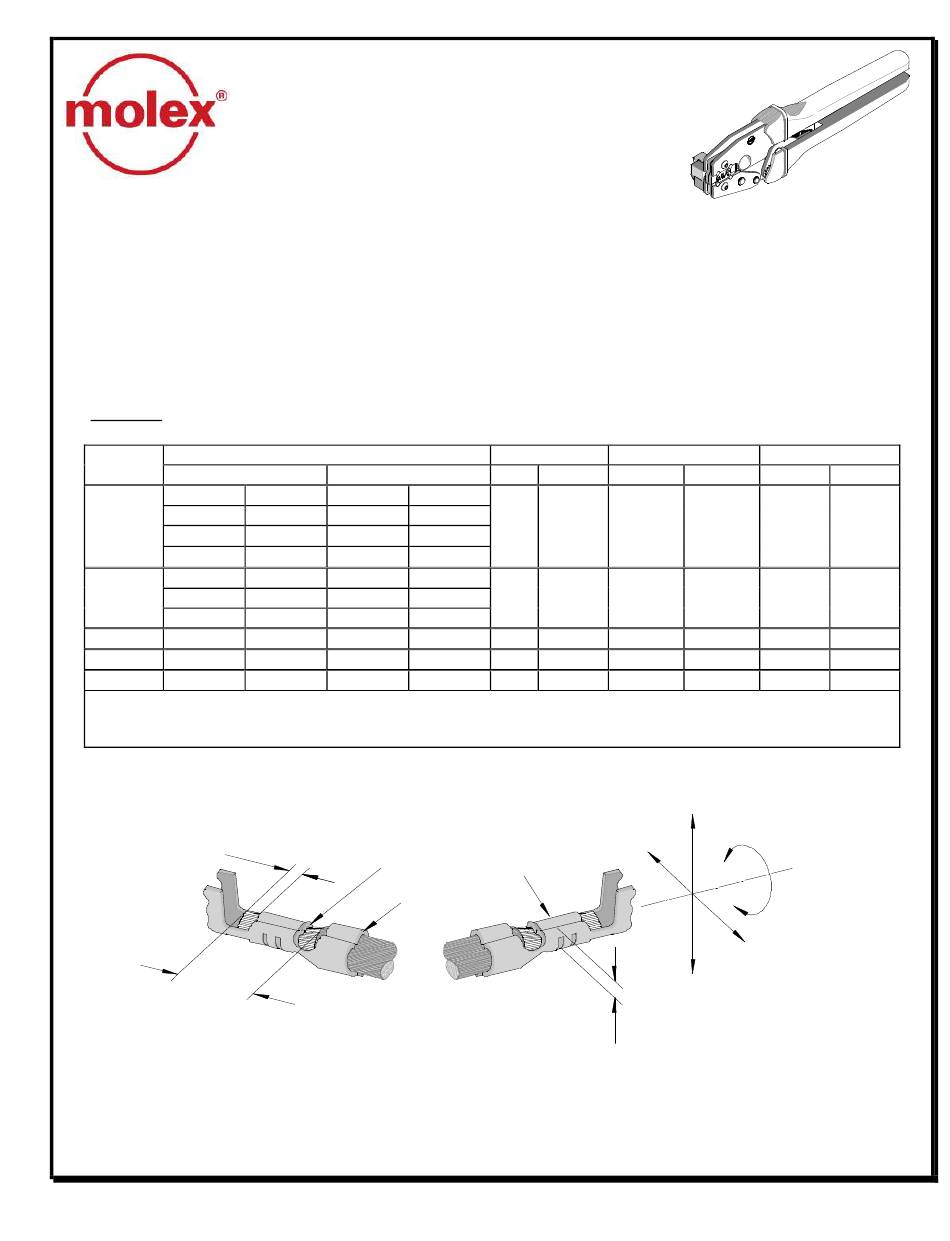

Hand Tool for .093" Pin and Socket Crimp Terminals and Claspcon™ Crimp Terminal Socket
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
SCOPE
Products: .093" Pin and Socket 14-18 AWG and 24-30 AWG and Claspcon™ Crimp Terminal Socket 24-30 AWG
Terminal
Series No.
Loose Piece
02-09-1141 39-00-0318 02-09-1142 39-00-0317
02-09-1144 39-00-0320 02-09-5146 39-00-0319
1433
02-09-5147 39-00-0322 39-00-0315 39-00-0321
39-00-0316
02-09-2143 39-00-0324 02-09-2141 39-00-0325
1434
02-09-6145 39-00-0326 02-09-2149 39-00-0323
1881-3
02-08-1104
42477
42478
02-09-2612
Follow the Cut-Off Tab specifications on Applicator specification sheets. These Terminals in the 1433, 1434, and 1881 series
cannot be removed from the reel by manual cutting. An applicator must be used or the terminals will not function properly.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638117100
Revision: B
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-7100
Terminal Order No.
Reel
02-09-6144
02-08-1103
02-09-1615
02-09-2611
See Conditions on page 2.
BELL MOUTH
INSULATION
CRIMP
Release Date: 02-12-07
Revision Date: 03-28-08
Wire Size
Insulation Diameter
AWG
mm²
mm
24-30 0.20-0.05 0.76-1.52
24-30 0.20-0.05 0.76-1.52
24-30 0.20-0.05 0.76-1.52
14-18 2.00-0.80 2.36-3.55
14-18 2.00-0.80 2.36-3.55
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Strip Length
In.
mm
.030-.060 3.96-5.53 .156-.218
.030-.060 3.96-5.53 .156-.218
.030-.060 3.96-5.53 .156-.218
.093-.140 3.96-5.53 .156-.218
.093-.140 3.96-5.53 .156-.218
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
In.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63811-7100
Summary of Contents for molex 63811-7100
- Page 1 Hand Tool for .093" Pin and Socket Crimp Terminals and Claspcon™ Crimp Terminal Socket HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-7100 TYPE 2C FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping...
- Page 2 Profile C: 2.36-3.14mm (.093-.124 inch) OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing...
- Page 3 Hand Tool for .093" Pin and Socket Crimp Terminals and Claspcon™ Crimp Terminal Socket 3. When using the locator, press down on the wire stop on the locator as shown in Figure 2. Insert the proper terminal into the proper nest opening. Make sure when choosing the nest opening, it will correspond with the A, B, or C profile on the hand tool.
- Page 4 Hand Tool for .093" Pin and Socket Crimp Terminals and Claspcon™ Crimp Terminal Socket Maintenance LUBRICATION POINTS (BOTH SIDES) LIGHT OIL (EVERY 3 MONTHS OR It is recommended that each operator of the tool be made aware 5,000 CRIMPS) of, and responsible for, the following maintenance steps: 1.
- Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 6 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. 630-969-4550 amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638117100 Release Date: 02-12-07 Page 6 of 6 Revision: B Revision Date: 03-28-08...
