molex 63811-7070 Specification Sheet

Tool kit for disk drive power crimp terminals
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

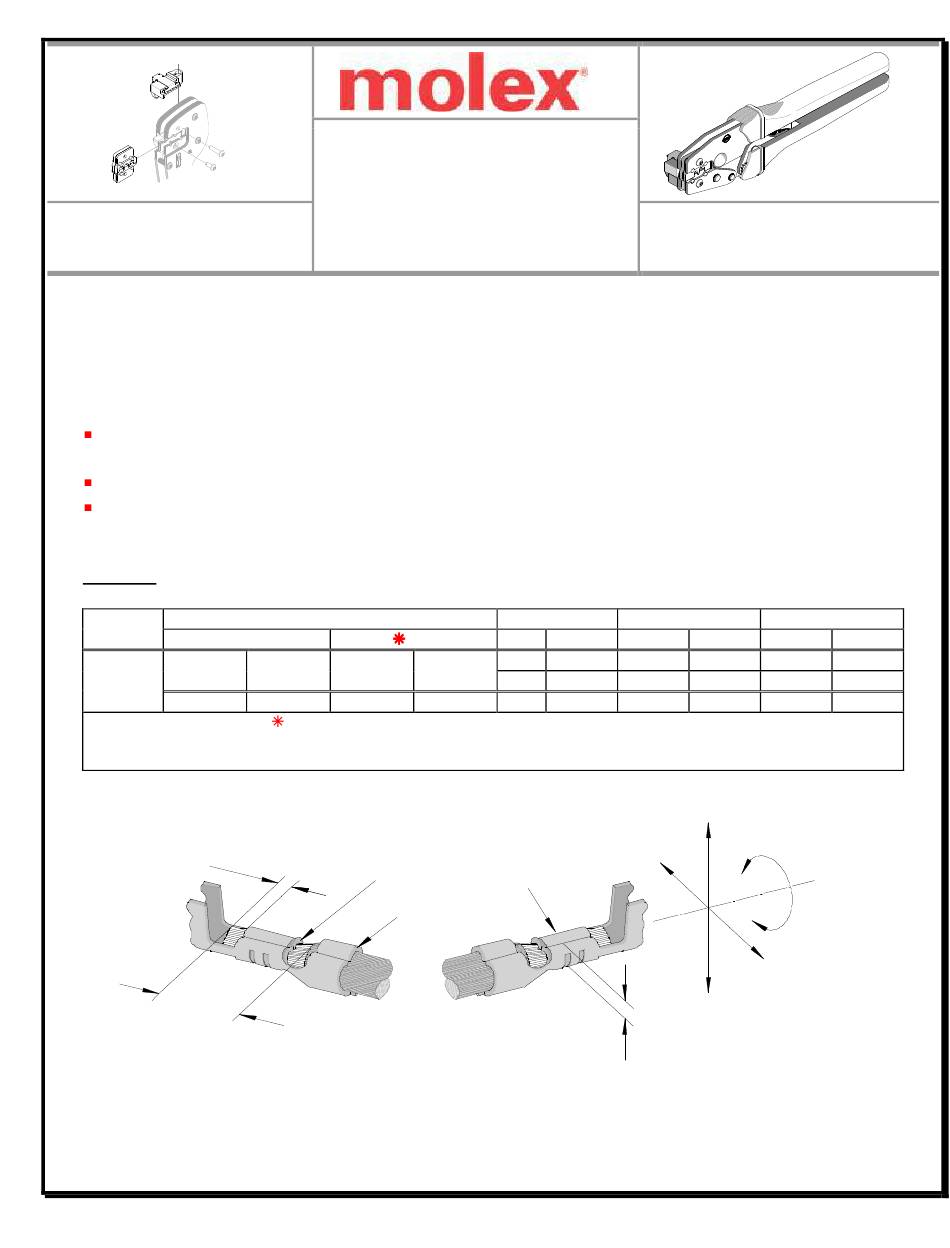

Tool Kit for Disk Drive Power Crimp Terminals
Tool Kit
Order No. 63811-7070
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Disk Drive Power Connection System Crimp Terminal 14-22 AWG.
Terminal
Series No.
Loose Piece
02-08-1202
02-08-1235
8980
02-08-1204 02-08-1337 02-08-1203 02-08-1336 18-22 0.80-0.35 1.52-2.30 .060-.090 4.75-5.54 .187-.218
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381170HM Release Date: 01-19-07
Revision: E
Application Tooling
Specification Sheet
Terminal Order No.
Reel
02-08-1237
02-08-1201
02-08-1334
02-08-1335
02-08-1234
02-08-1236
Follow the Cut-Off Tab specifications on Applicator specification sheets.
These Terminals cannot be removed from the reel by manual cutting.
An applicator must be used or the terminals will not function properly.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Revision Date: 12-05-12
Wire Size
Insulation Diameter
AWG
mm²
mm
14-16 2.00-1.30 2.75-3.56 .109-.140 4.75-5.54 .187-.218
18-20 0.80-0.50 2.00-2.90 .079-.114 4.75-5.54 .187-.218
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63811-7000
Strip Length
In.
mm
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 9
In.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-7070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 63811-7070

Summary of Contents for molex 63811-7070

  • Page 1 Tool Kit for Disk Drive Power Crimp Terminals TYPE 2C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-7070 Order No. 63811-7000 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...

  • Page 2: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Operation

    Tool Kit for Disk Drive Power Crimp Terminals POWER CRIMP HEAD LIFT UP ON THE LOCATOR PUNCHES M4 X 18 LONG BHCS PRESS DOWN ON THE BRASS M4 X 10 LONG PIVOT SHAFT BHCS SWING LOCATOR ANVILS Figure 1 Figure 2 OPEN Locator Installation and Removal Follow the steps below to install or replace the locator.

  • Page 4: Maintenance

    Tool Kit for Disk Drive Power Crimp Terminals 3. When using the locator, press down on the wire stop on the locator as shown in Figure 4. Insert the proper terminal into the proper WIRE STOP nest opening. Make sure when choosing the nest opening, it will WIRE correspond with the A, B, or C profile on the hand tool.
  • Page 5 Tool Kit for Disk Drive Power Crimp Terminals 3. Make certain all pins; pivot points and bearing surfaces are protected with a thin coat of high quality machine oil. Do not oil Figure 7B excessively. The tool was engineered for durability but like any fine piece of equipment it needs cleaning and lubrication for a maximum service life of trouble free crimping.

  • Page 6: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Order No. Description 63810-0100 Hand Crimp Frame (Short) 63810-0400 Hand Crimp Frame (Long) 63811-7070 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head Applications for the Tool Kit Hand Crimp Tool...

  • Page 8: Hand Tool Parts List

    Quantity 63810-0100 Hand Crimp Frame (Short) 63810-0101 Wrench Set (Not included) 63810-0102 Locator Base 63810-0103 Repair Kit (Not included) 63811-7070 Tool Kit with Locator 63811-7075 Locator (only) LOCATOR ONLY WITH TOOL KIT M4 X 6mm LONG BHCS RATCHET RELEASE SCREW...

  • Page 9: Power Head Parts List

    Tool Kit for Disk Drive Power Crimp Terminals POWER HEAD PARTS LIST Item Order No Engineering No. Description Quantity 63816-0300 63816-0300 Power Crimp Head 63811-7070 63811-7070 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com...
