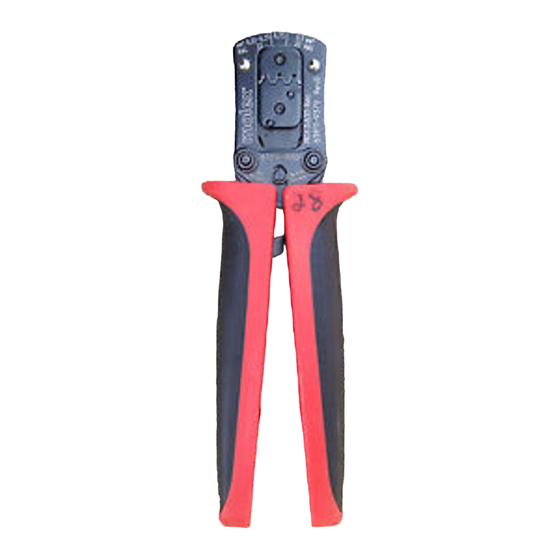

Hand Crimp Tool for MOX 0.635mm (.025") Receptacle Crimp Terminals
Modular Crimp Head
Order No. 63811-9370

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 3 compliant and RoHS compliant
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).

SCOPE

Products: MOX 0.635mm (.025") Receptacle Crimp Terminal, 0.22-0.75mm² and 20-22 AWG.
Terminal
Terminal Order No. Wire Size Actual mm² Wire Type
Series No.
98658
Doc No: ATS-6381193HM
Revision: B
Application Tooling
Specification Sheet
0.22mm²
0.35mm²
22 AWG
98658-1211
98658-1221
0.50mm²
98658-1231
0.50mm²
20 AWG
0.60mm²
98658-1212
0.75 mm²
98658-1222
98658-1232
0.22mm²
0.35mm²
98658-1213
98658-1223
22 AWG
98658-1233
0.50mm²
0.50mm²
Release Date: 08-24-07
Revision Date: 08-03-10
Insulation Diameter
mm
0.22
ID
1.10-1.25 .043-.049 2.60-3.30 .102-.130
0.34
IR
1.25-1.40 .049-.055 2.60-3.30 .102-.130
0.35
TXL
1.40-1.60 .055-.063 2.60-3.30 .102-.130
0.495
ID
1.40-1.50 .055-.059 2.60-3.30 .102-.130
0.495
IR
1.40-1.60 .055-.063 2.60-3.30 .102-.130
0.562
TXL
1.75-1.90 .069-.075 2.60-3.30 .102-.130
0.59
IR
1.75-1.90 .069-.075 2.60-3.30 .102-.130
0.79
ID
1.60-1.80 .063-.071 3.35-3.65 .132-.144
0.22
ID
1.15-1.25 .045-.049 2.60-3.30 .102-.130
0.34
IR
1.25-1.40 .049-.055 2.60-3.30 .102-.130
0.35
TXL
1.40-1.60 .055-.063 2.60-3.30 .102-.130
0.495
ID
1.40-1.50 .055-.059 2.60-3.30 .102-.130
0.495
IR
1.40-1.60 .043-.049 2.60-3.30 .102-.130
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63811-9300
Strip Length
In.
mm
In.
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63811-9370 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for molex 63811-9370

  • Page 1 TYPE 4A Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63811-9370 Order No. 63811-9300 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning...
  • Page 2 Hand Crimp Tool for MOX 0.635mm (.025") Receptacle Crimp Terminals BEND UP DEFINITION OF TERMS SEAM ROLLING STRIP CONDUCTOR LENGTH CRIMP TWISTING BEND DOWN BRUSH INSULATION CRIMP CRIMP HEIGHT The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
  • Page 3 Hand Crimp Tool for MOX 0.635mm (.025") Receptacle Crimp Terminals OPERATION LOCATOR Open the tool by squeezing the handles together, at the end of OPEN HAND TOOL the closing stroke, the ratchet mechanism will release the OPEN handles, and the hand tool will spring open. Crimping Terminals 1.
  • Page 4 Hand Crimp Tool for MOX 0.635mm (.025") Receptacle Crimp Terminals Terminal Locator Replacement/Change Over This section describes the procedure for changing locators. Removal 1. With the tool in the open position, pivot the terminal locator outward. 2. Remove the M4 BHCS. See Figure 4. Installation 1.
  • Page 5 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 6 Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63811-9370 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter 63816-0250 Battery Power Tool (220 V) 63816-0600 Battery Power Crimp Adapter 63816-0100 Air Power Tool...
  • Page 7 Hand Crimp Tool for MOX 0.635mm (.025") Receptacle Crimp Terminals PARTS LIST Hand Crimp Tool 63811-9300 Item Order Number Description Quantity 63811-9370 Modular Crimp Head 63816-0000 Hand Crimp Frame (Short) 63811-9375 Locator-Blue 63816-0001 Locking Pin 63600-0525 Handle Spring 63600-0520 Crimping Spring...
