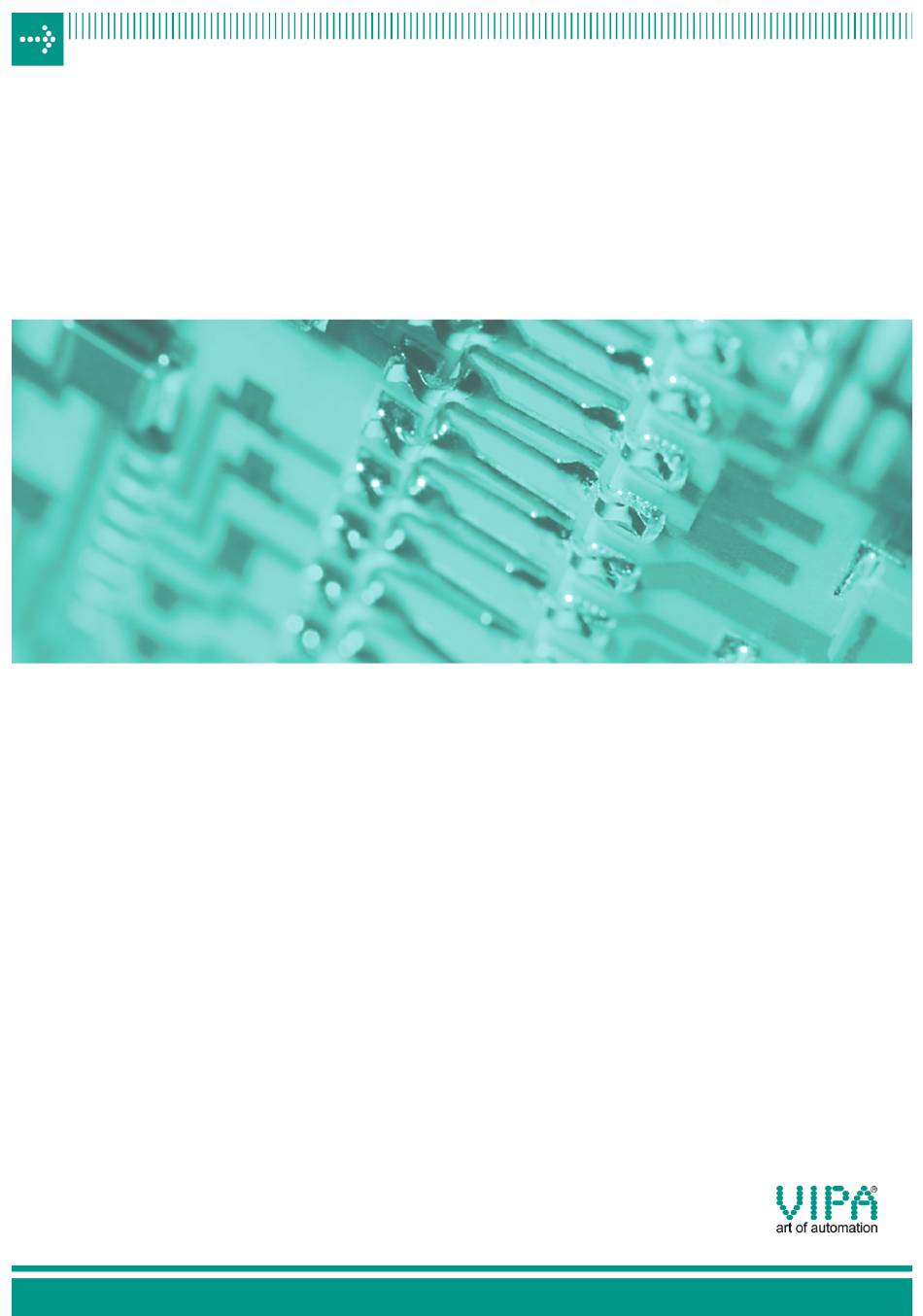

- Page 1 VIPA System SLIO FM | 050-1BB30 | Manual HB300E_FM | RE_050-1BB30 | Rev. 10/30 July 2010...
- Page 2 Copyright © VIPA GmbH. All Rights Reserved. This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agreements. This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written consent of VIPA and the business management owner of the material.
-
Page 3: Table Of Contents
Manual VIPA System SLIO Contents Contents About this manual ..................1 Safety information ..................2 Chapter 1 Basics and Assembly ............. 1-1 Safety Information for Users..............1-2 System conception ................1-3 Dimensions ..................1-6 Installation .................... 1-7 Wiring....................1-11 Trouble shooting - LEDs..............1-14 Installation guidelines ................. - Page 4 Manual VIPA System SLIO Contents HB300E - FM - RE_050-1BB30 - Rev. 10/30...
-
Page 5: About This Manual
Overview Chapter 1: Basics and Assembly The focus of this chapter is on the introduction of the VIPA System SLIO. Here you will find the information required to assemble and wire a controller system consisting of System SLIO components. Besides the dimensions the general technical data of System SLIO will be found. - Page 6 Manual VIPA System SLIO About this manual This manual describes the System SLIO function module 050-1BB30 from Objective and VIPA. contents It contains a description of the construction, project implementation and usage. The manual is targeted at users who have a background in automation Target audience technology.
-
Page 7: Safety Information
Manual VIPA System SLIO Safety information Safety information The System SLIO is constructed and produced for: Applications conforming with • communication and process control specifications • general control and automation applications • industrial applications • operation within the environmental conditions specified in the technical data •... - Page 8 Manual VIPA System SLIO Safety information HB300E - FM - RE_050-1BB30 - Rev. 10/30...
-
Page 9: Chapter 1 Basics And Assembly
Chapter 1 Basics and Assembly Chapter 1 Basics and Assembly The focus of this chapter is on the introduction of the VIPA System SLIO. Overview Here you will find the information required to assemble and wire a controller system consisting of System SLIO components. -
Page 10: Safety Information For Users
Manual VIPA System SLIO Chapter 1 Basics and Assembly Safety Information for Users VIPA modules make use of highly integrated components in MOS- Handling of Technology. These components are extremely sensitive to over-voltages electrostatic that can occur during electrostatic discharges. -
Page 11: System Conception
Manual VIPA System SLIO Chapter 1 Basics and Assembly System conception System SLIO is a modular automation system for assembly on a 35mm Overview mounting rail. By means of the peripheral modules with 2, 4 or 8 channels this system may properly be adapted matching to your automation tasks. - Page 12 Manual VIPA System SLIO Chapter 1 Basics and Assembly Each periphery module consists of a terminal and an electronic module. Periphery modules Terminal module Electronic module Terminal module The terminal module serves to carry the electronic module, contains the backplane bus with power supply for the electronic, the DC 24V power section supply and the staircase-shaped terminal for wiring.
- Page 13 Manual VIPA System SLIO Chapter 1 Basics and Assembly Accessories Shield bus carrier The shield bus carrier serves to carry the shield bus to connect cable shields. Shield bus carriers, shield bus and shield fixings are not in the scope of delivery. They are only available as accessories.
-
Page 14: Dimensions
Manual VIPA System SLIO Chapter 1 Basics and Assembly Dimensions Dimensions bus coupler 76.5 48.5 Dimensions periphery module 76.5 12.9 Dimensions electronic module 12.9 Dimensions in mm HB300E - FM - RE_050-1BB30 - Rev. 10/30... -
Page 15: Installation
Manual VIPA System SLIO Chapter 1 Basics and Assembly Installation Functional principle Mounting There is a locking lever at the top side of the terminal module. For terminal module mounting and de-mounting this locking lever is to turn upwards until this engages audible. - Page 16 Manual VIPA System SLIO Chapter 1 Basics and Assembly The modules were directly be mounted to the mounting rail and so Mounting connected to the backplane bus and the power supply for the electronic Proceeding and power section. Up to 64 modules may be mounted. Please consider here that the sum current of the electronic power supply does not exceed the maximum value of 3A.
- Page 17 Manual VIPA System SLIO Chapter 1 Basics and Assembly • Mounting Mount the periphery modules you want. periphery module Clack • After mounting the whole system, to protect the backplane bus Mounting the connectors the bus cover may now be mounted at the last module...
- Page 18 Manual VIPA System SLIO Chapter 1 Basics and Assembly With the mounting of a SLIO module respectively of a group of SLIO Mounting modules between two modules for mounting reasons you have always to between 2 remove the electronic module of the just mounted right module. After that it modules may be plugged again.
-
Page 19: Wiring
Manual VIPA System SLIO Chapter 1 Basics and Assembly Wiring Standard wiring SysDC5V max. 3A DC24V max. 10A DC24V DC24V [1] DC 24V Power section supply I/O area [2] DC 24V for Electronic power supply bus coupler and I/O area... - Page 20 If the 10A for the power section supply is no longer sufficient, you may use Deployment of the the power module from VIPA with the order number 007-1AB00. So you power modules have also the possibility to define isolated groups.
- Page 21 Manual VIPA System SLIO Chapter 1 Basics and Assembly To attach the shield the mounting of shield bus carriers are necessary. Shield attachment The shield bus carrier (available as accessory) serves to carry the shield bus to connect cable shields.
-
Page 22: Trouble Shooting - Leds
Manual VIPA System SLIO Chapter 1 Basics and Assembly Trouble shooting - LEDs Each module has the LEDs RUN and MF on its front side. Errors or General incorrect modules may be located by means of these LEDs. In the following illustrations flashing LEDs are marked by ☼. -
Page 23: Installation Guidelines
Manual VIPA System SLIO Chapter 1 Basics and Assembly Installation guidelines The installation guidelines contain information about the interference free General deployment of System SLIO. There is the description of the ways, interference may occur in your control, how you can make sure the electromagnetic digestibility (EMC), and how you manage the isolation. - Page 24 Manual VIPA System SLIO Chapter 1 Basics and Assembly In the most times it is enough to take care of some elementary rules to Basic rules for guarantee the EMC. Please regard the following basic rules when installing your PLC.
- Page 25 Manual VIPA System SLIO Chapter 1 Basics and Assembly Electrical, magnetically and electromagnetic interference fields are Isolation of weakened by means of an isolation, one talks of absorption. conductors Via the isolation rail, that is connected conductive with the rack, interference currents are shunt via cable isolation to the ground.
-
Page 26: General Data
Manual VIPA System SLIO Chapter 1 Basics and Assembly General data Conformity and approval Conformity 73/23/EWG Low-voltage directive Approval UL 508 Approval for USA and Canada others RoHs Product is unleaded Protection of persons and device protection Type of protection... - Page 27 Manual VIPA System SLIO Chapter 2 Hardware description Chapter 2 Hardware description In this chapter the counter module 050-1BB30 of the System SLIO is Overview described. Here every information about the hardware components of the module may be found. The technical data are at the end of the chapter.
-
Page 28: Chapter 2 Hardware Description
Manual VIPA System SLIO Chapter 2 Hardware description Properties • 2 counter 32bit (AB) invertible, DC 24V Features • Counting frequency max. 400kHz (AB 1/2/4-fold evaluation or pulse and direction) • Input filter (configurable) • Diagnostics function Order data Type... -
Page 29: Structure
Manual VIPA System SLIO Chapter 2 Hardware description Structure Locking lever terminal module 050-1BB30 Labeling strip Backplane bus LED status indication DC 24V power section supply Electronic module Terminal module Locking lever electronic module Terminal Color Description Status indication green Bus communication is OK ●... - Page 30 Manual VIPA System SLIO Chapter 2 Hardware description For wires with a cross section of 0.08mm up to 1.5mm Pin assignment DC24V Pos. Function Type Description Counter 0: A / pulse Pulse input for counter signal respectively track A of an encoder for 1-, 2- or 4-fold evaluation.
-
Page 31: Technical Data
Manual VIPA System SLIO Chapter 2 Hardware description Technical Data Order number 050-1BB30 Type FM 050 Module ID 08C4 388B Current consumption/power loss Current consumption from backplane bus 75mA Power loss 0.9W Technical data digital inputs Number of inputs Cable length, shielded... - Page 32 Manual VIPA System SLIO Chapter 2 Hardware description Order number 050-1BB30 Status information, alarms, diagnostics Status display Interrupts Process alarm Diagnostic interrupt Diagnostic functions Diagnostics information read-out possible Module state green LED Module error display red LED Channel error display...
- Page 33 Manual VIPA System SLIO Chapter 3 Deployment Chapter 3 Deployment In this chapter the deployment of the System SLIO counter module Overview 050-1BB30 is described. Here every information required for the deployment may be found. Content Topic Page Chapter 3 Deployment ..............
- Page 34 Manual VIPA System SLIO Chapter 3 Deployment Fast introduction Limits Valid range of values Counter range Lower counter limit -2 147 483 648 (-2 Upper counter limit +2 147 483 647 (2 The maximum counter frequency is 400kHz. At CPU, Profibus and ProfiNET the input respectively out area is embedded Address areas to the corresponding address area.
- Page 35 Manual VIPA System SLIO Chapter 3 Deployment CCTRL_I Name Function CCTRL_II 0 ... 1 reserved Control word SW_GATE_SET sets the software gate 3 ... 5 reserved RES_SET resets the bits STS_OFLW, STS_UFLW and STS_ZP with edge 0-1 7 ... 9...
- Page 36 Manual VIPA System SLIO Chapter 3 Deployment In-/Output area The following in-/output areas are used by the 050-1BB30: Overview At CPU, Profibus and ProfiNET the input respectively output area is embedded to the corresponding address area. IX = Index for access via CANopen with s = subindex, depends on number...
- Page 37 Manual VIPA System SLIO Chapter 3 Deployment Parameter data Via parameterization you may define among others: Overview • Input filter • Counter operating mode res. behavior DS = Data set for access via CPU, Profibus and ProfiNET IX = Index for access via CANopen...
- Page 38 Manual VIPA System SLIO Chapter 3 Deployment Counter functions The counters of the 050-1BB30 are continuous counter, whose direction Overview may be preset by the parameterization. The counters serve e.g. for distance measuring with incremental encoder. The activation res. de-activation of the counter happens via an internal gate (I gate).
- Page 39 Manual VIPA System SLIO Chapter 3 Deployment Diagnostic data So this module does not support process interrupts, the diagnostics data Overview serve for information about this module. DS = Record set for access via CPU, Profibus and ProfiNET. The access happens by DS 01h.
- Page 40 Manual VIPA System SLIO Chapter 3 Deployment HB300E - FM - RE_050-1BB30 - Rev. 10/30...
