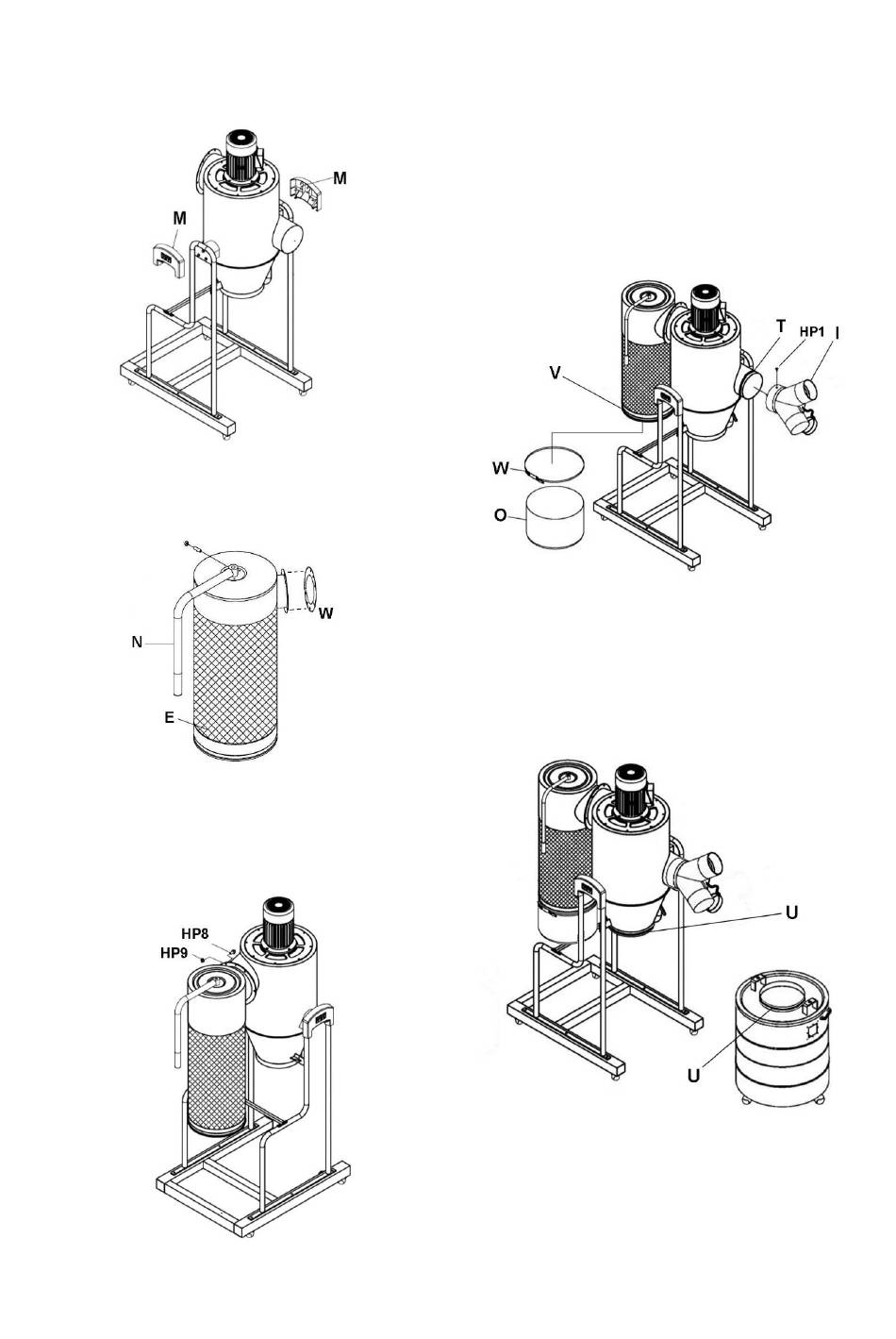

8. Install side cover (M) on left and right stands.
See Figure 7.
Figure 7
9. Assemble handle (N) to canister filter (E) using
set screw and nut. See Figure 8.
Figure 8
10. Place gasket (W) between canister filter and
main housing. Install canister filter onto main
housing, and tighten with flange head screws
(HP8) and nuts (HP9). See Figure 9.
Figure 9
11. Apply foam tape (T) around inlet port near
edge. See Figure 10. The foam tape should
completely encircle the port.
12. Install inlet adaptor (I) on main housing and
secure with pan head screw (HP1).
13. Apply foam tape (V) just above lower lip of
canister filter.
completely encircle the canister filter.
14. Install collection bag (O) to bottom of canister
filter and secure with steel bag clamp (W).
15. Apply foam tape (U) around funnel just above
its bottom edge. See Figure 11. The foam tape
should completely encircle the funnel.
16. Apply foam tape (U) around outside lip of drum
opening. The foam should completely encircle
the lip.
17. Install hose (J) onto cone and drum lid and
secure with two hose clamps (K), at top and
bottom. See Figure 12.
11
The foam tape
Figure 10
Figure 11
should
