4.3 Tools required for assembly

Hex keys, 4mm and 5mm (provided)
Open-end wrench, 10/12mm (provided)
Cross-point (Phillips) screwdriver

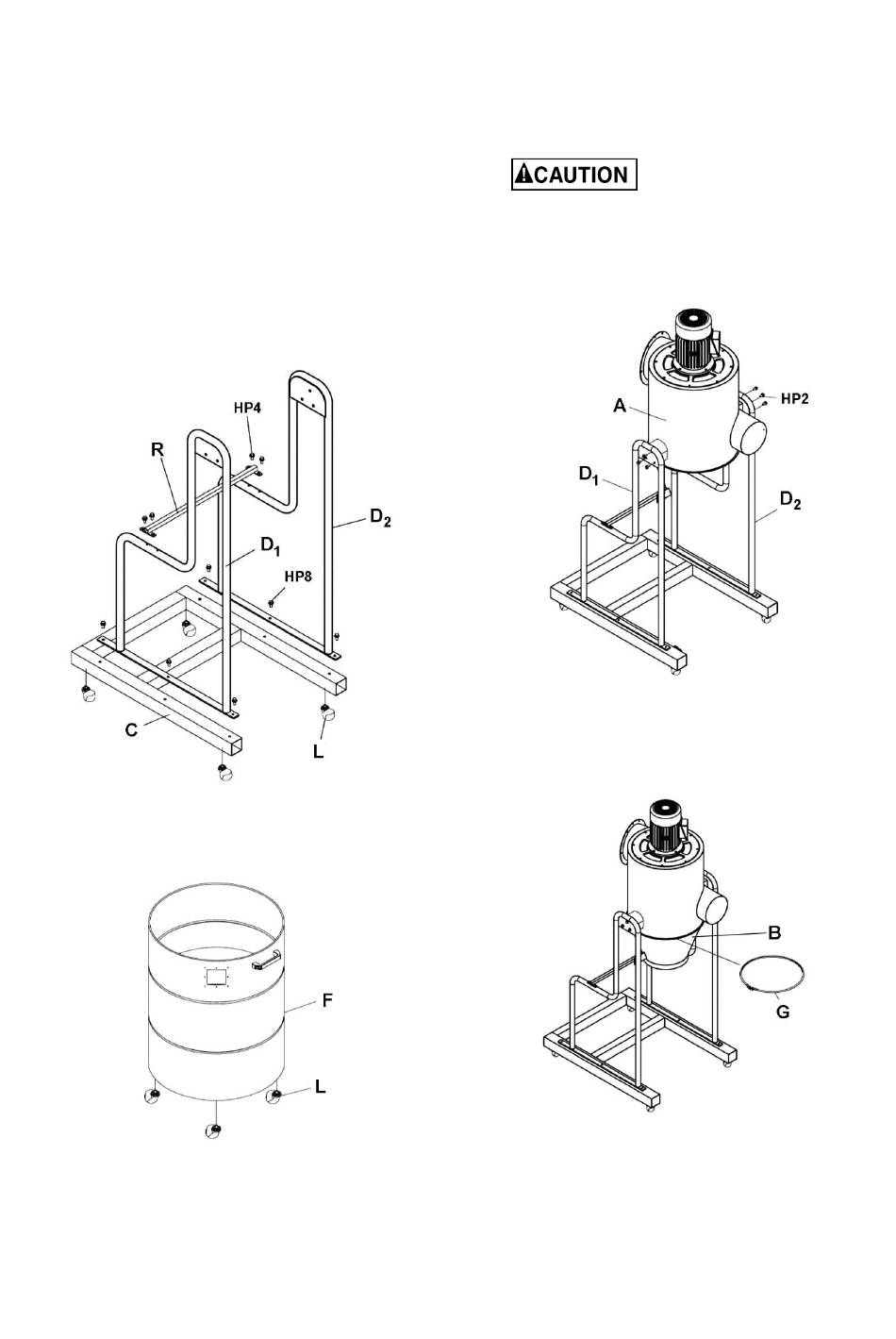

4.4 Assembly
1. Install four casters (L) to base (C). See Figure
3.
2. Install left and right stands (D
with flange head screws (HP8).
3. Install stand support (R) to base (C) with
flange head screws (HP4).
Figure 3
4. Install four casters (L) into the threaded nuts
beneath drum (F). See Figure 4.
Figure 4
,D ) to base (C)
1 2
10
5. Lift main housing (A) using hoist with straps
through lifting rings atop main housing. If hoist
is not available, at least 2 persons must lift
housing.
Two-person lift, or use hoist.
6. Position main housing (A) between left and
right stands (D ,D ), and secure with six flange
1 2
head screws (HP2). See Figure 5.
Figure 5
7. Install funnel (B) beneath main housing.
Secure with funnel clamp (G). See Figure 6.
Tighten screw on funnel clamp securely.
Figure 6
Main housing is heavy.
