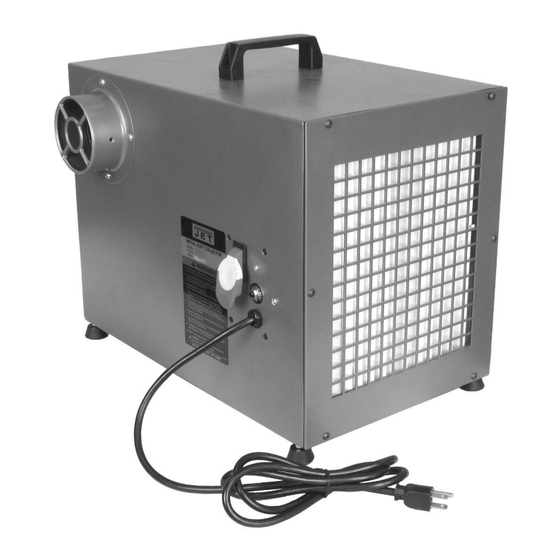

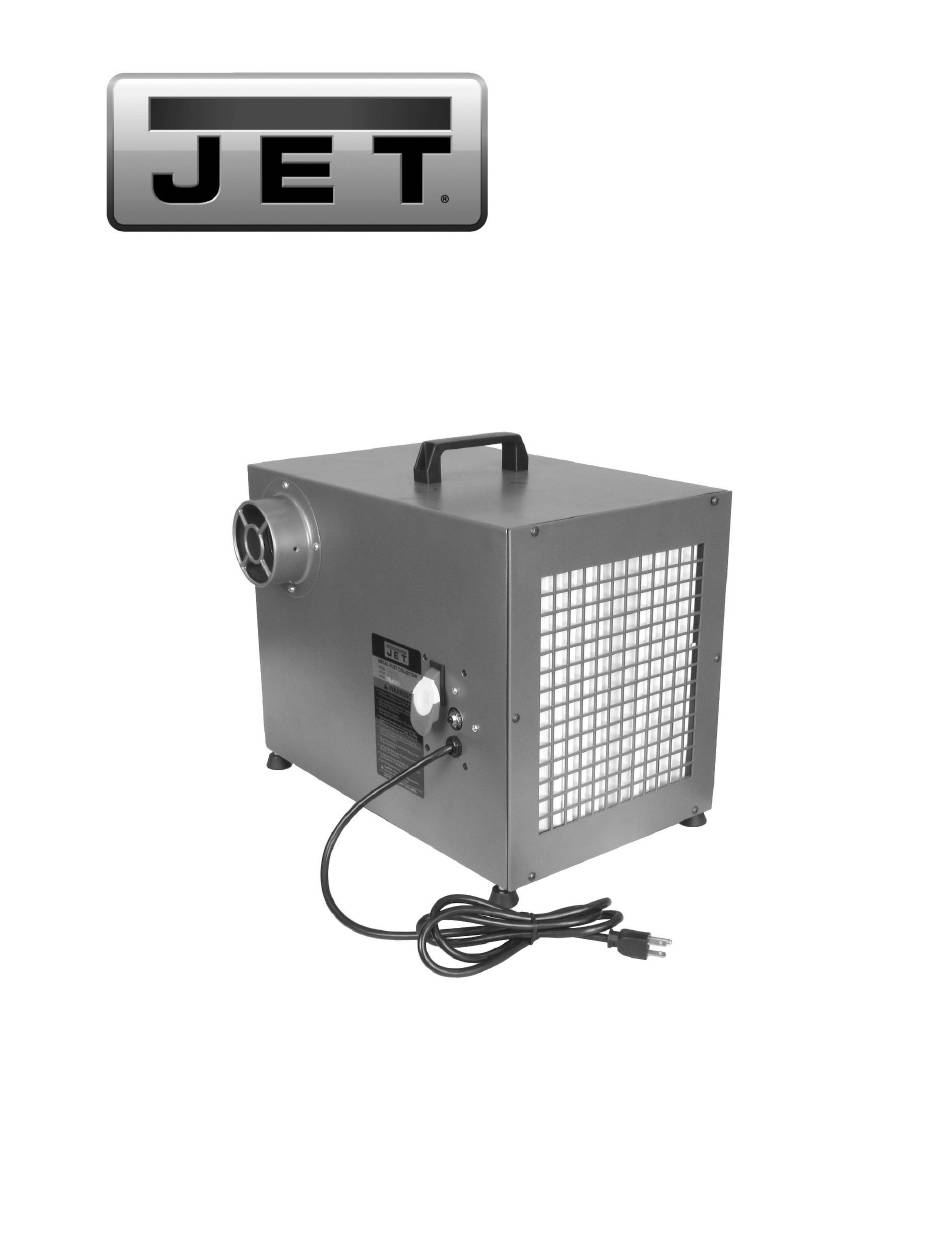

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Bench Metalworking Dust Collector Model JDC-500B 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414850 Ph.: 800-274-6848 Edition 1 11/2020 www.jettools.com Copyright © 2020 JET...
-
Page 2: Important Safety Instructions
Do not use this metal dust collector for other than 21. Turn off the machine before cleaning. Use a brush its intended use. If used for other purposes, JET or vacuum to remove chips or debris — do not use disclaims any real or implied warranty and holds bare hands. - Page 3 WARNING: This product can expose you to chemicals including lead and cadmium which are known to the State of California to cause cancer and birth defects or other reproductive harm, and phthalates which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
-
Page 4: Table Of Contents
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Specifications
4.0 Specifications Model number JDC-500B Stock number 414850 Motor and electricals Motor type totally enclosed industrial Horsepower 1/3 HP (0.25 kW) Motor phase single Motor voltage 115V Cycle 60 Hz Listed FLA (full load amps) 3.6A Run capacitor 10F 350VAC... -
Page 6: Setup And Assembly
5.4 Assembly Read and understand the Release drawer by turning knob counter- entire contents of this manual before attempting clockwise (see Figure 5-1) and remove the assembly or operation. Failure to comply may packages from the drawer. Close drawer and cause serious injury. -
Page 7: Electrical Connections
2-pole receptacle as shown in B if a properly grounded outlet is not available. The The JDC-500B Dust Collector is rated at 115-volt temporary adapter should be used only until a only, and is provided with a 5-15P plug designed for... -
Page 8: User-Maintenance
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 9: Jdc-500B Bench Dust Collector - Exploded View
10.1 JDC-500B Bench Dust Collector – Exploded View... -
Page 10: Jdc-500B Bench Dust Collector - Parts List
39 ....JDC500B-39 ....Foam Strip ............... L282 x W10 x T2 /mm ... 2 40 ....JDC500B-40 ....Dust Collection Drawer .................. 1 41 ....JDC-500030 ....Drawer Handle ....................1 ....JDC500B-ID ....ID/Warning Label, JDC-500B (not shown) ............ 1... -
Page 11: Electrical Connections For Jdc-500B
11.0 Electrical Connections for JDC-500B... -
Page 12: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...
