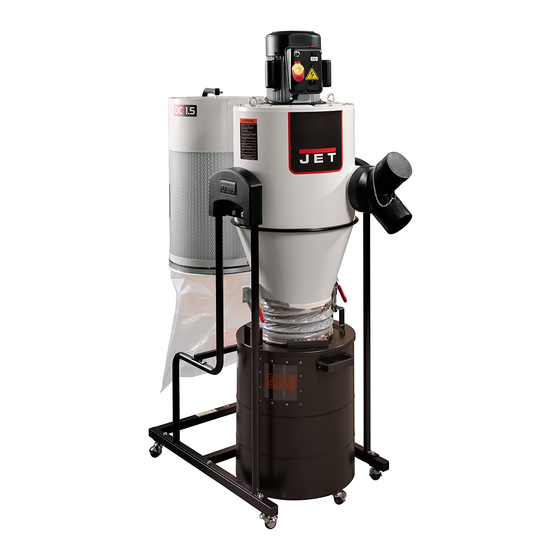

Jet JCDC-1.5 Operating Instructions And Parts Manual
1.5hp mobile cyclone dust collector
Hide thumbs
Also See for JCDC-1.5:
- Operating instructions manual (60 pages) ,
- Operating instructions manual (16 pages)
Table of Contents
Advertisement
This .pdf document is bookmarked

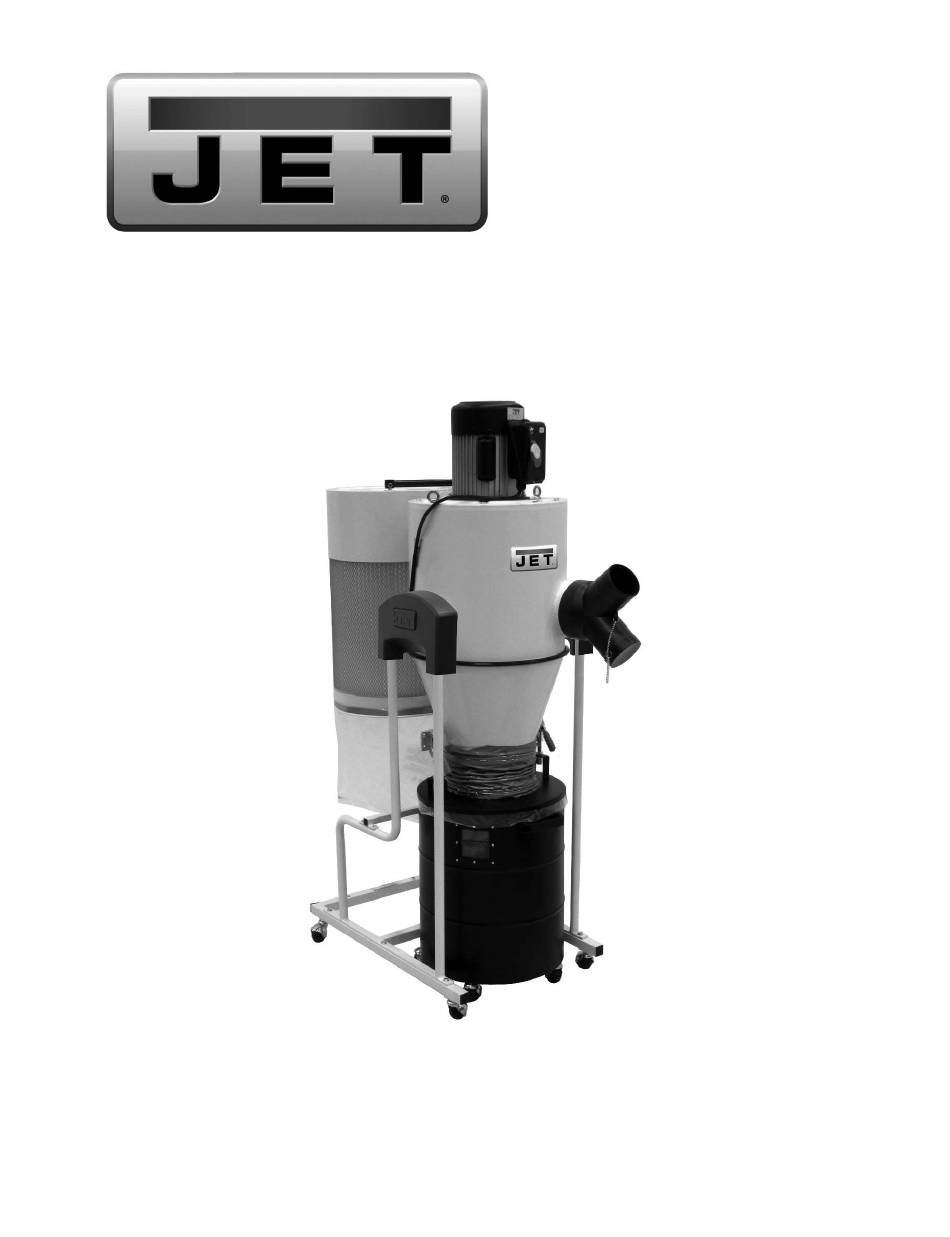

Operating Instructions and Parts Manual
1.5HP Mobile Cyclone Dust Collector
Model JCDC-1.5
For serial no. 17071400 and higher.
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-717515
Ph.: 800-274-6848
Edition 5 09/2018
www.jettools.com
Copyright © 2017 JET
Advertisement
Table of Contents
Related Manuals for Jet JCDC-1.5
Summary of Contents for Jet JCDC-1.5
- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 1.5HP Mobile Cyclone Dust Collector Model JCDC-1.5 For serial no. 17071400 and higher. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-717515 Ph.: 800-274-6848 Edition 5 09/2018 www.jettools.com Copyright © 2017 JET...
-
Page 2: Important Safety Instructions
“horse- Do not use this dust collector for other than its play” are careless acts that can result in serious intended use. If used for other purposes, JET injury. disclaims any real or implied warranty and holds 21. -
Page 3: About This Manual
Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments about this product, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
10.1 Electrical and motor problems ........................ 13 10.2 Performance problems ........................... 14 11.0 Replacement Parts ............................. 14 11.1.1 JCDC-1.5 Cyclone Dust Collector – Exploded View ................15 11.1.2 JCDC-1.5 Cyclone Dust Collector – Parts List ..................16 12.0 Electrical Connections – JCDC-1.5 ......................18... -
Page 5: Specifications
4.0 Specifications Model number ............................JCDC-1.5 Stock number .............................. 717515 Motor and electricals: Motor type ................ .totally enclosed fan cooled, induction, capacitor start Horsepower ..........................1-1/2 HP (1.1kW) Phase ................................single Voltage ..............................115V only Cycle ................................60Hz Listed FLA (full load amps) ........................... 14 A Starting amps .............................. - Page 6 Shipping weight, approximate ....................176 lb. (79.8 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.
-
Page 7: Setup And Assembly
Do not discard carton or packing material until dust collector is assembled and running satisfactorily. 5.2 Shipping contents – JCDC-1.5 Main carton (see Figure 1) Main housing – A Funnel – B Base –... -
Page 8: Tools Required For Assembly
Lift main housing (A) using hoist with straps 5.3 Tools required for assembly through lifting rings atop main housing. If hoist is not available, at least 2 persons must lift Hex keys, 4mm and 5mm (provided) housing. Open-end wrench, 10/12mm (provided) Cross-point (Phillips) screwdriver Main housing is heavy. - Page 9 Install side cover (M) on left and right stands. 11. Apply foam tape (T) around inlet port near edge. See Figure 7. See Figure 10. The foam tape should completely encircle the port. 12. Install inlet adaptor (I) on main housing and secure with pan head screw (HP1).
-
Page 10: Electrical Connections
(HP10,HP11). (Note: The bends on long supports point inward as shown.) The JCDC-1.5 Dust Collector is rated at 115-volt power only. The dust collector comes with a plug designed for use on a circuit with a grounded outlet that looks like the one pictured in A, Figure 15. -
Page 11: Extension Cords
depending on cord length and nameplate ampere Improper connection of the rating. If in doubt, use the next heavier gauge. The equipment-grounding conductor can result in a smaller the gauge number, the heavier the cord. risk of electric shock. Check with a qualified electrician or service person if you are in doubt Ampere Total length of... -
Page 12: Remote Controller
7.2 Remote controller Contact your nearest JET distributor for a line of Dust Collector hoses and accessories. You can The RF (radio frequency) remote controller operates customize your installation and obtain maximum on one 9 volt battery (included). The battery will performance with dust hoods, hoses, clamps, need replacing periodically. -
Page 13: Optional Accessories
9.0 Optional accessories Part no. Description 717511 Canister collection bag for JCDC (package of 5) 717516 Drum collection bag for JCDC-1.5 (package of 5) Table 2 10.0 Troubleshooting the JCDC-1.5 10.1 Electrical and motor problems Symptom Possible Cause Correction* Motor will not start. -
Page 14: Performance Problems
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 15: Jcdc-1.5 Cyclone Dust Collector - Exploded View
11.1.1 JCDC-1.5 Cyclone Dust Collector – Exploded View... -
Page 16: Jcdc-1.5 Cyclone Dust Collector - Parts List
31-5 ... JCDC1.5-31-5 ... Bag Frame Support -Short ........7mm ......3 32 ....717516 ...... Drum Collection Bag for JCDC-1.5 (pkg. of 5)..700 x 660 /mm ....1 33 ....JCDC1.5-33 ....Clamp ..............Dia. 420 mm ....1 34 .... - Page 17 Index No Part No Description Size 38 ....JCDC1.5-38 ....Hose Clamp ............. 10-1/2” ......2 39 ....JCDC1.5-39 ....Hose ................ Dia.10” ......1 40 ....JCDC1.5-40 ....Collection Drum Lid ..................1 41A .... JCDC1.5-41A .... Collection Drum Assembly (#30,41 thru 46) ..........1 41 ....
-
Page 18: Electrical Connections - Jcdc-1.5
12.0 Electrical Connections – JCDC-1.5... -
Page 19: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
