9.9

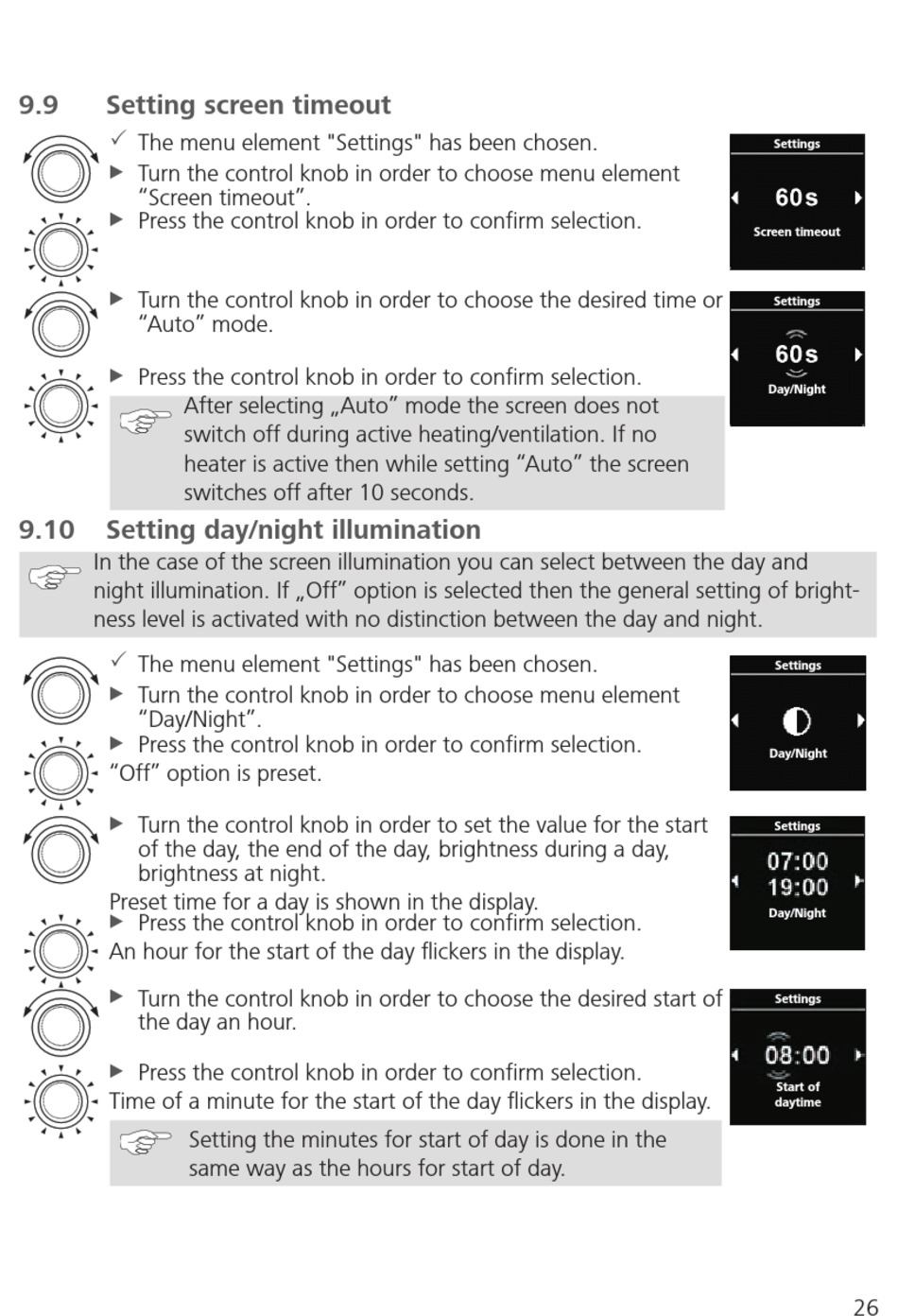

Setting screen timeout

3
The menu element "Settings" has been chosen.
Turn the control knob in order to choose menu element
X X
"Screen timeout".
Press the control knob in order to confirm selection.
X X
Turn the control knob in order to choose the desired time or
X X
"Auto" mode.
Press the control knob in order to confirm selection.
X X
After selecting „Auto" mode the screen does not
switch off during active heating/ventilation. If no
heater is active then while setting "Auto" the screen
switches off after 10 seconds.
9.10

Setting day/night illumination

In the case of the screen illumination you can select between the day and
night illumination. If „Off" option is selected then the general setting of bright-
ness level is activated with no distinction between the day and night.
3
The menu element "Settings" has been chosen.
Turn the control knob in order to choose menu element
X X
"Day/Night".
Press the control knob in order to confirm selection.
X X
"Off" option is preset.
Turn the control knob in order to set the value for the start
X X
of the day, the end of the day, brightness during a day,
brightness at night.
Preset time for a day is shown in the display.
Press the control knob in order to confirm selection.
X X
An hour for the start of the day flickers in the display.
Turn the control knob in order to choose the desired start of
X X
the day an hour.
Press the control knob in order to confirm selection.
X X
Time of a minute for the start of the day flickers in the display.
Setting the minutes for start of day is done in the
same way as the hours for start of day.
Settings
Screen timeout
Settings
Day/Night
Settings
Day/Night
Settings
Day/Night
Settings
Start of
daytime
26
