EVAL-M1-CTE620N3 main features

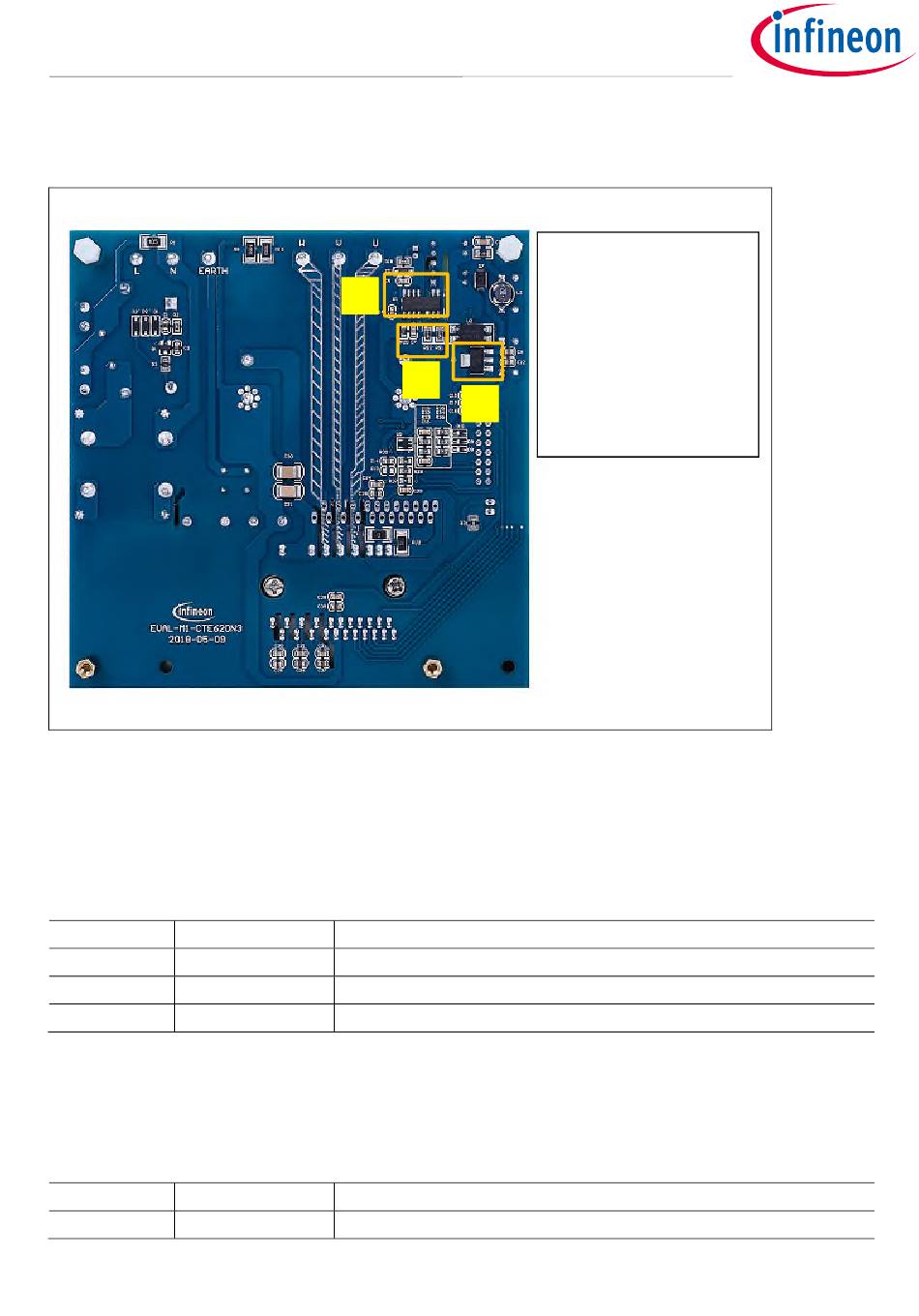

Figure 4 points out the functional groups on the bottom side of the EVAL-M1-CTE620N3 evaluation board.
Figure 4 Functional groups of the EVAL-M1-CTE620N3 evaluation board's bottom side
3.2

Pin assignment

General information about the connectors of the EVAL-M1-CTE620N3 evaluation board is reported. Table 3
includes the details of the AC input connector J1.
Table 3 J1- AC Line connector
S. No. Pin
1 Line
2 Neutral
3 Earth
Table 4 provides the pin assignments of the 20 pins iMOTION™ MADK-M1 interface connector J2. This connector
is the interface to the controller board.
Table 4 J2 - iMOTION™ MADK-M1 20 pin interface connector for controller board
Pin Name
1 PWMUH
User Manual
11
12
13
Details
AC line input
AC neutral input
Earth ground
Pin Name Connectors
3.3 V compatible logic input for high side gate driver-Phase U
9 of 37
11. ICE5GR4780AG U1
12. Auxiliary power supply
Current sensing shunt
resistor RS1, RS2
13. IFX1117MEV33H U3
