Inverter Overcurrent protection and Motor Gatekill configuration

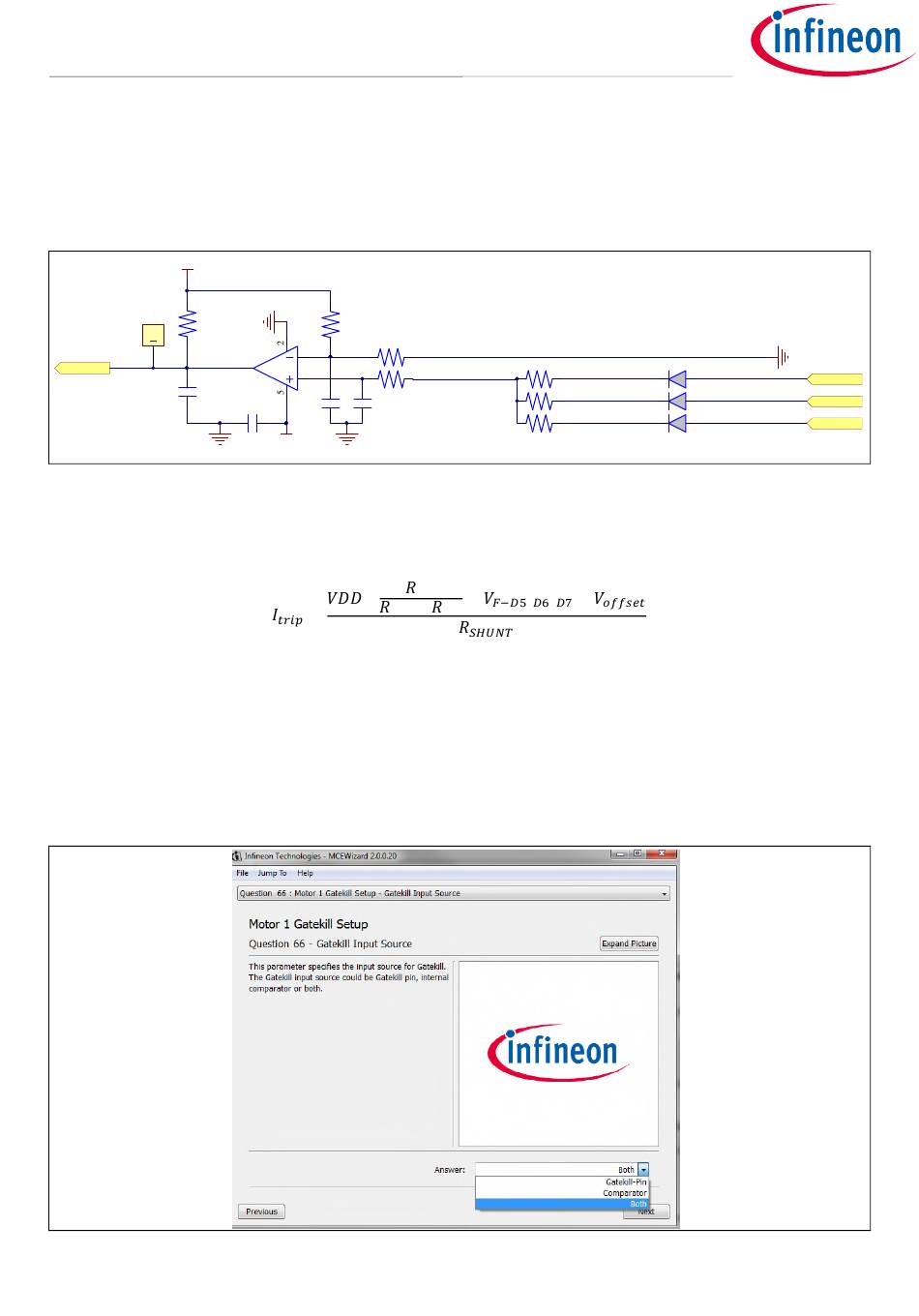

Figure 17 displays the overcurrent protection circuitry. The current sensing signal I_Shunt is connected to ITRIP
via through the comparator U5, and ITRIP is filtered through capacitor C23.
+3.3V
1Kohm 1/8W 5%
R28
ITRIP
ITRIP
C13
DNI
GND
Figure 17 Overcurrent protection circuit on the EVAL-M1-CTE620N3 evaluation board
The typical value of ITRIP positive going threshold V
14.7Apeak.
If the motor peak current larger than the setting value I
trigger low which is mean that the signal Gatekill is active. For iMOTION™ IMC1xx control IC, there are three
types of Gatekill Input Source (as shown in Figure 18). For Gatekill Input Source configured Gatekill-Pin or Both,
iMOTION™ control IC will stop the Motor when the signal GateKill is active.
But please note that, if select comparator for Gatakill Input Source, the external Gatakill signal will be not used.
And the current sensing signal I_Shunt will be compared by the internal comparator with the "Gatekill
Comparator Reference" value set in MCEWizard only.
Figure 18 Gatekill configuration in MCEWizard for EVAL-M1-101T
