EVAL-M1-CTE620N3 User Manual
iMOTION™ Modular Application Design Kit
EVAL-M1-CTE620N3 main features

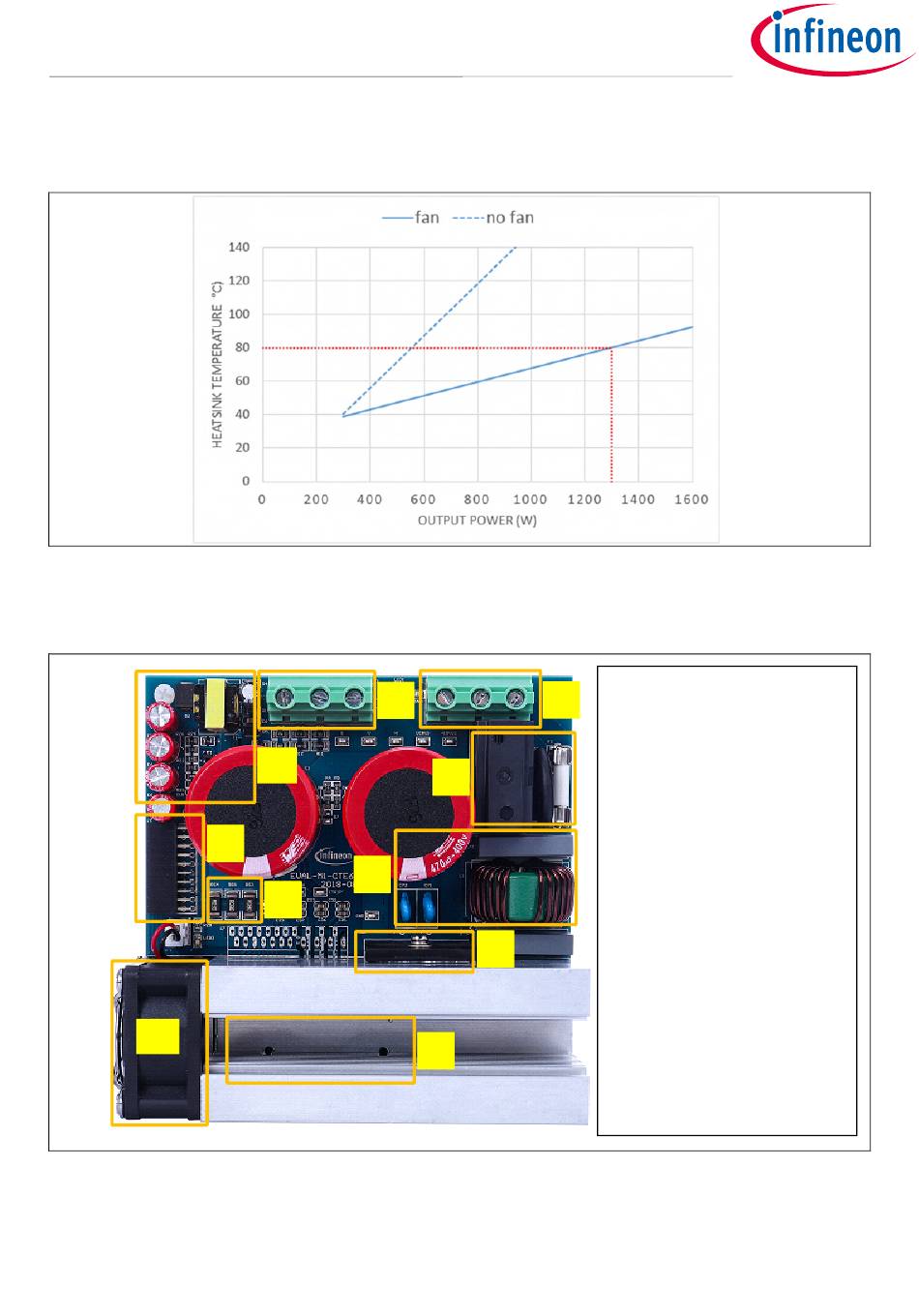

Figure 2 Show the relationship between Output Power and Heatsink Temperature.
Figure 2
The relationship between Output Power and Heatsink Temperature
Figure 3 points out the functional groups on the top side of the EVAL-M1-CTE620N3 evaluation board.
6
10
Figure 3
Functional groups of the EVAL-M1-CTE620N3 evaluation board's top side
User Manual
2
9
4
7
8
8 of 37
1. J1 - AC Input connector
1
2. J3 - Motor phase connector
3. Relay/NTC and FUSE
4. EMI filter
5. Rectifier Bridge
3
6. J2 - 20 pin iMOTION™ MADK-
7. Current sensing shunt
8. CIPOS™ Tiny IPM U6 (DIP)
9. T1-Auxiliary power supply
5
10. Fan
M1 interface connector for
controller board
resistor RS3, RS4, RS5
transfomer
Revision 1.0
2018-08-23
